• Model NO.：Jay-120
• Max Pressure：100kpa
• Max.Flow：8 Liters,Minute
• Low Battery Voltage Reminding：Yes
• Power off Automatically：in 15 Minutes Without Singnal
• LCD Purity Display,：Between 21.0-99.9%
• Transport Package：Standard Carton Box
• Specification：CE&ISO
• Trademark：LONGFIAN
• Origin：Hebei, China
• HS Code：90192000
• Production Capacity：50, 000PCS,Month

Basic Info.

Model NO. Jay-120 Max Pressure 100kpa Max.Flow 8 Liters/Minute Low Battery Voltage Reminding Yes Power off Automatically in 15 Minutes Without Singnal LCD Purity Display, Between 21.0-99.9% Transport Package Standard Carton Box Specification CE&ISO Trademark LONGFIAN Origin Hebei, China HS Code 90192000 Production Capacity 50, 000PCS/Month

Product Description

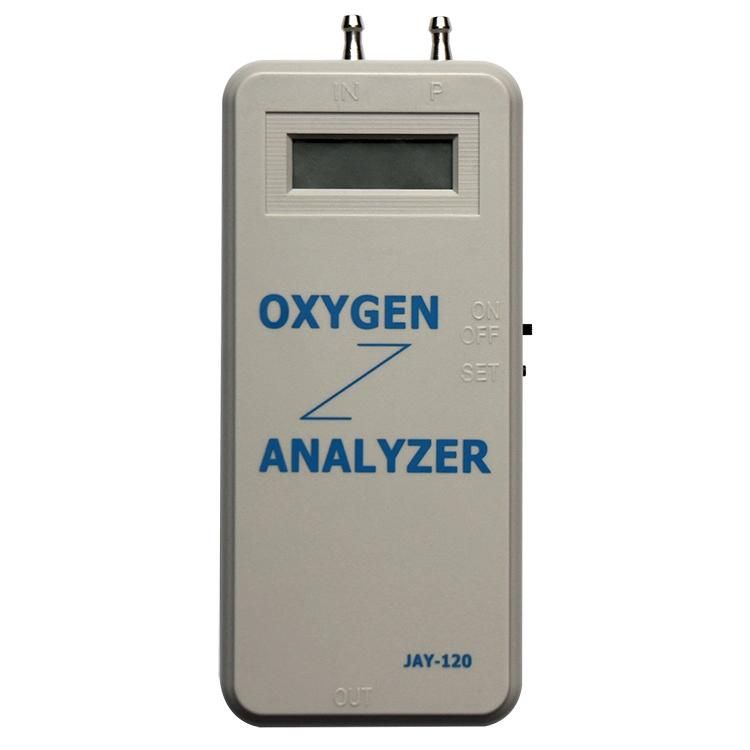

High quality Oxygen Analyzer Jay-120 1.The oxygen analyzer is specially used for detecting the concentration of oxygen generated by molecular sieve oxygen concentrator. 2.The oxygen measurement we offer has high sensitivity. 3. Due to stable quality, our oxygen analyzer instrument can last over 5 years.

Model	JAY-120
Concentration Indication Range	21.0 % ~96.0 %
Measurement Accuracy	+/-2% F.S.
Operating Ambient Temperature	5~40 ºC
Operating Ambient Humidity	< 90%
Response Time	8s
Overall Dimension	83mm×31mm×190mm
Battery Model	6F22/9V tandem battery
Weight	250g with battery, 205g witout battery
Max. Pressure	60PSI
Max. Flow	10L/min

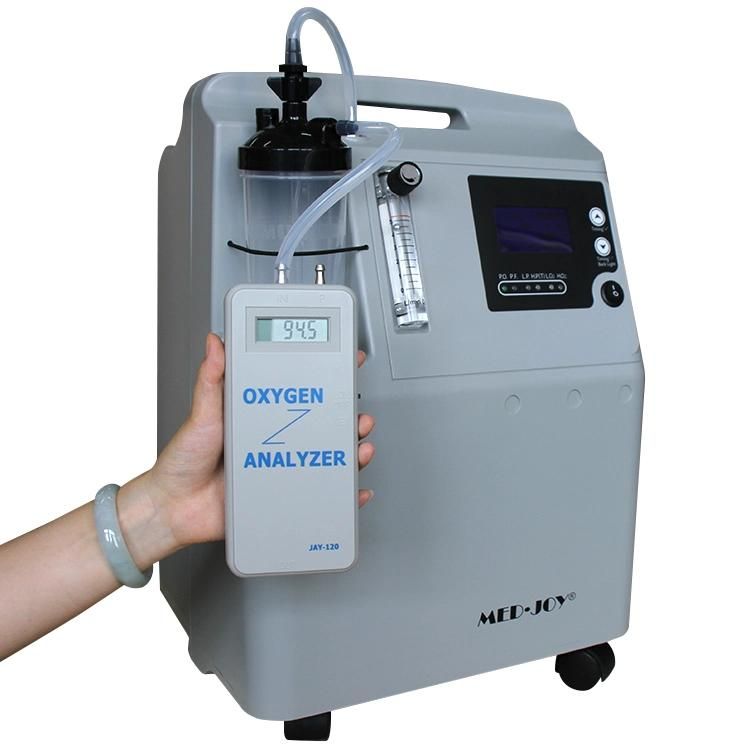

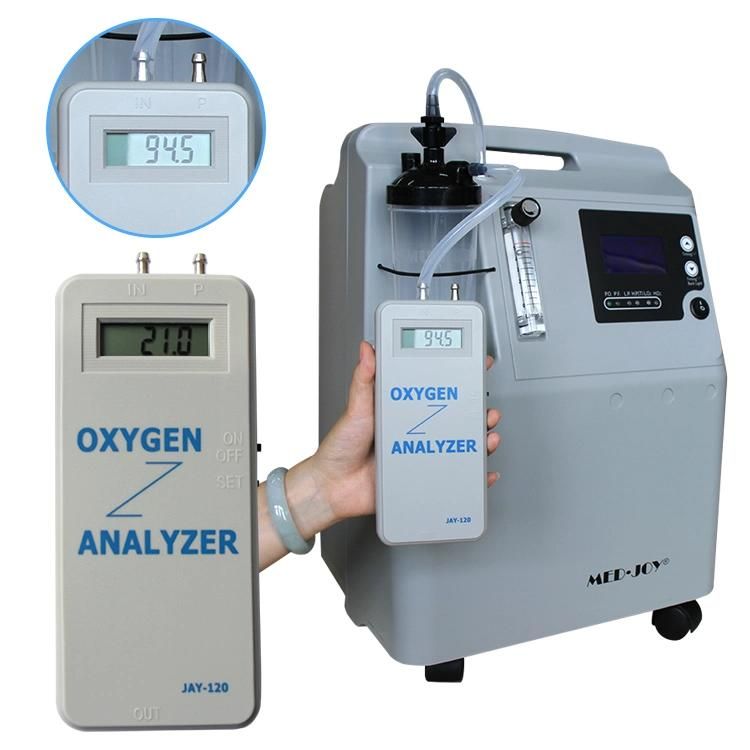

In order to monitor oxygen concentration more economically and easily, we develop JAY-120 digital hand-held oxygen analyzer fo monitoring the oxygen concentration fo various of various oxygen concentator. JAY-120 is characterized by its smart design, stable reliability, convenient use, higher accuracy and a very long service life. When use it, just connect the analyzer with the oxygen output, then the LCD screen will display the curren oxygen concentration.


Longfian Scitech Co., Ltd was established in year 2005, located in Power valley pioneer park, NO.369 Huiyang street , 071051,Baoding, Hebei Province,China, is a professional manufacturer, specialized in the development, production and export of medical serial oxygen concentrators and related products.
