• Model NO.：MS-T60
• Spectrometer Detector：SDD
• Stationary Phase：Solid Adsorbent
• Mobile Phase：Liquid
• Chromatography Type：Liquid Chromatography
• Chromatographic Column Type：Narrow Bore Column
• Chromatographic Column Length：10~30cm
• Chromatographic Column Diameter：20~40mm
• Transport Package：1 Piece in a Box
• Specification：390*310*640mm
• Trademark：customized
• Origin：China
• HS Code：9018193010
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. MS-T60 Spectrometer Detector SDD Stationary Phase Solid Adsorbent Mobile Phase Liquid Chromatography Type Liquid Chromatography Chromatographic Column Type Narrow Bore Column Chromatographic Column Length 10~30cm Chromatographic Column Diameter 20~40mm Transport Package 1 Piece in a Box Specification 390*310*640mm Trademark customized Origin China HS Code 9018193010 Production Capacity 1000PCS/Year

Product Description

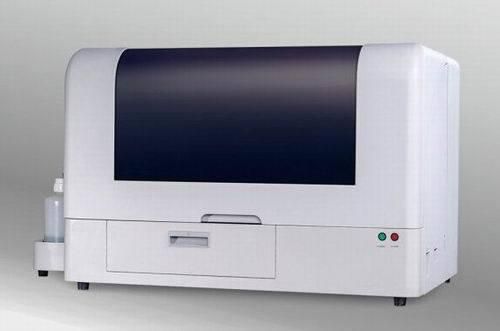

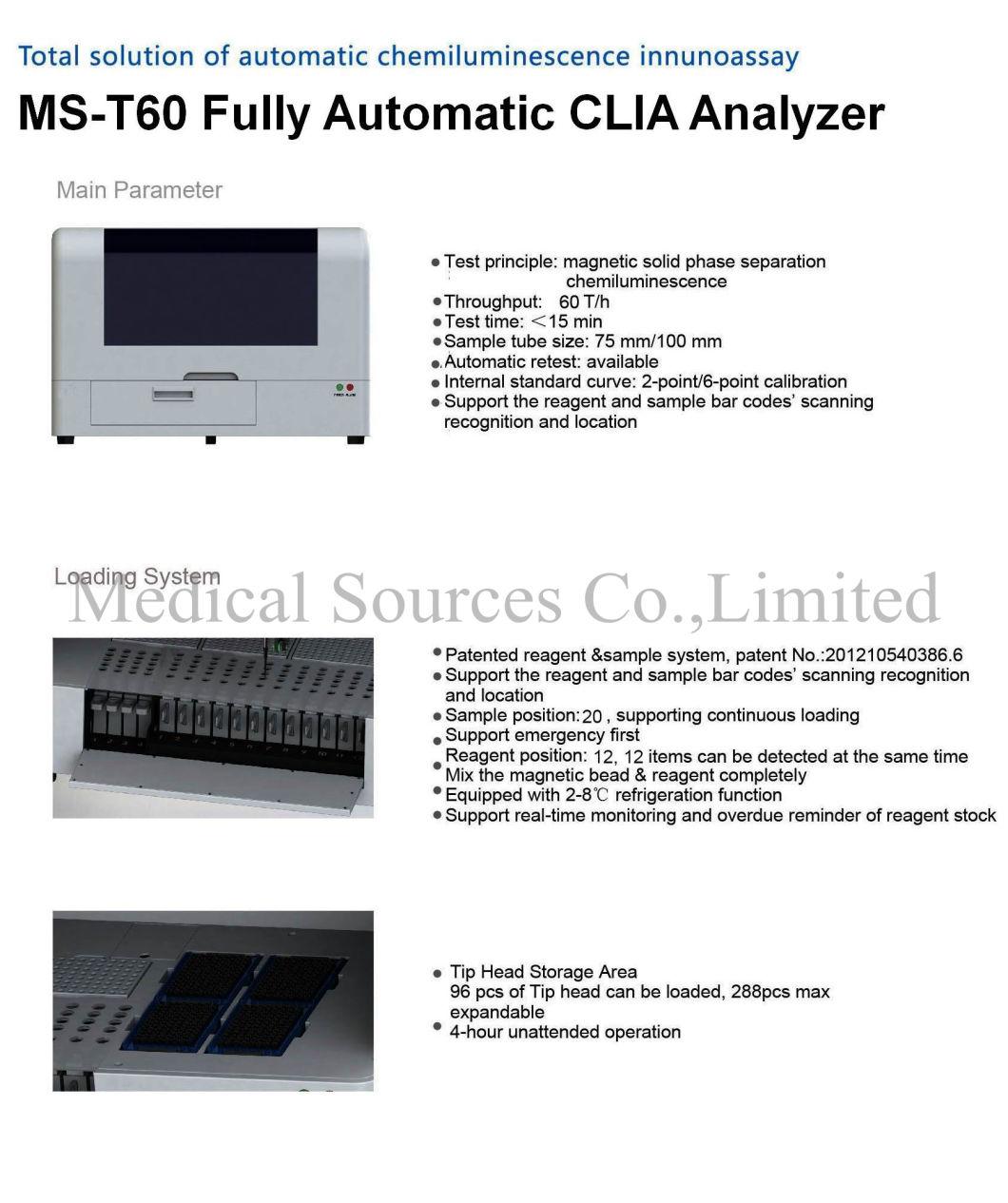

MS-T60 Fully Automatic CLIA Analyzer
MS-T60 is a small full-auto chemiluminescence analyzer characterized by small size, low maintenance costs, and complete reagent test menu.



Main Parameters:

Test Principle:Magnetic solid phase separation chemilumienescence.

Throught put:60T/h

Test Time:<15 min

Sample Tube Size:75mm/100 mm

Automatic Retest:Available

Internal standard curve:2-point/6-point cablibration

Support the reagent and sample bar code's scanning recognition and location

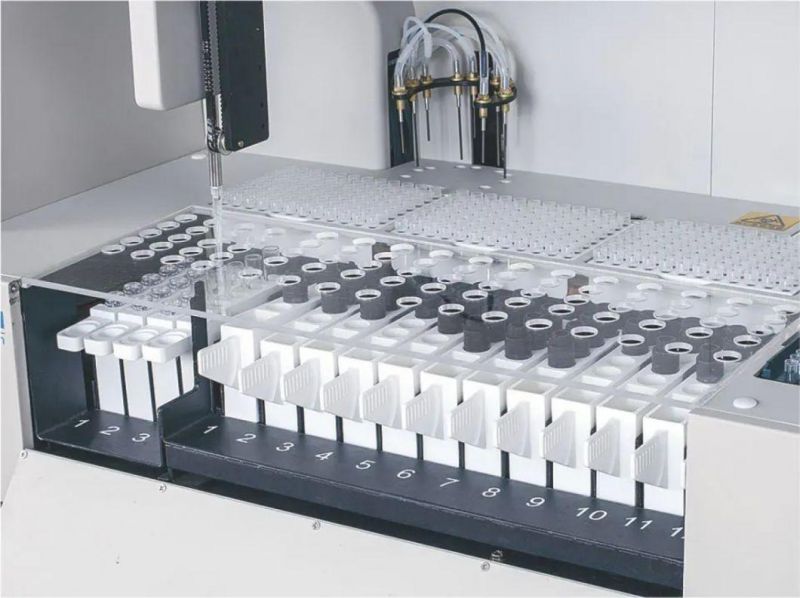

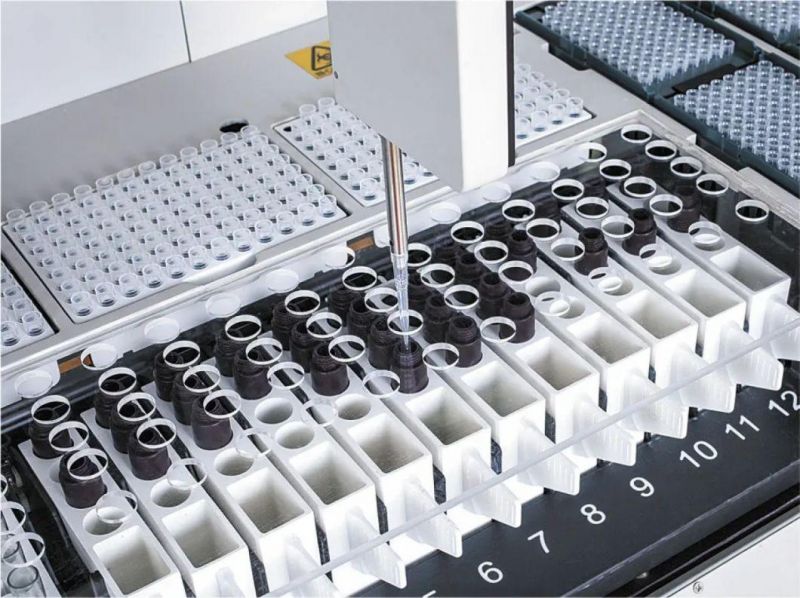

Loading Sytem:

Patented reagent&Sample system.

Support the reagent and sample bar codes' scanning recognition and location

Sample postion:20,supporting continouous loading

Support emergency first

Reagents postion:12,12items can be detetected at teh same time

Mix the magnetic bead&reagent completely

Equipped with 2-8ºC referigeration function

Support real-time monitoring and overdue reminder of reagent stock.

Tip head stroage area,96pcs of tip head can be loaded,288pcs max expandable

4-hour unattended operation

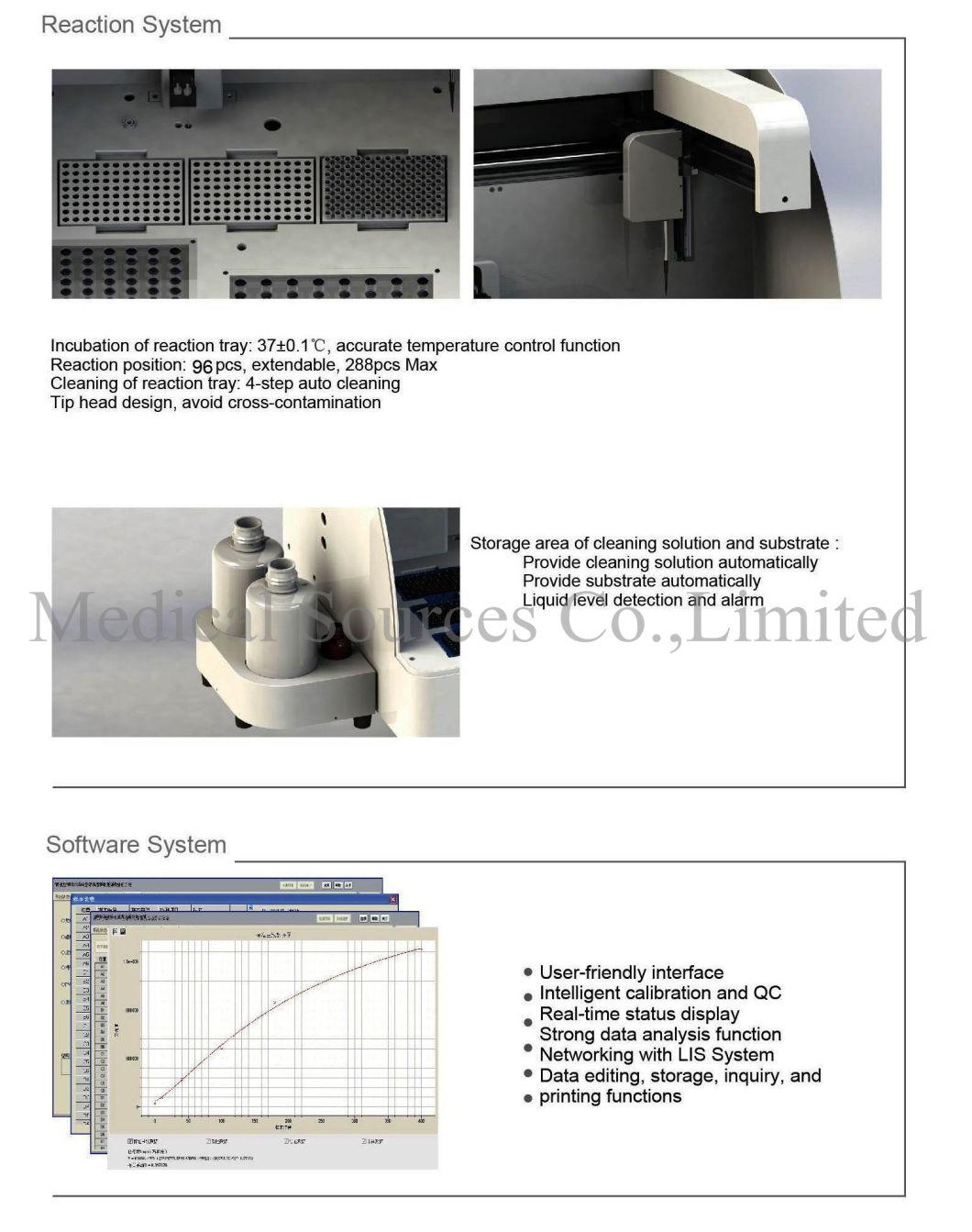

Reaction Sytem

Incubation of reaction tray:37±0.1ºC,accurate temperature control function

Reaction position:96 pcs,extendable ,288 pcs max

Cleaning of reaction tray:4-step auto clieaning

Tip head design,avoid cross-contamination

Storage area of cleaning solution and substrate

Provide cleaning solution automatically

Provide substrate automatically

Liquid level detection and alarm



Software system

User-friendly interface

Intelligent calibration and QC

Real-time status display

Strong data analysis function

Networking with LIS System

Data Editing,storage,inquiry and printing functions
