High Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and Oil

HENAN WEIGUO INTELLIGENT TECHNOLOGY CO., LTD.
  • Certification：CE, RoHS
  • Gas：H2S
  • Type：Non-Dispersive Infrared Analysis
  • Measuring Gas：Combustible,Catalytic Sensor
  • Gas Detected：Toxic Gas & O2,Electrochemical Sensor
  • Target Gas：Vocs CO2 Gas,Pid Sensor

Base Info

  • Model NO.：GTQ03

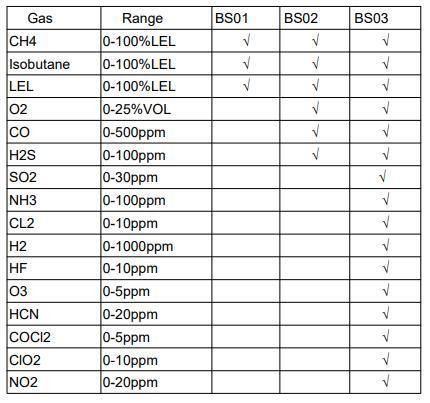

  • Measuring Range：Refer to Our Gas List
  • Sensor Life：5 Years
  • Measuring Type：Diffuse Naturally
  • Response Time：Equal or Less Than 10s
  • Signal Output：Signal Output
  • Cable / Distance：1.5 mm2, 3 Wire, Shielded,1000m (Maximum)
  • Ingress Protection：IP65
  • Dimension and Weight：293 X 263 X 108mm, About 2.7kg
  • Approval：Ex D Iic T6
  • Housing Material：Chamber: Aluminum Alloy Sensor Cover: Stainless St
  • Operation Voltage：DC24V
  • Consumption：<2W
  • Transport Package：Carton
  • Specification：293 x 263 x 108mm
  • Trademark：Airradio
  • Origin：China
  • Production Capacity：50000piece,Year

Description

Measuring gasCombustibleCatalytic sensorMeasuring gasToxic gas & O2Electrochemical sensorMeasuring gasCO2 gasNDIR sensorMeasuring gasVOCsPID sensorPowerDC24V±6V, ≤2.5W Measuring rangeRefer to our gas listRefer to our gas listMeasuring accuracy±5%F.S.±5%F.S.Cable entry NPT3/4Sensor lifeElectrochemical2 years (1 year for O2 sensor)Operating temperatureLEL: -40~70ºC   Toxic: -20~50ºCSensor lifePID sensor0.6 to 1 yearMeasuring typeDiffuse naturallyDiffuse naturallyResponse timeLEL: T90≤15sToxic gas: T90≤30sElectrical output PBUS4-20mAAlarm output signa 3 programmable relaysRelays2 free contact 1 active relayHumidity ≤95%RH  (no condensation)Operation by IR remote controlState indication Yellow--Fault, Red--Alarm, Green--PowerWorking temperatureLEL: -40~70ºC  Toxic: -20~50ºCAmbient pressure 86KPa~106KPaEx grade Ex d IIC T6 Gb / Ex tD A21 IP67 T80ºCEnclosure material Aluminium alloyIngress Protection IP67Housing material Chamber: Aluminum alloy
Sensor cover: Stainless steelDimension and weight  130x 154 x95mm, about 1.2kgCable entry NPT3/4

High Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and Oil

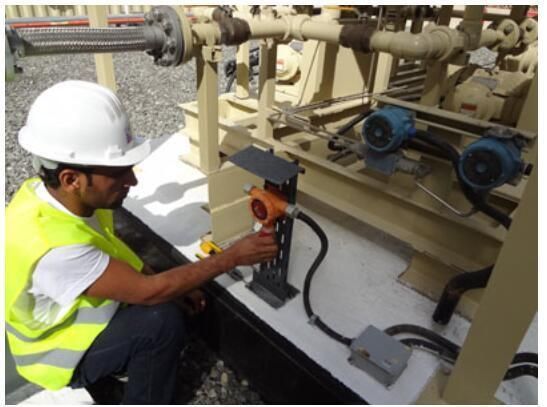

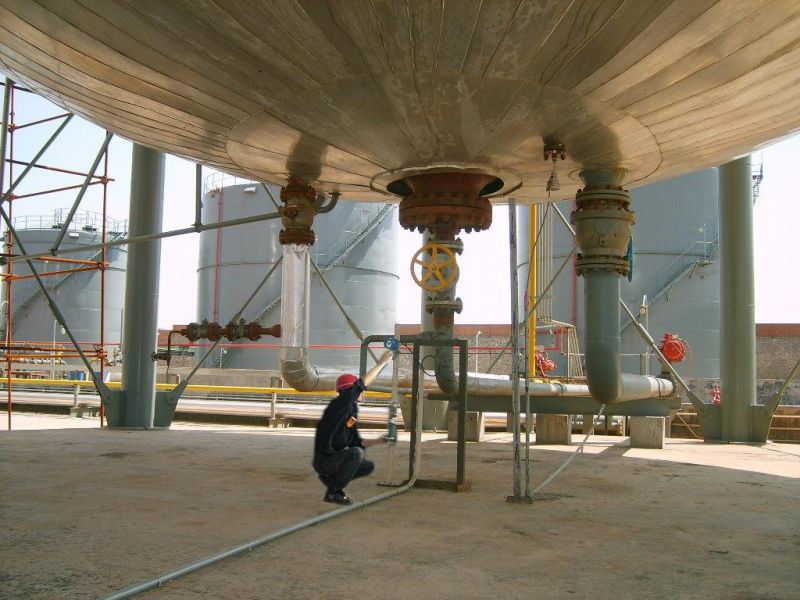

Application and Successful application Cases

Steelworks, Petrochemical plants, Shipyards, Water treatment plants, Mines, Power plants, Food industry etc.
High Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and OilHigh Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and Oil

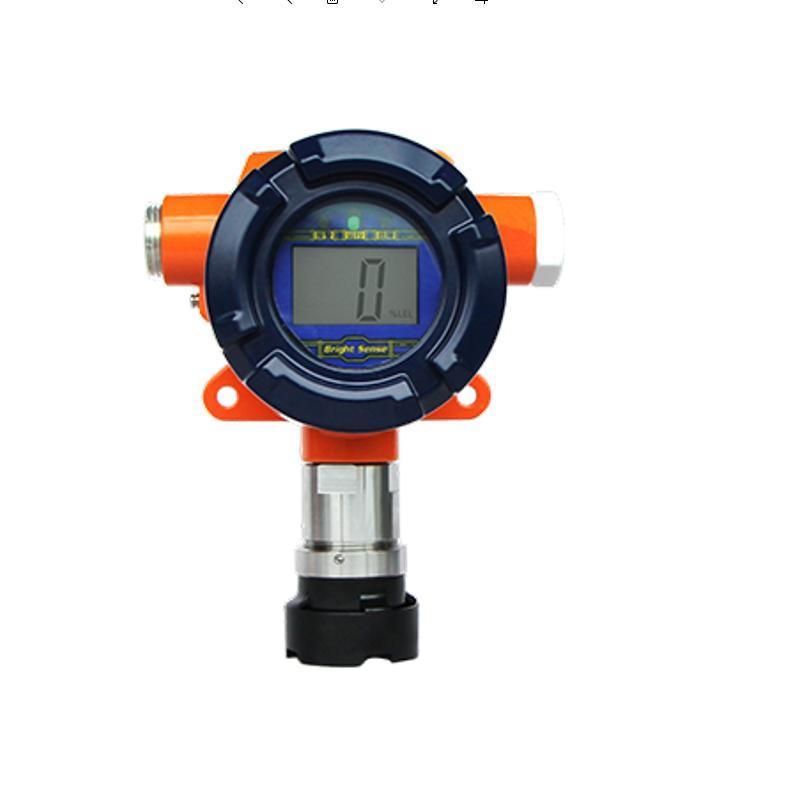

Detail Image
High Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and Oil
Packaging & Delivery
High Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and OilHigh Performance Combustible Toxic Gas O2 CO2 Vocs Fixed Gas Detector for Africa Gas and Oil

Company Profile
We are a leading manufacturer of sensors for listed companies (SZ30007)in China. There are more than 20 subsidiaries (around core sensors)at home and abroad, many world-renowned equipment manufacturers also have our sensors commercially,  Like HoneywellVega,Draeger all our partner.There are also many European companies as well as Italian companies.
