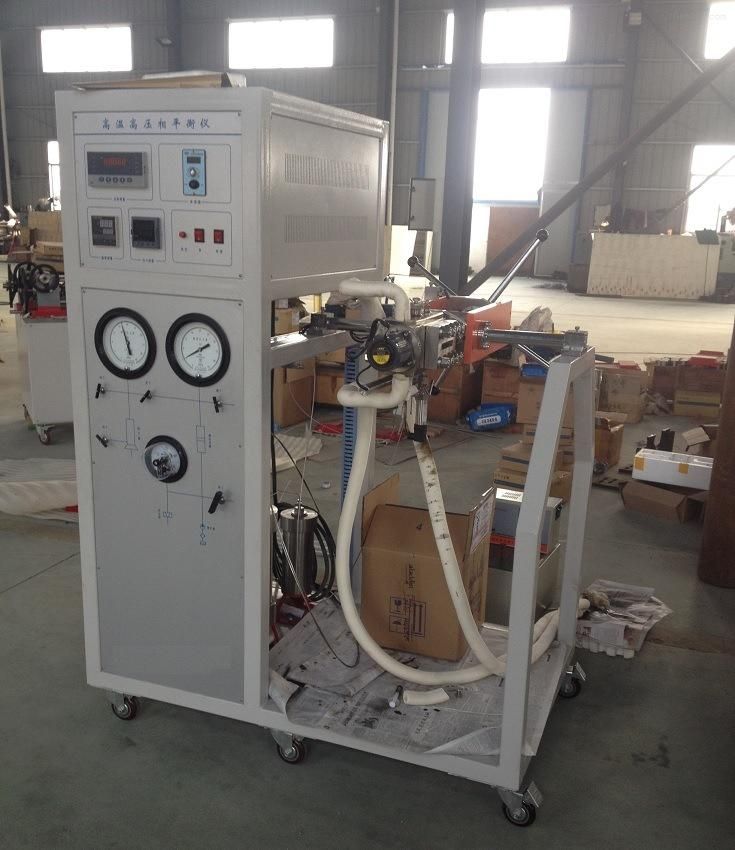

Experimental Apparatus for High Pressure Phase Balance

Qinhuangdao Shenghua Imp. & Exp. Trading Co., Ltd.
  • After-sales Service：Lifetime After-Sale Service
  • Warranty：0ne Year
  • Brand：Hky
  • Customized：Customized
  • Portable：Non Portable
  • Certification：CE

Base Info

  • Model NO.：AXPH-2000
  • Type：Electrochemical Gas Analyzer
  • Power Supply：220V 50Hz
  • Transport Package：Fumigated Wooden Box
  • Specification：2.5x1.2x2.1m
  • Trademark：SW
  • Origin：China
  • HS Code：90278899
  • Production Capacity：2000,Year

Description

Basic Info.

Model NO. AXPH-2000 Type Electrochemical Gas Analyzer Power Supply 220V 50Hz Transport Package Fumigated Wooden Box Specification 2.5x1.2x2.1m Trademark SW Origin China HS Code 90278899 Production Capacity 2000/Year

Product Description

Experimental Apparatus for High Pressure Phase BalanceMain Technical Parameters
ModelAXPH-2000
Working pressure20Mpa
Pressure Testing Accuracy0.01Mpa
Working Temperature150ºC
Temperature accuracy0.1ºC
  • High pressure phase balance kettle Volume
60ml (theoretical)
Ariation range of High pressure phase balance kettle Volume25.165ml(theoretical)
Diameter of phase balance kettle plunger21.5mm
Voltage220V
Heating power1 Kw
Outer dimension (L×W×H)710×550×865

The phase balancer consists of the following components:
1.  The phase equilibrium kettle
Phase balance kettle pressure 20Mpa, temperature 150ºC, the kettle front and back open observation window, visual range of 15×96.
2.  Oil bath
Power supply voltage 220V, heating power 1Kw, working temperature 150ºC, temperature measurement accuracy 0.1ºC.
3.  Lifting platform
Lifting platform height 200, oil bath and agitator installed on its work table.
4.  agitator
The power supply.  Ac 220V, the use of magnetic force to drive the phase of the kettle stirrer rotation to achieve the purpose of stirring in the kettle.
5.  Pressure measurement
Adopt precision pressure gauge and pressure transmitter for double measurement.
Pressure gauge range 40Mpa, accuracy 0.4.
Pressure transmitter model: DBY-300, range: 40Mpa
6.  The relief valve
A safety valve is designed in the pressure measuring line, and the safety valve is set at 25Mpa.
7.  Temperature measurement
Phase state kettle is installed in ф 1 K-type temperature probe, temperature value is measured and displayed by XMTA-7511 temperature controller, display precision 0.1ºC.
8.  Valves and pipes .


Note: This device can be customized.
