• Model NO.：GDGY
• High Voltage Output Capacity：50va
• Weight：< 18kg
• AC High Voltage Output：400V-2200V ±2% Every 100V 50va
• DC High Voltage Output：00V-2200V ±2%
• Transport Package：Standard Wooden Case
• Specification：450mm*360mm*310mm
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：50PCS, Month

Basic Info.

Model NO. GDGY High Voltage Output Capacity 50va Weight < 18kg AC High Voltage Output 400V-2200V ±2% Every 100V 50va DC High Voltage Output 00V-2200V ±2% Transport Package Standard Wooden Case Specification 450mm*360mm*310mm Trademark GOLD Origin Chongqing HS Code 9031809090 Production Capacity 50PCS/ Month

Product Description

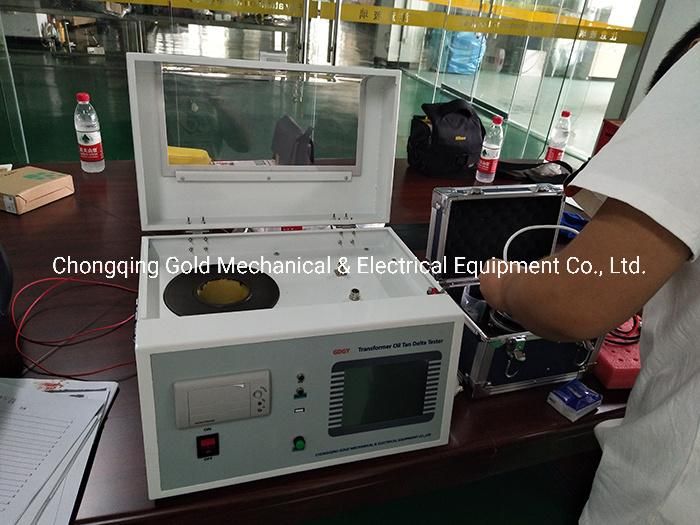

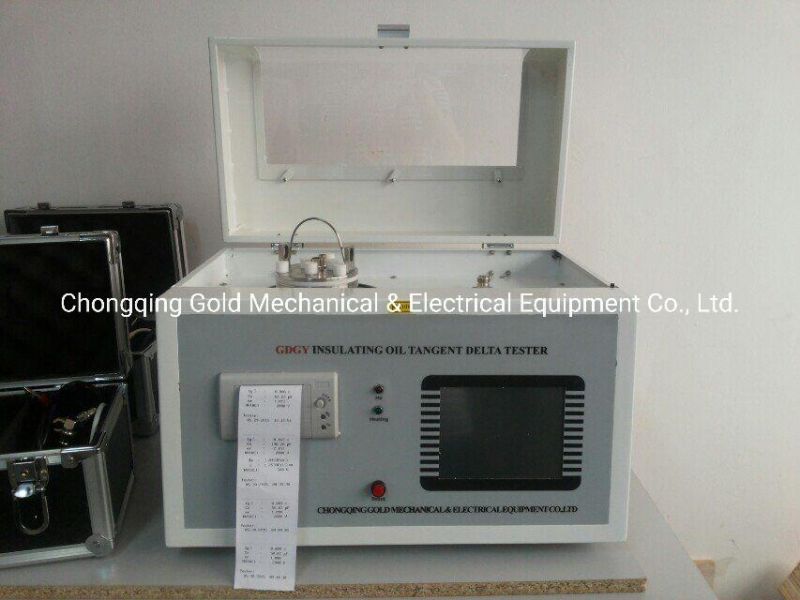

GDGY Insulating Oil Dielectric Loss Tangent Delta Tester





Introduction:

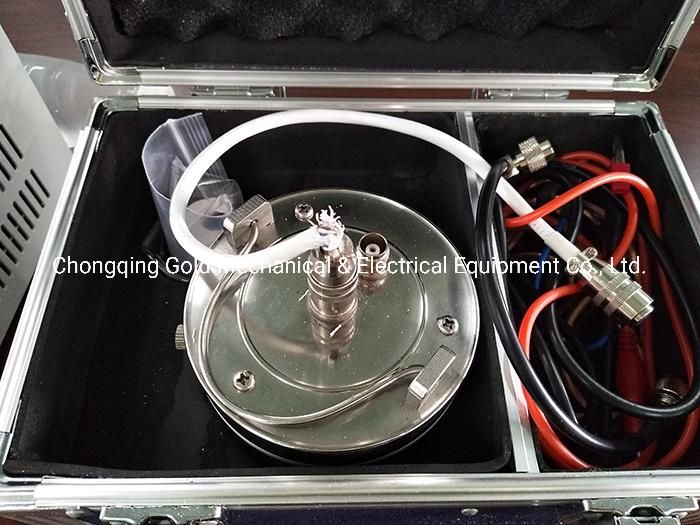

• GDGY Insulating Oil Dielectric Loss Tangent Delta Tester is integrated by oil cup for dielectric loss, temperature-control equipment, temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor, high resistance meter and DC high-voltage power etc.

• The most advanced heating mode of high frequency induction is applied to the heating part of this instrument, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc.

• AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the instrument can operate correctly.

• The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and capacitance is not influenced by environmental temperature and dampness etc. In this way, the accuracy of the instrument is guaranteed conformably after a long-time application.

Advantage:
Convenience and maneuverability are the most remarkable advantages of this instrument.
First of all, digital technology and intelligent automation measurement are applied inside the instrument.
Secondly, big-screen (240mm×128mm) menu interface in Chinese is equipped, with which user can be prompted each step during the operating process.
Thirdly, the result can be output by printer. The user can grasp operating processes masterly without technical training.

Specifications:


Condition of Use	-5ºC-40ºC RH<80%
Power Source	AC 220V±10% Without Frequency Limit
AC High Voltage Output	400V-2200V ±2% Every 100V 50VA
DC High Voltage Output	00V-2200V ±2%
Temperature Control Induction Stove	Maximal Power 500W
Temperature Control Range	<100ºC
Temperature Measuring Error	±0.5ºC
Control Temperature Error	0.1ºC
Control Temperature Time	Room Temperature 90ºC <20min

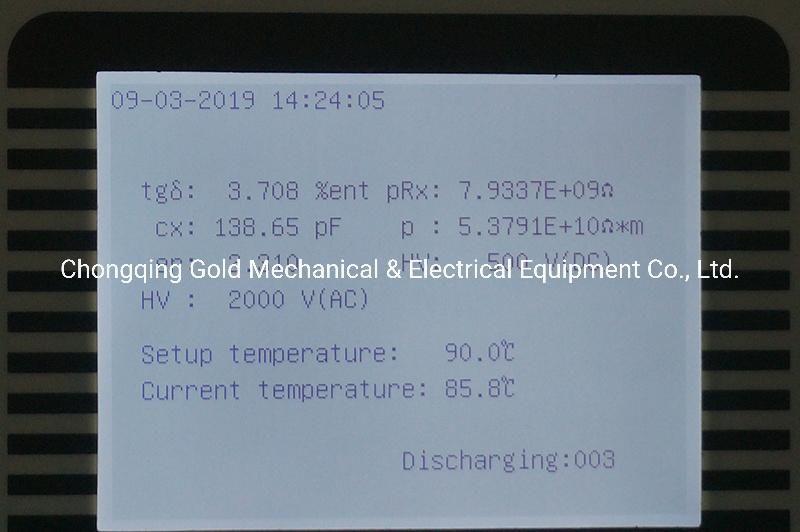

Measuring Range	tgδ Without Limit Cx 15PF-300PF Rx 10M-10T
Resolution	tgδ 0.001% Cx 0.01pF Rx 0.01
Precision	delta tgδ:±(Reading*0.5%+0.020%) delta Cx :±(Reading*0.5%+0.5PF) delta Rx :±Reading * 10%
Relative Dielectric Loss Constant	Εr Calculated Automatically
Volume Resistivity	ρ Calculated Automatically
Dimension	450(L)×310(W)×360(H)
Net Weight	21KG

Our Company:

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester,  Circuit Breaker Analyzer,  CT PT Analyzer, Hipot Tester ,  Relay Tester and so on for more than 10 years.

After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
