Transformer Insulating Oil Dielectric Strength Tester Oil Bdv Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Test Standard：IEC60156, ASTM D1816
  • Output Voltage：0-80kv , 0-100kv
  • Measuring Precision：3%Rdg+0.3%Fs
  • Rate of Voltage Rise：2kv,S±10%
  • Test Times Setting：1-9
  • Mixing Time Setting：0~99 Second Waiting Time Setting: 0-9 Minute 59sec

Base Info

  • Model NO.：GDYJ-501
  • Maximum Storage Capacity：100 Groups of Test Data
  • Breakdown Voltage Tester Display：256*128mm LCD
  • Breakdown Voltage Tester Dimension：59*52*50cm
  • Breakdown Voltage Tester Weight：53kg
  • Transport Package：Standard Wooden Case
  • Specification：ISO
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：50PCS,Month

Description

Output voltageAC 0~80KVRate of voltage rise 2KV/s±10%Measuring precision3%RDG+0.3%FSTest times setting1-9Mixing time setting0~99 second Waiting time setting: 0-9 minute 59secondMaximum storage capacity100 groups of test data Test standards: IEC60156Display256*128 LCDRated power supplyAC 220V±10% 50Hz/60HzEnvironment temperatures0-50°C Relative humidity ≤80%RH

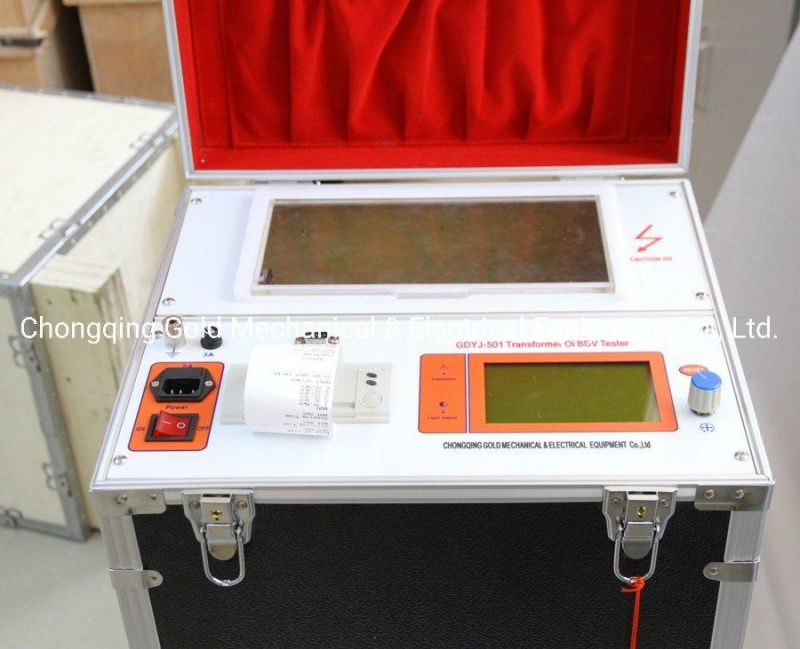

Transformer Insulating Oil Dielectric Strength Tester Oil Bdv Tester

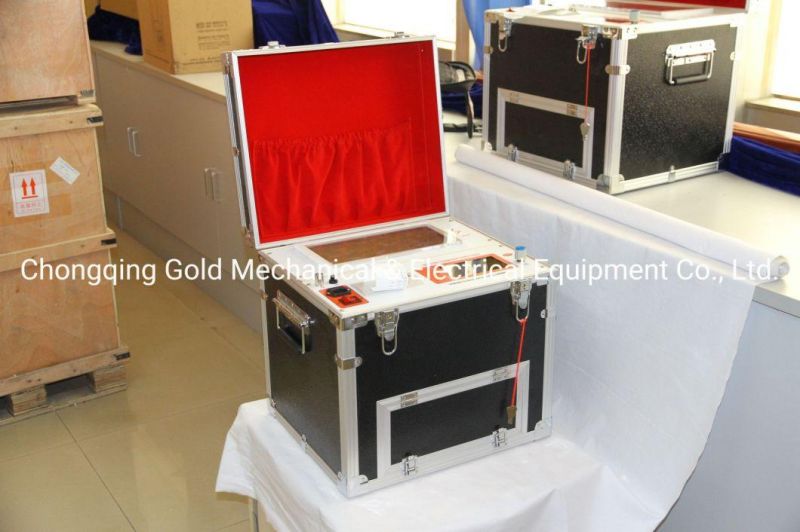

Transformer Insulating Oil Dielectric Strength Tester Oil Bdv Tester
