• Model NO.：K60-V
• Working Voltage：3.7V Rechargeable Lithium Battery
• Weight：Approx. 300g
• Alarm Type：Vibration Alarm with Light, Sound
• Sensor Life：2-5 Years
• Explosion-Proof Grade：Exdib Iic T3
• Suction Pump：Built-in Suction Pump for Sampling with Long Prob
• Accessories：Detection Probe&Rubber Protection Case
• Continuous Work Time：12 Hours
• Display：Easy to Read, Backlit LCD Display
• Temperature：-20deg.C to +50deg.C
• Transport Package：Carton
• Specification：133x70x36mm
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000PCS

Basic Info.

Model NO. K60-V Working Voltage 3.7V Rechargeable Lithium Battery Weight Approx. 300g Alarm Type Vibration Alarm with Light, Sound Sensor Life 2-5 Years Explosion-Proof Grade Exdib Iic T3 Suction Pump Built-in Suction Pump for Sampling with Long Prob Accessories Detection Probe&Rubber Protection Case Continuous Work Time 12 Hours Display Easy to Read, Backlit LCD Display Temperature -20deg.C to +50deg.C Transport Package Carton Specification 133x70x36mm Origin Nanjing, China HS Code 8531100000 Production Capacity 1000PCS

Product Description

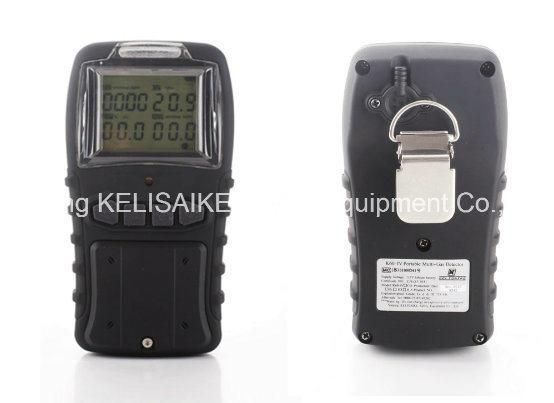

Portable multi 5 in 1 gas detector infrared CO2 sensor




The K60-IV is a full-featured, compact, one- to four-sensor gas detector for oxygen, combustibles, hydrogen sulfide,carbon monoxide or sulfur dioxide. Key features include easy-to-operate design, a water-resistant case and high sensitivity sensors

>>>Key Features

1)      Light weight and small size design(less than 300g), easy to operate

2)      Excellent built-in vibration alert for use in areas of high ambient noiseapplications

3)      90dB audible vibration alarm

4)      Strong, protective, concussion-proof shockproof design for normal working in harsh enviroments

5)      Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage

6)      Rechargeable lithium battery for over 10 hours continuously operation

7)      Intuitive simple-to-operate four-button

8)      User interface with built-in pump

9)      2+2 digits LCD real time displays gas concentration and corresponding gas types

10)  Full featured self-test:sensors, lithium battery, circute integrity and acousto optic vibration alarm function

11)  Accessories:operator's manual, calibration hose, charger and conversion plug

12)  CERTIFICATIONS: CMC,Ex,MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)


>>>Technical Specification

Dimension	133 L×70 W×36 H mm
Weight	Approx. 300g
Sampling	Pump, diffusion
Working Temperature	- 10 °C ~ + 44 °C
Relative Humidity	15%~90% RH (non-condensing)
Power	3.7V rechargeable lithium battery, continuously work for over 10 hours
Sensor Life	One year for combustible gas sensor; two years for oxygen and toxic gases sensors
Display	LCD display
Alarm Mode	Acousto optic alarm
Explosion-proof Grade	ExibIIC T3
Warranty	1 year



GAS TYPE	DETECTION RANGE	RESOLUTION	RESPONSE TIME
O2	0-30%Vol	0.1%Vol	T90≤15s
LEL gas	0-100%LEL	0.1%LEL	T90≤5s
CO	0-1999ppm	1ppm	T90≤25s
H2S	0-100ppm	0.1ppm	T90≤30s

>>> CE Certificate:


>>> Package

>>> Our Services

1.For all our customers, our products have 1 year warranty, and life-long maintenance.

2.All inquiries will be replied in 24 hours.

3.Providing technical support, professional engineers are specialized in dealing with gas monitoring problems you met.

4. OEM and ODM service are welcome

5.KELISAIKE plant is located in Nanjing, only 1 hour by high speedtrain from Shanghai. Welcome to visit the factory.

6.All products are well tested and packed before shipment; the certificate of inspection will be provided.


>>> Calibration

Do you know how to calibrate your portable gas detectors?

Please contact us to ask for help.


Why choose KELISAIKE?

1. Mutual benefit : We are a factory.  The price is much more competitive than others in the same quality.

2. Professional engineers: With 10+ years history, KELISAIKE has a professional engineering team: 4 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech manufacturing equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, the custom product as your request are available.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS). (b) Design your color box(≥500PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) If there's any inferior-quality products are found, new ones could be sent to replace at free cost in the next order after confirmation.
>>> FAQ
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before place an qty order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on -line, please have a detailed looking and choose the interested models in our site. Or you can send email to us.

Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

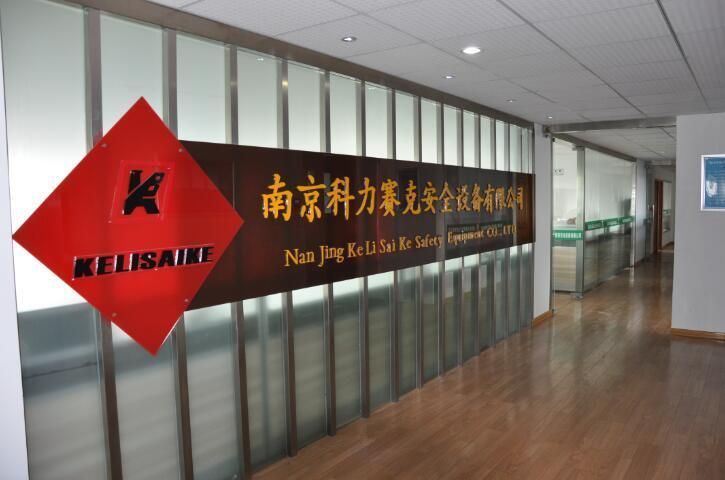

>>>COMPANY VIEW

Nanjing KELISAIKE company is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan.

We are the leader enterprise of the science and technology, persisting in creating core competencies by the core technology. In the company, there is one professional and technical talent team who masters core technology, including more than 10 senior technicans and masters.

Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc. Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
