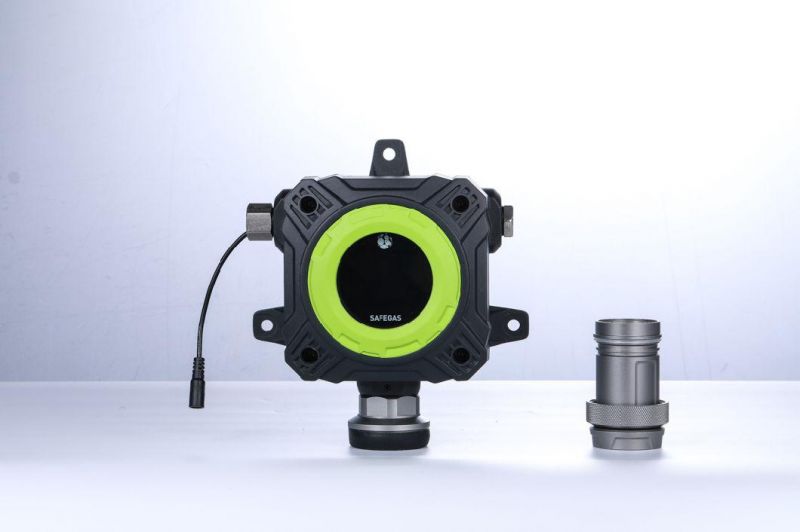

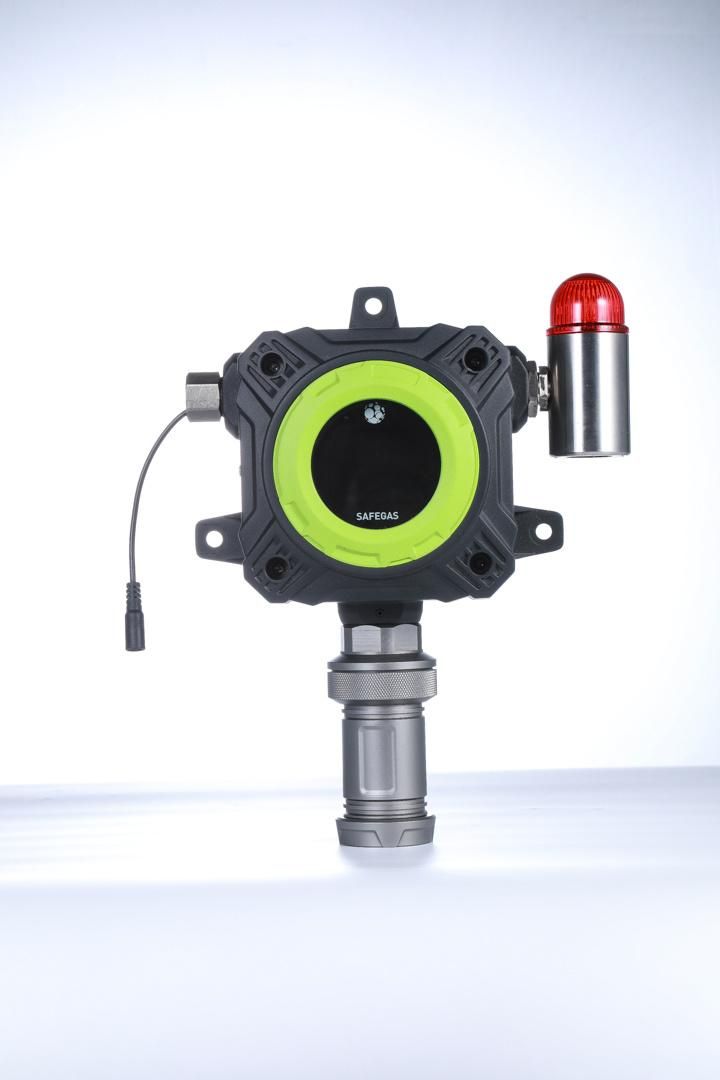

| Size | (H x W x D)320*230*110mm |
| Weight | 3000g |
| Detected principle | Electrochemistry |
| Measure range | 0-100%VOL |
| Resolution | 0.01%VOL |
| Precision | ≤±2%F.S (Higher measure range can be customized) |
| Pump flow rate | Flow rate range:0-800 mL/Min |
| Display Screen | 2.4-inch color display, resolution 320*240 resolution |
| Display contents | Gas molecular formula, concentration, unit, pump status, etc. |
| Alarm | buzzer, alarm status prompt on the display |
| Data logging | Independent SD memory card, automatic measurement of measurement data, customizable recording interval |
| Communication and data download | It can be directly connected to the computer via USB to quickly download the TXT file for storing data; with the PC software to download, store, analyze and print the data. |
| Power supply | 12-36V DC |
| Wireless network | Built-in module to upload data to the network platform, regardless of distance (optional) |
| Network frequency | 2.4G high frequency |
| Installation method | Wall-mounted, pipe-flow type (optional) |
| Language | Chinese / English |
| Humidity | 0~95%RH (no condensation) (optional filtration device can be equipped if in hyperhumidic ares ) |
| Temperature | -20ºC~+50ºC (optional filter can be equipped if over temperature) |
| Explosion-proof | Ex d IIC T6 Gb |
| Protection degree | IP65 |
| Certificate | measuring instrument license, explosion-proof certificate, CE,ISO9001 |
