• Model NO.：SF-CP
• Shape：Round and Square
• Application：Quickly Determine The Carbon Equivalent CE, The Ca
• Transport Package：Cartons and Pallet
• Specification：1.1*1.1*0.12
• Trademark：SEFU
• Origin：China
• HS Code：902790000
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. SF-CP Shape Round and Square Application Quickly Determine The Carbon Equivalent CE, The Ca Transport Package Cartons and Pallet Specification 1.1*1.1*0.12 Trademark SEFU Origin China HS Code 902790000 Production Capacity 200000PCS/Month

Product Description

Carbon Silicon Analyser - Thermal Analysis Test carbon Cups

Description :

The carbon test cups are used matching with the carbon and sulphur analyzer to quickly analyze carbon content, silicon content and carbon equivalent in molten iron, which can save smelting time of molten iron, greatly reduce production cycle of white and grey cast iron and therefore increase production efficiency.The carbon cup is made of resin coated sand, straight quartz tube, T1 and T2 thermocouple wires and Sealing cement and other components.


Shape	Square & Round
Color	Browinish Yellow
Resin content :	3.5%
Moisture content :	0.5% Min.
Core Hardness :	80-100 CHN
Special Thermocouple Tolerance :	± 10C at 1200 0C
High Grade Silica Sand :	(AFS 75-80 ) - 100 Parts
Application	to measure carbon and silicon content of molten iron
Product Keywords	thermal analysis sampling cup,te cup,sampling thermal cup
Shelf Life :	6 Months Min.

TECHNICAL SPECIFICATIONS:



Features:
Carbon cups are Tellurium coated sensors used for determination of carbon equivalent, % Carbon and % silicon in gray, malleable and ductile iron. They cover the entire range from 2.5 to 5 CE.
Very high success rate. Dependable.

1. Very high accuracy of Carbon and Silicon.
2. Wide pouring temperature range

3) Guaranteed white iron solidification
4)Easy to pour at every heat to exact specifications with lowest price.
5) Excellent thermal insulation by using silica.
6) Cup available in small, medium and large size to suit various applications in foundry
7)Well-matched with any thermal analysis system (Carbon Silicon Analyser)


Safety precautions in handling and storage:

FRAGILE MATERIAL [ HANDLE WITH CARE ], METACUP SHOULD BE KEPT
IN DRY PLACE WITH A PLASTIC COVER TO PREVENT FROM BREAKAGE
METACUP SHOULD BE KEPT IN A RACK .

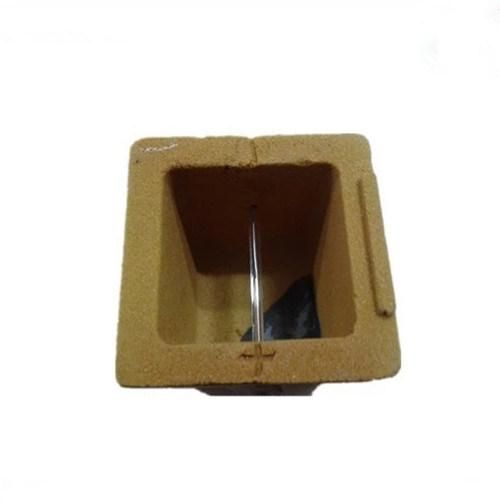

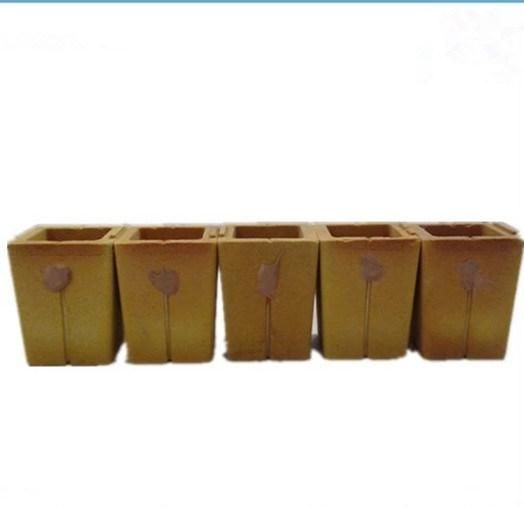

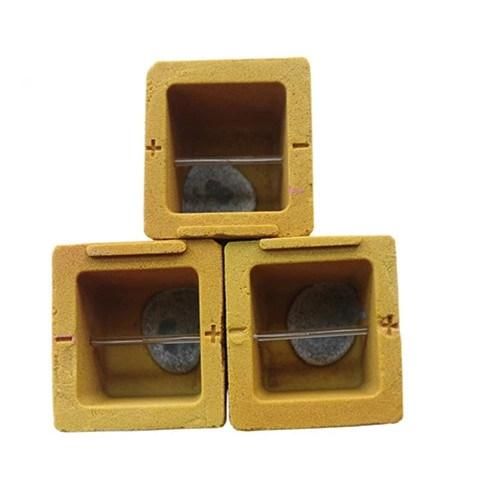

Product Show:





Shipping
Lead time: 10-15days after signed the contract


Packing

1.  Inside packing: Filters are put in small box and Layered packaging. There is cardboard between each layer.
2. Outside packing: Cartons&Pallets. Three layer corrugated cartons and export special pallets .
3. The mark on cartons can be designed according to the customer's request.

FAQ
Q: Are you Factory?
A: Definitely, we are factory.  Welcome to visit us!
Q: What Parameters should I provide to you for proper quotation?
A: Application, pore size, dimension, color, quantity, packing requirements, trade terms.
Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001.
Q: What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
Q: Do you provide Samples?
A: Yes, our factory provide samples for testing, pls send detail parameters to us. (if customized, with drawing is best) The samples will be charged or free according to the specific requirements.
Q: What's the Payment Terms?
A: We accept T/T, L/C, West Union, etc.
Q: How can I get samples?
A: We are honor to offer you the samples.
Q: What about your Packing?
A: We provide carton box, pallet, etc. OEM packing available too.
Q: Do you have R&D services?
A: Yes, we have R&D department to assist you in new product development.
Q:Does your company accept customization?
A:We accept OEM service.
Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
