• Model NO.：Y09-301AC,DC
• Customized：Non-Customized
• Portable：Portable
• Certification：ISO 9001
• Type：Particle Counter
• Light Source：Laser Diode (30, 000 Hours Mean Time Between Failu
• Max. Consumption：10W
• Power Source：AC 220V ± 10%,50Hz
• Size Channels：0.3, 0.5, 1, 3, 5, 10 μm
• Flow Rate：2.83L,Min (Imported Pump)
• Sample Time：1---10min (Selectable)
• Location Labels： 0-999
• Transport Package：Carton
• Specification：300*360*126 mm
• Trademark：SUGOLD
• Origin：Zhejiang China
• HS Code：8543709100
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. Y09-301AC/DC Customized Non-Customized Portable Portable Certification ISO 9001 Type Particle Counter Light Source Laser Diode (30, 000 Hours Mean Time Between Failu Max. Consumption 10W Power Source AC 220V ± 10%,50Hz Size Channels 0.3, 0.5, 1, 3, 5, 10 μm Flow Rate 2.83L/Min (Imported Pump) Sample Time 1---10min (Selectable) Location Labels  0-999 Transport Package Carton Specification 300*360*126 mm Trademark SUGOLD Origin Zhejiang China HS Code 8543709100 Production Capacity 1000PCS/Month

Product Description

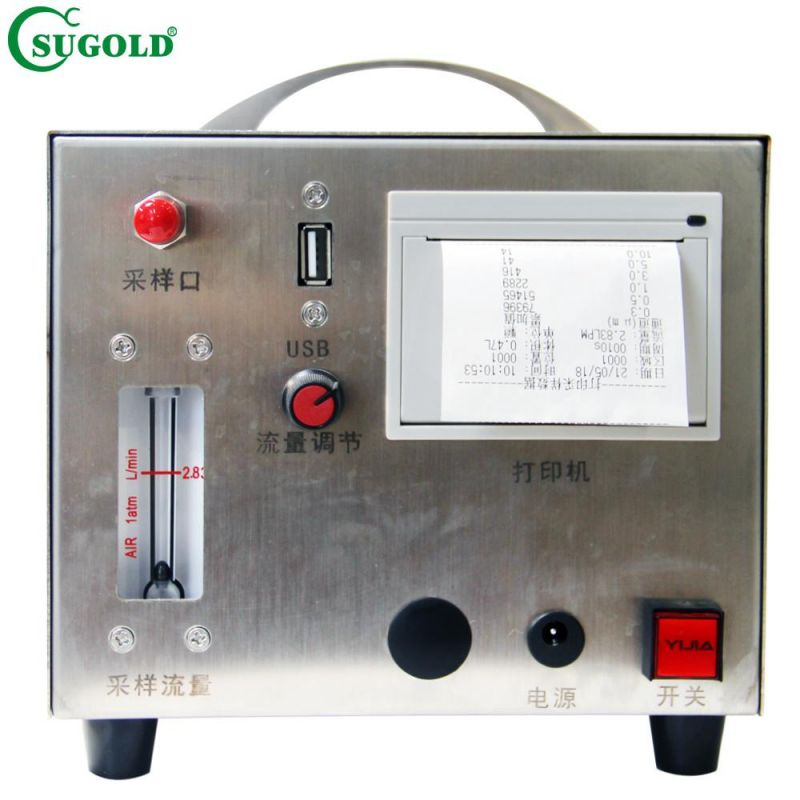

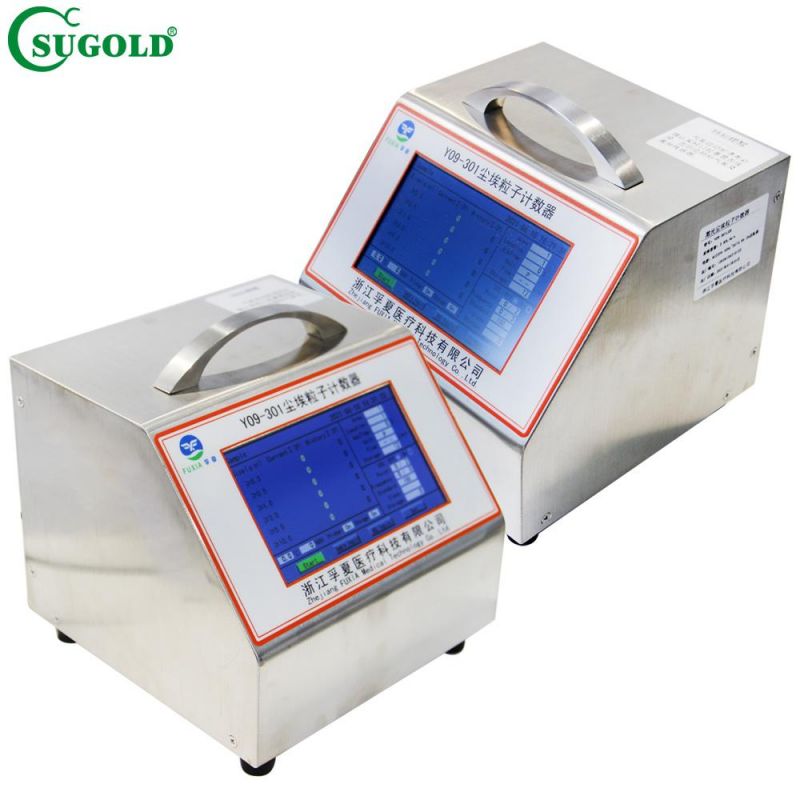

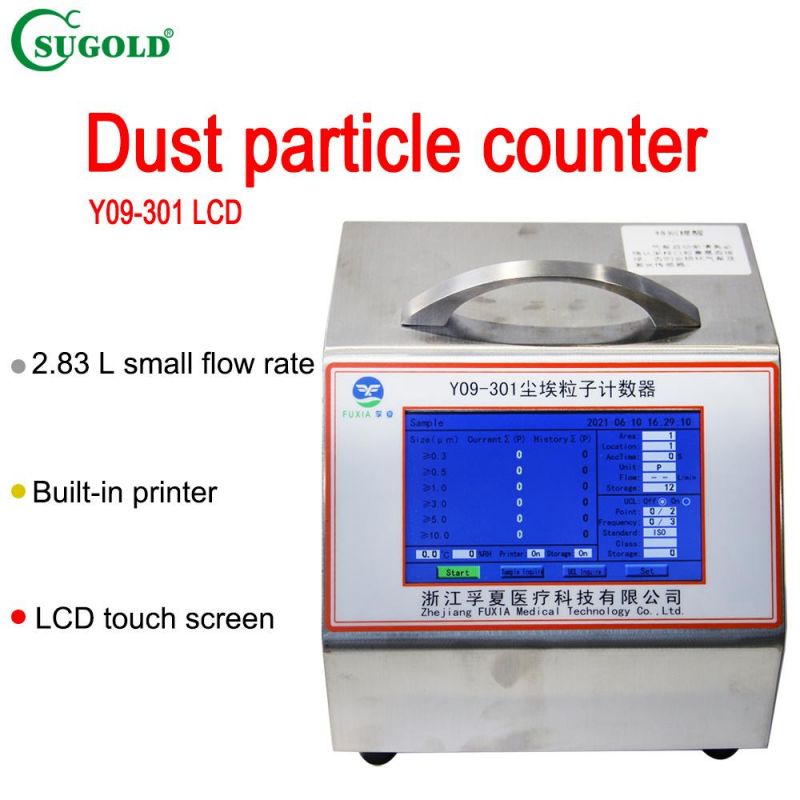

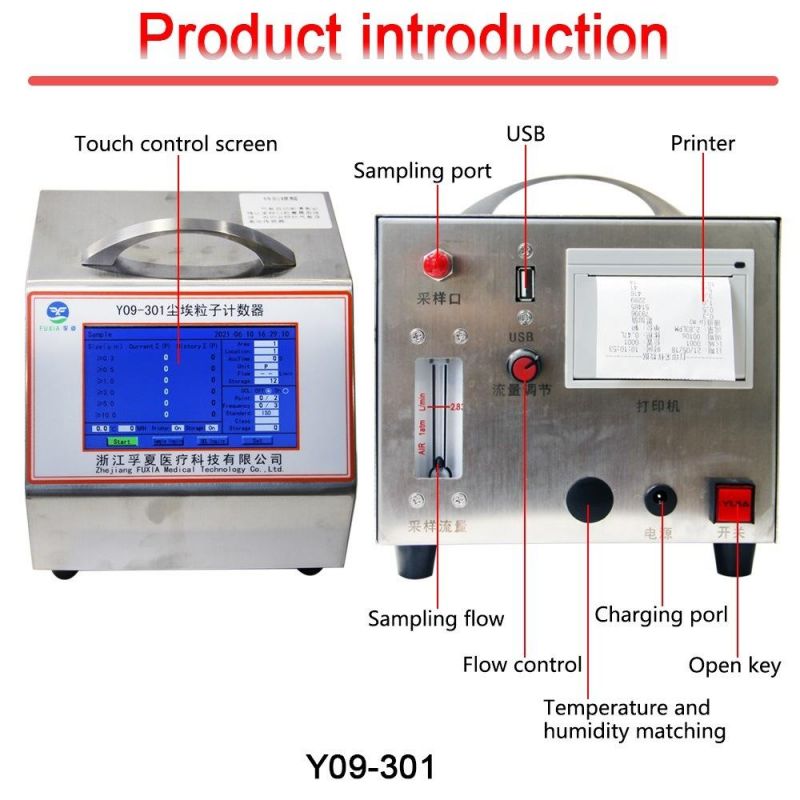

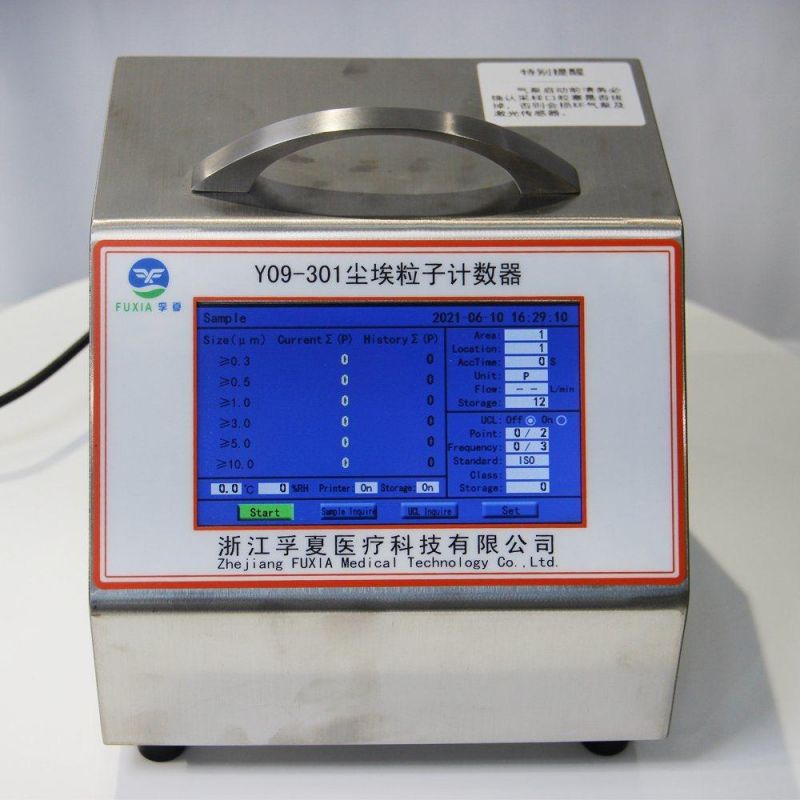

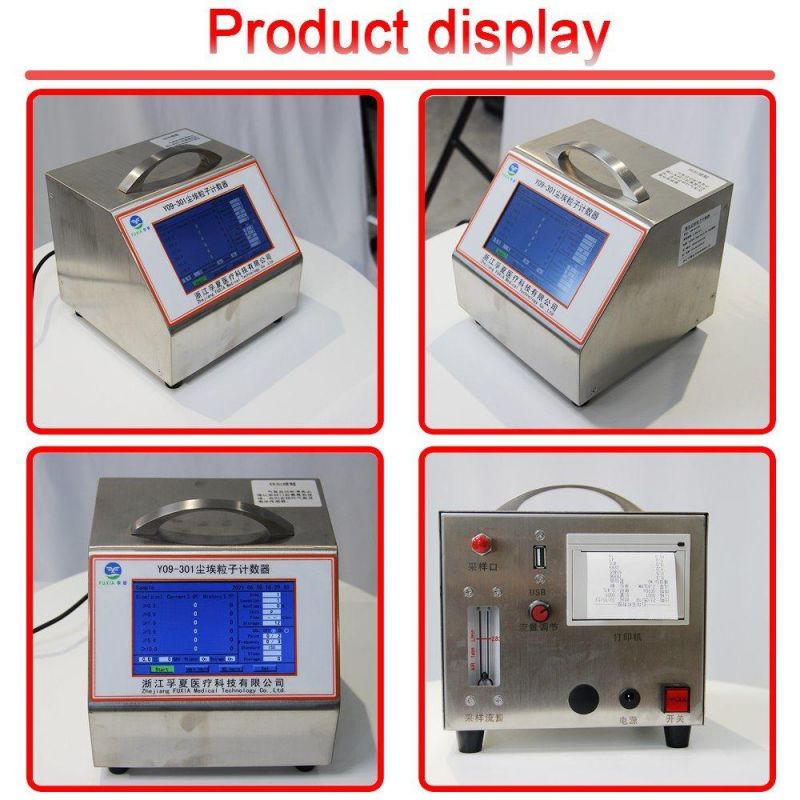

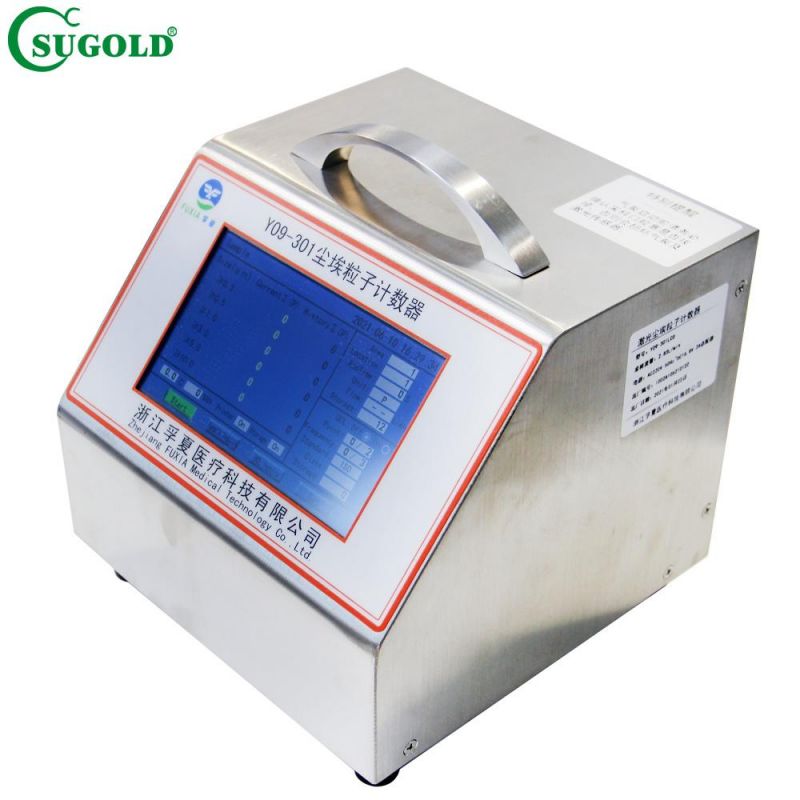

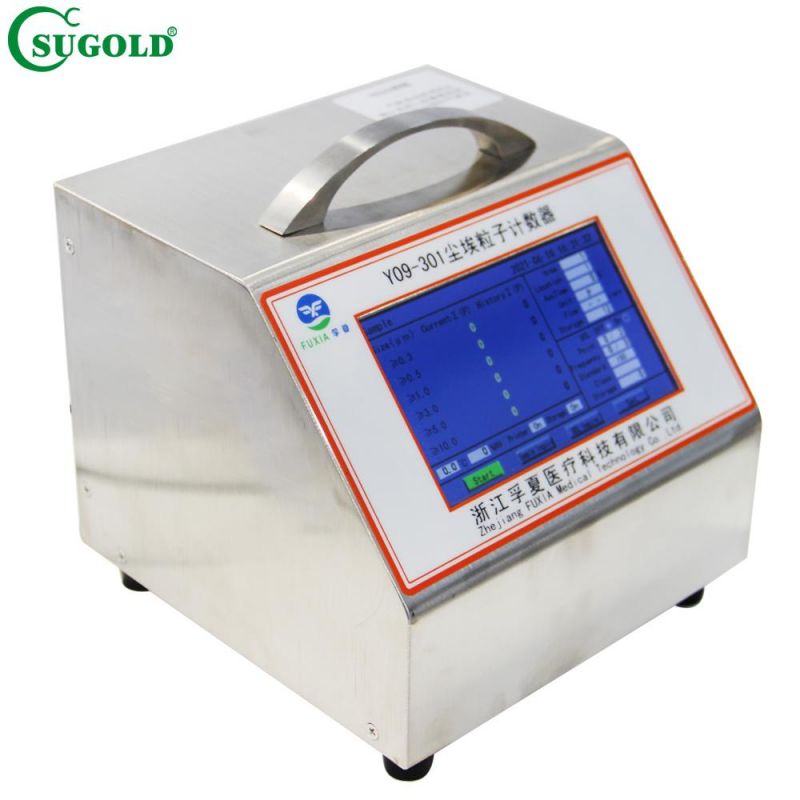

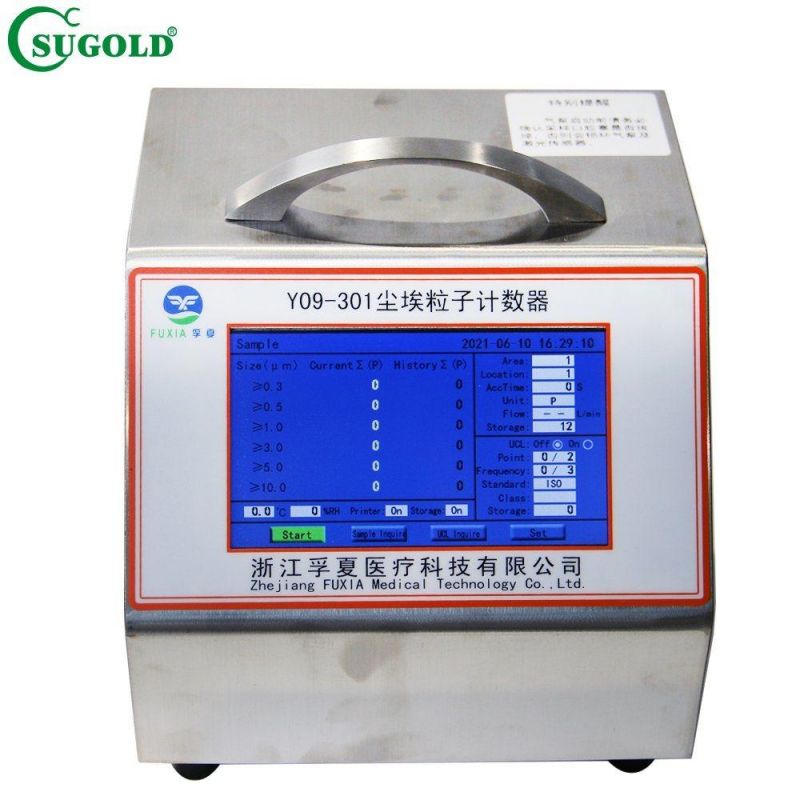

Y09-301AC/DC 2.83L/min Laser Airborne Particle Counter

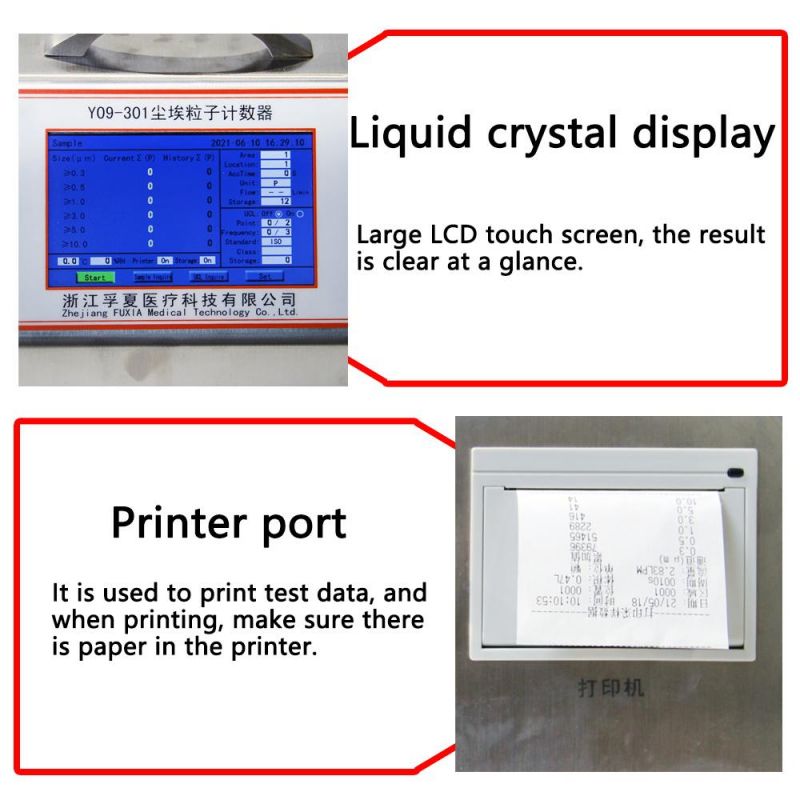

The model is used to detect the particles in the cleanroom. It can measure the class 100 to 300 k environment. The instrument uses the laser diode as the light source, LCD-panel displays, six different size ranges simul taneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer.The  instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
