• Model NO.：LIBS
• Simultaneous Analysis：Analysis 0f 10 Elements
• Transport Package：Wooden Package
• Specification：1.25kg
• Trademark：wuxi jinyibo
• Origin：Jiangsu Wuxi
• HS Code：9027300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. LIBS Simultaneous Analysis Analysis 0f 10 Elements Transport Package Wooden Package Specification 1.25kg Trademark wuxi jinyibo Origin Jiangsu Wuxi HS Code 9027300000 Production Capacity 5 Sets/Month

Product Description

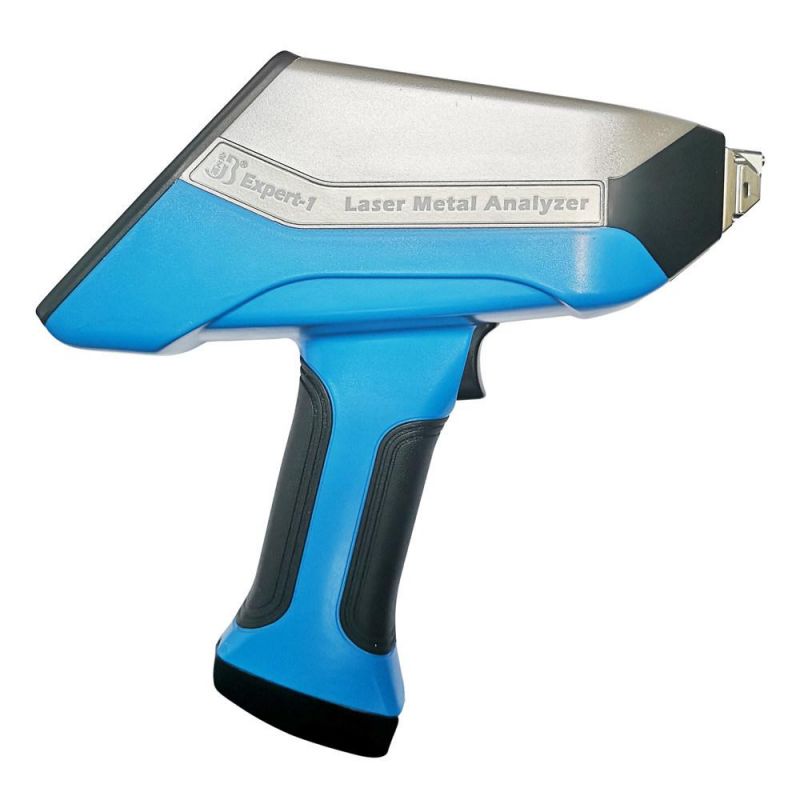

Expert 1 Handheld LIBS Analyzer

The Fastest Laser Metal Analyzer

 Specification

Fast. Durable. Accurate.

Reliable, high-productivity metal grade analysis in only 1 second for most alloys

Idea for scrap metals sorting

Positive Material Identification (PMI)

Safe and nonradiative

Low owner cost

Especially for aluminium alloy grade and composition analysis



Summary:

Laser Induced Breakdown Spectroscopy (LIBS) is one of the fastest metals analyzers in the world. Just squeeze the trigger and one second later the result appears. It's a laser analyzer that will last, even in the toughest scrapyard conditions. As its user interface is simple,LIBS significantly reduces user error, so you get far more accurate and consistent results.

Using LIBS allows you to identify and analyze a wide range of alloys. It gives results on all common alloys, including aluminum, magnesium, titanium, cobalt, chromium, nickel, and copper alloys as well as stainless steels, tool steel, low alloy steels and more.



Key Applications:

Fabrication and Positive Material Identification, PMI

LIBS can quickly identify all kinds of stainless steel such as 304, 316, 316Fe, 321, and aluminum alloy such as 6061 and 6063. It also can detect Si and Cu content of aluminum and zinc alloy raw materials to determine whether the quality of raw materials meets the standard.

Recycling and sorting

Along with recycling and the proportion of recycled raw materials used in the metallurgical industry has increased year by year, LIBS can filter recycled material before customers are buying, sorting and melting, when the machine is ready for delivery before, the workers will confirm again, this step provides effective protection for production and sales. And it can improve quality management system, reduce error rate and reduce cost and improve efficiency.

Trading

In various metal trading markets, both parties can use LIBS to identify for stainless steel, aluminum alloy and copper alloy and on-site quantitative detection of main components so as to avoid losses due to material failure.

Features:

1. SIMPLE TO USE

Operate it all day long on a single battery and without referring to a manual. The instrument is ready to go straight out of the box.

2. PRACTICAL

It's compact, ergonomic and light(1.5kg), making it comfortable for daily use. The screen is easy to read, even in direct sunlight.
3. BULE TO LAST

Its measurement optics are protected by sample glass, one of the toughest materials available. It's also splash water and dust proof (IP54 certified), and complies with the (GB/T2323.2-2008), (GB/T2323.10-2008), (GB/T2323.5-1995), (GB/T2323.6-1995), (GB/T17626.9-2011) grade standard for ruggedness.

4. SAVES TIME

A reliable grade ID in just one second. When sorting aluminum alloys, LIBS can be up to 10 times faster than XRF.

5. LOW COST OF OWNERSHIP

A much lower cost of ownership than an XRF analyzer, which requires expensive licenses and time consuming radiation safety training classes.

6. LAST TECHNOLOGY

Share and store your results securely, and generate reports with our cloud-based service. You can also connect LIBS directly to portable bluetooth printer.

Parameter:

Item	Index
Technology	Passively Q-switch solid-state laser
Elements	Al Be Bi Cu Cr Fe Mg Mn Ni Si Ti Zn…..
Grades	1-8 series aluminum alloy,2-4 series stainless steel, alloy steel, brass, titanium alloy, zinc alloy
LOD	0.01-0.1%
Datebase	UNS or customized
Sample shape	Blocky, Sheet(0.1mm), Arc-shaped and various shaped surfaces
Single test time	1s
Spectrum	<0.2nm resolution, 250~415nm
Laser safety	Class 3B,1064nm
Size (length, width, height)	227*86*234 mm, about 1.25kg( Including battery)
Battery capacity	14.8V,3250mAH(48W).Work continuously for more than 6 hours
Waterproof level	Tested by IP54 dustproof and waterproof (GB/T 4208-2008)
Connection	WIFI(IEEE 802.11b/g/n 2.4GHz), Bluetooth 4.0
Display	4.0 inch touch resistance screen,320*480 resolution
Memory	8GB
Language	Chinese, English, Deutsch, Spanish, Russian
Operating temperature	0~40ºC, recommended operating temperature is 5~35ºC
Consumables	No consumables
Bluetooth printing	Optional portable Bluetooth printer
Special panels	Customizable arc panels of various radii to fit pipe and curved material
Warranty service	Original one-year warranty, you can purchase additional warranty service

Compare with HHXRF:

	LIBS	Handheld XRF spectrometer
Safety	Without any ionizing radiation, 3B human eye safety laser	There is X photoionizing radiation, it needs to be safely protected during use, and employees need to undergo strict training and then go to work.
Detection speed	Just squeeze the trigger and one second later the result appears.	Long test time, 10 to 60 seconds per test
Maintenance cost	No wearing parts, the core unit has a service life of more than one million tests, and the maintenance cost of normal use is extremely low.	X-ray tube, fluorescent detector are all consumable, vulnerable parts, expensive replacement
Analyzable element	Covers almost all metal elements and can be used to identify grades and components	Important for the identification of heavy metal elements, such as stainless steel, alloy steel, but not suitable for testing light elements such as Mg, Al.
