• Model NO.：CL-2059A
• Type：Residual Chlorine Meter
• Transport Package：Carton Box
• Specification：144*144*104mm
• Trademark：BOQU
• Origin：China
• HS Code：9027809900
• Production Capacity：5000,Year

Basic Info.

Model NO. CL-2059A Type Residual Chlorine Meter Transport Package Carton Box Specification 144*144*104mm Trademark BOQU Origin China HS Code 9027809900 Production Capacity 5000/Year

Product Description

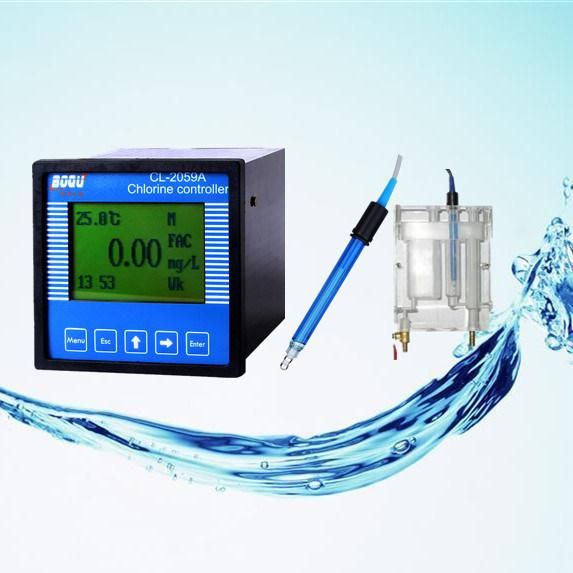

CL-2059A Industrial Residual Chlorine Analyzer

CL-2059A is a total new industrial residual chlorine analyzer, with high intelligence, sensitivity. It can measure residual chlorine and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring.


Highly intelligent: CL-2059A Industrial online residual chlorine analyzer adopts industry leading overall design

concept of the core components to ensure high-quality, import instruments.

High and low alarm: hardware isolation, each channel can be arbitrarily chosen measurement parameters, can be

hysteresis.

Temperature compensation: 0 ~ 50 ºC automatic temperature compensation

Waterproof and dustproof: good sealing instrument.

Menu: Easy operation menu

Multi-screen display: There are three kinds of instrument display, user-friendly display for the different

requirements.

Chlorine calibration: provide chlorine zero and slope calibration, clear menu design.



1. Measuring range

Residual chlorine: 0-20.00mg/L,      Resolution: 0.01mg/L;

Temperature: 0- 99.9 ºC         Resolution: 0.1 ºC

2.Accuracy: Chlorine: better than ± 1% or ± 0.01mg /L.

3.Temperature: better than ± 0.5 ºC (0 ~ 50.0 ºC)

4.Minmum detection: 0.01mg /L

5.Repeatability Chlorine: ± 0.01mg / L

6.Stability Chlorine: ± 0.01 (mg / L) / 24h

7.Current isolated output: 4 ~ 20 mA(load <750 Ω) current output, measurement parameters can be selected

independently (FAC, T)

8.Output current error: ≤ ± 1% FS

9. High and low alarm: AC220V, 5A, each channel can be selected independently measured parameters

corresponding (FAC, T)

10.Alarm hysteresis: can be set according to the selected parameters

11.Communication: RS485 (optional)

12.Working environment: Temperature 0 ~ 60 ºC, Relative humidity <85%

It can be convenient to computer monitoring and communication

13.Installation type: Opening type, panel mounted.

14.Dimensions: 96 (L) × 96 (W) × 118 (D) mm; Hole Size: 92x92mm

15.Weight: 0.5kg

Standard configuration:
chlorine analyzer, constant-current chlorine electrode, constant-current groove (3-hole), electrode cable (5m).
