Analysis Instrument

Home > Product > Other Analysis Instruments

Contact Resistance and Loop Resistance Test Device 100A~600A

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：12 Months
  • Test Standard：IEC 62271
  • Power Supply：AC220V±10%; 50Hz±10%
  • Measuring Range：0-1999.9 μΩ
  • Measuring Current：DC 100A, 200A, 400A, 600A

Base Info

  • Model NO.：CRT Series
  • Accuracy：0.5 %Rgd+0.05%Fs
  • Storage Capacity：More Than 100 Groups of Data
  • Weight：7kg
  • Dimension：340mm× 280mm × 210mm
  • Printer：Inbuilt
  • Display：LCD Screen
  • Application：Circuit Breaker Testing
  • Function：Test The Contact Resistance of Circuit Breaker
  • Transport Package：Plywood Case
  • Specification：Small
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：50 Sets,Month

Description

1Measuring range0-1999.9 μΩ; Resolution:0.1 μΩ2Measuring currentDC 100A, 200A, 400A, 600A for choice3Measuring precision0.5 %RGD+0.05%FS4Display modeLCD5Data storageSave no more than 100 groups of data6Data connectionRS232 computer interface7Rated power supplyAC220V8Size340mm× 280mm × 210mm9Environment temperature-10 ºC~+40 ºC10Relative humidity<80%

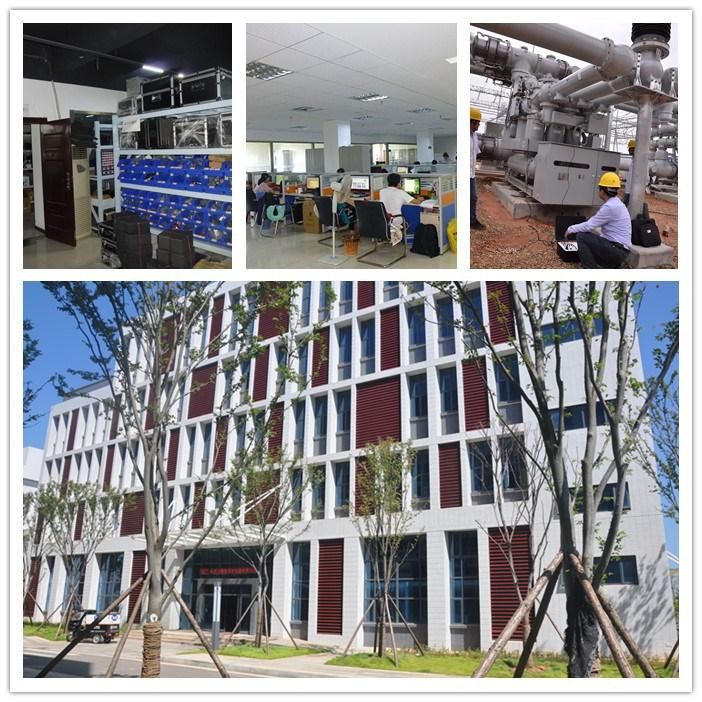

Factory overview

Contact Resistance and Loop Resistance Test Device 100A~600A
Customer Feedback

Chile
Contact Resistance and Loop Resistance Test Device 100A~600AGermany

Contact Resistance and Loop Resistance Test Device 100A~600A
USA
Contact Resistance and Loop Resistance Test Device 100A~600A
Transporation
Contact Resistance and Loop Resistance Test Device 100A~600A
FAQ
1.What's the delivery time?
About 15 working days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
