Y09-3016 Handheld 2.83L/Min Air Particle Counter

Zhejiang FUXIA Medical Technology Co., Ltd.
  • Warranty：1 Year
  • Brand：Sugold

Base Info

  • Model NO.：Y09-3016
  • Customized：Non-Customized
  • Portable：Portable
  • Certification：ISO 9001
  • Type：Electrochemical Gas Analyzer
  • Original Place：Zhejiang, China
  • Dimension：300*360*126mm3(Wide*Deep*High)
  • Clean Level：100
  • Model：Y09-3016
  • Flow Rate：2.83L,Min
  • Hold Time：0-999sec
  • Operating Time：5 Hours
  • Environmental：10degrees Celsius-40degrees Celsius
  • Weight：0.6kg
  • Light Source：Laser Diode
  • Transport Package：Carton
  • Specification：GMP
  • Trademark：SUGOLD
  • Origin：China, Zhejiang
  • HS Code：8414809090
  • Production Capacity：1000 Sets , Month
  • Package size per unit product：41.00cm * 37.00cm * 18.00cm
  • Gross weight per unit product：3.100kg

Description

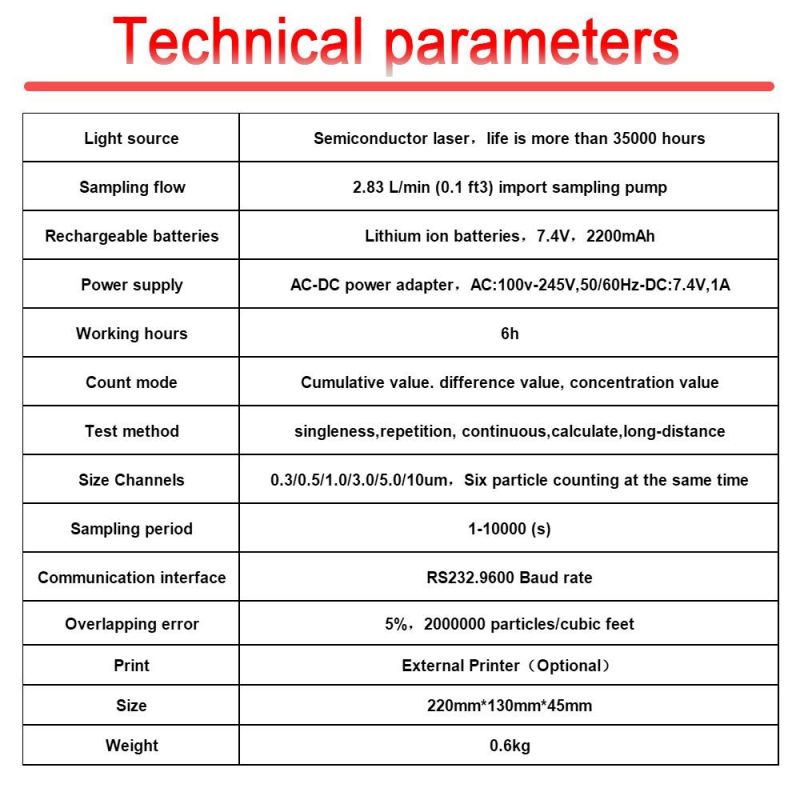

Technical Parameterslight sourceSemiconductor laser, life is more than 35000 hourssampling flow2.83 L/min (0.1 ft3) import sampling pumprechargeable batteriesLithium ion batteries, 7.4V, 2200mAhpower supplyAC-DC power adapter, AC:100V-245V,50/60Hz-DC:7.4V,1Aworking hours6hcount modeaccumulative, difference value, densitytest methodsingleness,repetition,continuous,calculate,long-distanceSize Channels0.3/0.5/1.0/3.0/5.0/1Oum, Six particle counting at the same timesampling period1-10000 (s)communication interfaceRS232.9600 Baud rateOverlapping error5%, 2000000 cubic feetprintExternal Printersize230mm*130mm*45mmweight0.6kg
