• Model NO.：K800
• Voltage：DC 24V
• Operating Temperature：-20 Degree ~ +50 Degree
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Exd Iict6
• Certificate：Ce,UL
• Warranty：1 Year
• Detection Range：0-200ppm
• Low Alarm：10ppm
• High Alarm：50ppm
• Outer Case：Aluminum Alloy and Stainless Steel
• Transport Package：Carton
• Specification：1.8kg
• Trademark：Kelisailke, or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：1000PCS

Basic Info.

Model NO. K800 Voltage DC 24V Operating Temperature -20 Degree ~ +50 Degree Signal Output 4 to 20mA Explosion-Proof Grade Exd Iict6 Certificate Ce,UL Warranty 1 Year Detection Range 0-200ppm Low Alarm 10ppm High Alarm 50ppm Outer Case Aluminum Alloy and Stainless Steel Transport Package Carton Specification 1.8kg Trademark Kelisailke, or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 1000PCS

Product Description

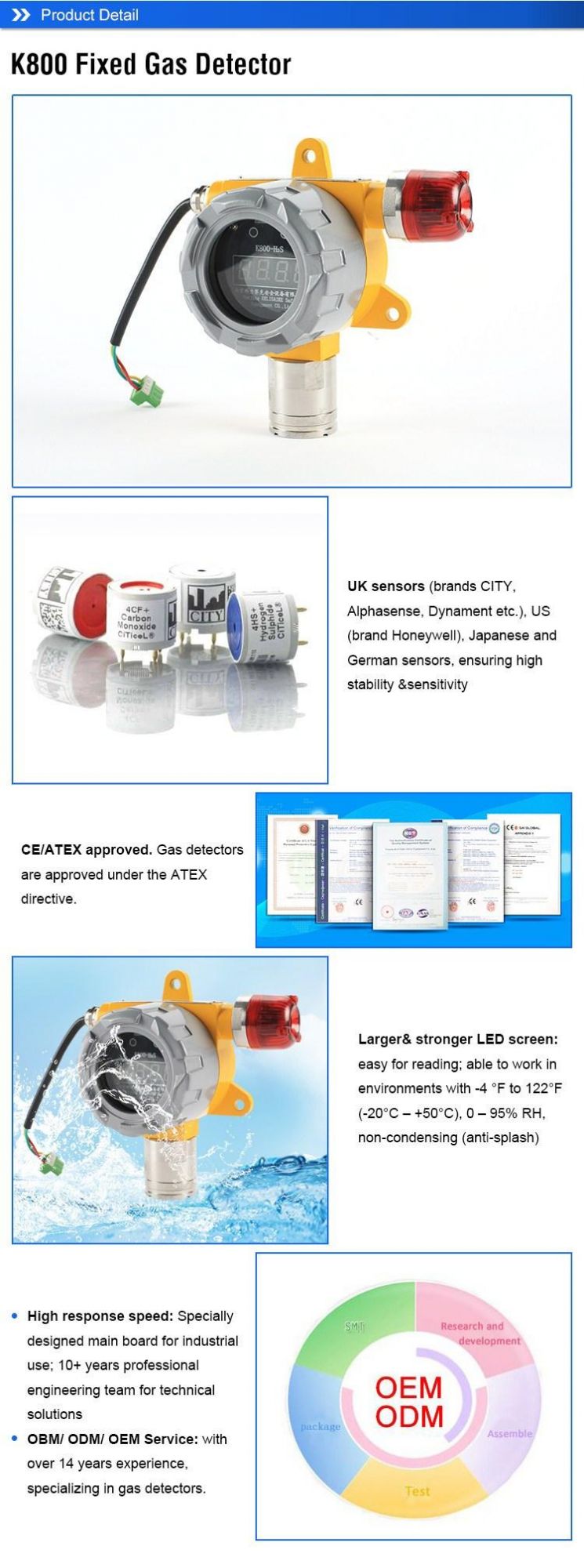

Industrial Fixed LPG Leak Detector K800
K800 Series Fixed Gas detector provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors-and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.



>>>Key Features
1)  Providing digital LCD displayer, alarm facility with sound and light, and solid relay output on the spot, allowing contol the equipments easily.
2)  Supporting 4 to 20mA analog signal output (DC24V), connecting with the remote host contoller, and having direct access to the DCS.
3)  Connecting  3 - core shield cable, 3x1.0mm.
4)  Special transmitter mounting kit making the installation and performing calibration easier and better.
5)  Ambient temperature: -20°C~+50°C
6)  Explosion-proof grade: ExdIICT6
7)  High sensitivity, short response time and good stabilization

Detailed types of the K800 series Fixed Gas Detector:
K800-[gas type]-[mount pattern]
N: with non-dispalay
D: with LED display
DA:alarm with light and sound

>>>Technical Specification

Power supply	24VDC
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~+50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Exd IICT6
Warranty	1 year


COMMONLY USED GAS DETECTION LIST

No.	Detection gas	Range	Accuracy	90% response time	Min readout	Low/high alarm
1	PH3	0-5-2000ppm	±5%(F.S)	≤25s	0.01ppm	0.3/5ppm
2	O2	0-30%	±5%(F.S)	≤15s	0.1%vol	18.0%/23.0%
3	LPG(LEL/CH4)	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
4	CO	0-1000 ppm	±5%(F.S)	≤25s	1 ppm	50ppm/100ppm
5	H2S	0-100 ppm	±5%(F.S)	≤30s	1 ppm	10ppm/20ppm
6	CH4	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
7	NH3	0-100ppm	±5%(F.S)	≤50s	1 ppm	25 ppm /50 ppm
8	O3	0-20ppm	±5%(F.S)	≤60s	0.01ppm	0.2ppm/0.4ppm
9	CI2	0-20 ppm	±5%(F.S)	≤30s	0.1 ppm	1 ppm /10 ppm
10	H2	0-1000 ppm	±5%(F.S)	≤60s	1 ppm	50 ppm /100 ppm
11	SO2	0-100 ppm	±5%(F.S)	≤30s	0.1 ppm	2 ppm /10 ppm
12	NO	0-250 ppm	±5%(F.S)	≤60s	1 ppm	25ppm/50 ppm
13	NO2	0-20 ppm	±5%(F.S)	≤25s	0.1 ppm	3ppm/10ppm
14	Infrared CO2	0-5%vol	±5%(F.S)	≤60s	0.1%vol	1%vol/2%vol
15	Infrared CH4	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
16	Infrared C3H8	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
17	PID(VOCs)	1-1999ppm	±5%(F.S)	≤20s	0.1ppm	customize

>>> Our Services
1.For all our customers, our products have 1 year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hours.
3.Providing technical support, professional engineers are specialized in dealing with gas monitoring problems you met.
4. OEM and ODM service are welcome
5.KELISAIKE plant is located in Nanjing, only 1 hour by high speedtrain from Shanghai. Welcome to visit the factory.
6.All products are well tested and packed before shipment; the certificate of inspection will be provided.

>>> Calibration
Do you know how to calibrate your portable gas detectors?
Please contact us to ask for help.
