• Model NO.：P860
• Sampling Gas Flow：150~300ml,Min
• Sensitive：0.01% O2
• Signal Outputs：4-20mA
• Sensor Life：3 Years (in Normal Condition)
• Warranty：12 Months Analyzer; 12 Months Sensor
• Response Time：90% of Fs Reading in 20 Seconds
• Sensor Principle：Ion Current Oxygen Sensor
• Appearance Dimension：160mm×80mm×176mm (W×h×d)
• Opening Size：151mm×75mm
• Transport Package：Carton
• Specification：ISO9001
• Trademark：BROTIE
• Origin：China
• HS Code：8414809090
• Production Capacity：10000sets,Year

Basic Info.

Model NO. P860 Sampling Gas Flow 150~300ml/Min Sensitive 0.01% O2 Signal Outputs 4-20mA Sensor Life 3 Years (in Normal Condition) Warranty 12 Months Analyzer; 12 Months Sensor Response Time 90% of Fs Reading in 20 Seconds Sensor Principle Ion Current Oxygen Sensor Appearance Dimension 160mm×80mm×176mm (W×h×d) Opening Size 151mm×75mm Transport Package Carton Specification ISO9001 Trademark BROTIE Origin China HS Code 8414809090 Production Capacity 10000sets/Year

Product Description

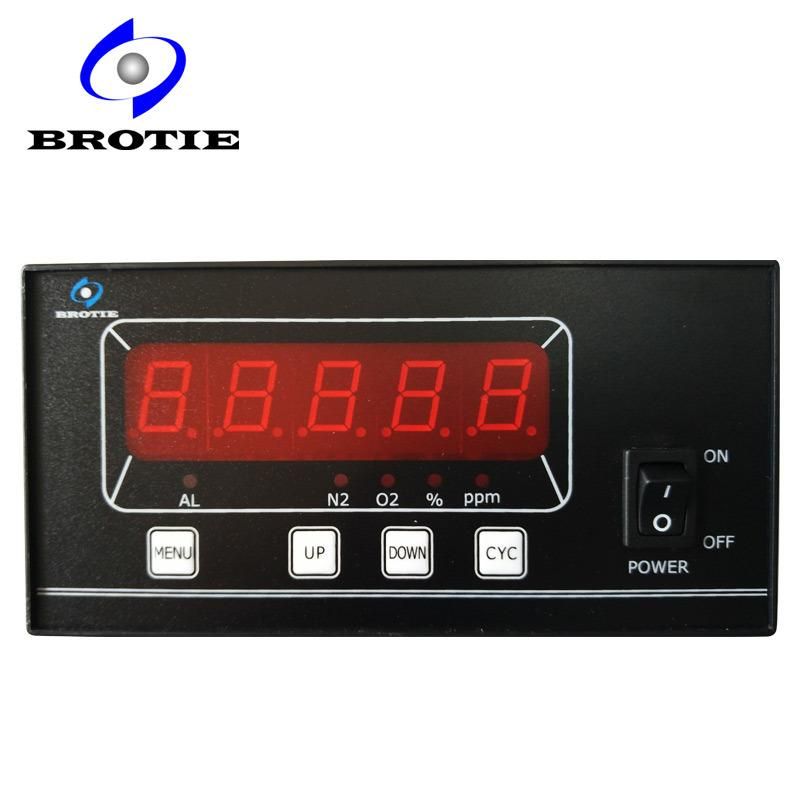

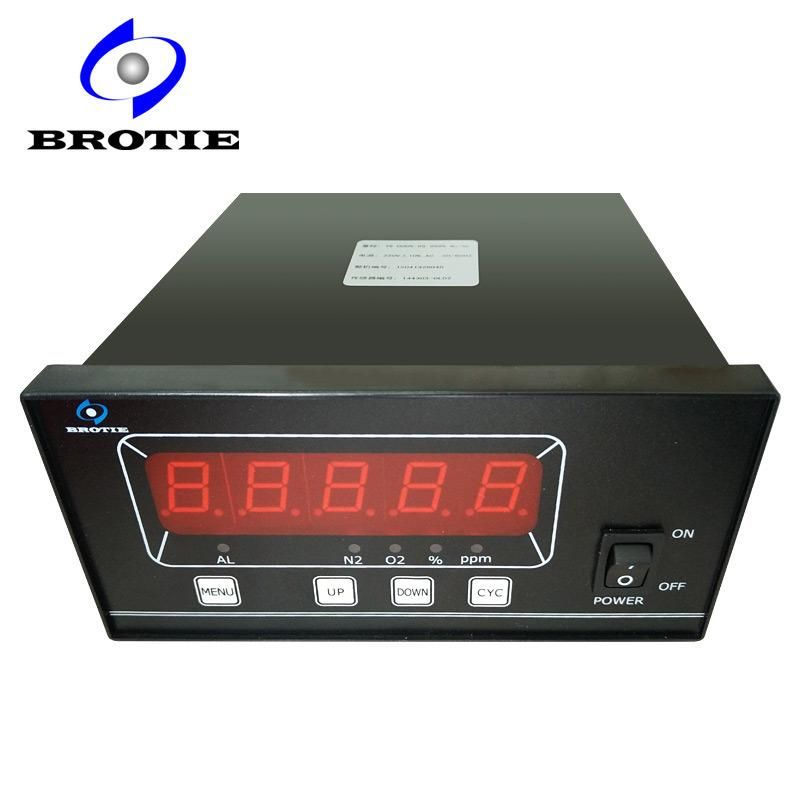

BROTIE Oxygen/ Nitrogen Gas Analyzer

Features
* New pattern long-life conversion ion current tester with fast response and high sensitivity
* N2 or O2 concentration display
* Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
* Setting alarm value freely
* High precision, automatic temperature compensation, eliminating the impact of environmental temperature

Technical Specifications
Monitor:                               Five-digital dynamic LED monitor, visible display
window:                               90mm×25mm
Measure Range:                 10~2000ppm, 0~2%, 0~21% O2
Sensor Principle:                 Ion current oxygen sensor
Measure Mode:                    Air inflowing or convection diffusing
Sample Gas Flow:              150~300ml/min
Accuracy:                           ±5% in 10~2000ppm O2 range
                                             ±2% in 0~2%O2 range
                                             ±1% in 0~21%O2 range
Response Time:                   90% of FS reading ≤20 seconds
Ambient Temp.:                  -10ºC~+50ºC
Ambient Humidity:              <80%RH
Stability:                                <±1%.FS (168h)

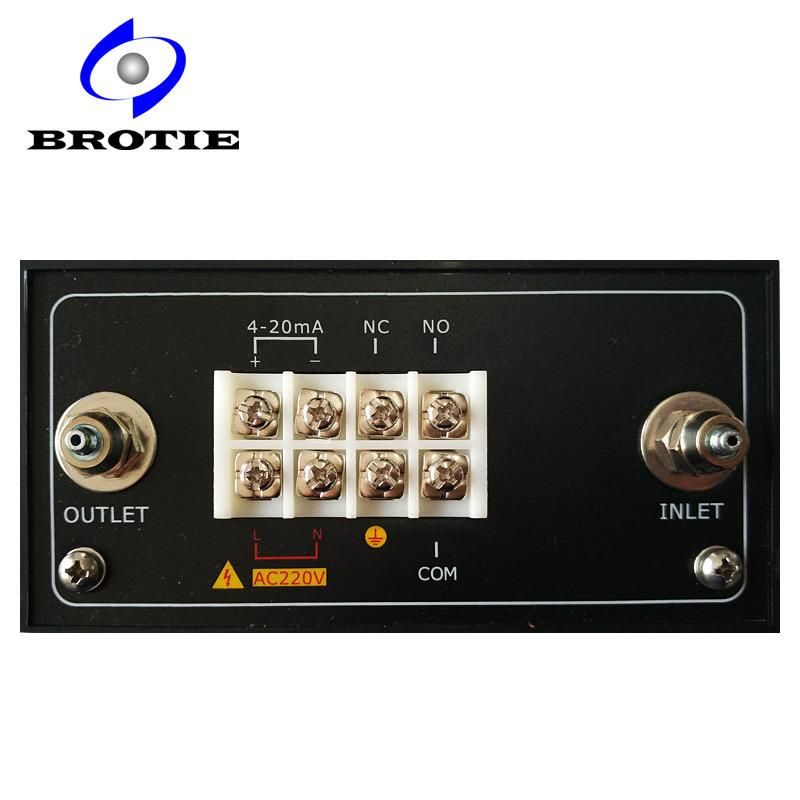

Signal Output:                       4~20mA
Power Supply:                       220±10% VAC, 50/60Hz, the power loss ≤6VA
Sensor Life:                           20000 hours at 25ºC and 1 atm
Warranty:                              12 months analyzer; 12 months sensor
Weight:                                  1kg
Appearance Dimension:         160mm×80mm×176mm (W×H×D)
Opening Size:                           151mm×75mm

Model choice

Item	Model	Measure range
1	3O	21.0%~1000ppm O2
2	4O	21.00%~100ppm  O2
3	5O	21.000%~10ppm   O2
4	3N	79.0%~99.9%   N2
5	4N	79.00%~99.99%  N2
6	5N	79.000%~99.999% N2



Notice: Some suppliers without honest showed the pictures of BROTIE products to customers by very low price but with cheap copy products providing. Please pay attention on the lable of the compressors with BROTIE brands to avoid the lost.



  BROTIE products, made in China, focus on world.
