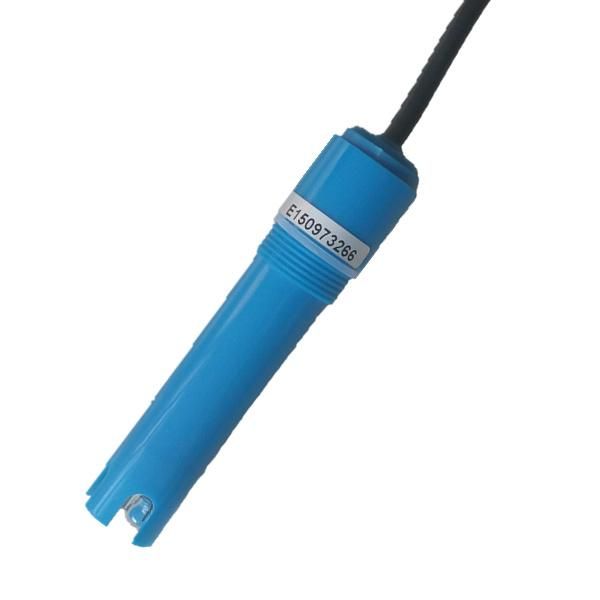

High Quality Smart Sensor for Swimming Pool (PRT2121D, PRCT2121D)

Nengshi Analytical Sensor Co., Ltd.
  • Display：Multi-Parameter Water Quality Analyzer
  • Appliance：Food Analysis, Medical Research, Biochemistry
  • Portable：Portable
  • Certification：RoHS
  • Type：Smart Sensor
  • Transport Package：Paper Box

Base Info

  • Model NO.：PRT2121D, PRCT2121D
  • Specification：25*165
  • Trademark：NENGSHI
  • Origin：Wuhan China
  • Production Capacity：3000 Pieces,Year

Description

Technical feature:·pH range: 0~14.·The temperature range: 0~80ºC.·Long life.·Sensitive response: the 95% measured value can be reached up in several seconds.·Contimuous and stable measurement.·Pressure resistance: 0.6MPa and the zero point E0=7pH.·The external dimension: φ12x120 or other dimension.High Quality Smart Sensor for Swimming Pool (PRT2121D, PRCT2121D)
· It can output directly RS485 signal, and aslo can convert to WIFI or GPRS signal.
· It is combintion sensor with pH,ORP, temperature and conductivity.
· Unique structure prevents the sensor from easy pollution and blockage,Long life.
· It is unnecessary to refill electrolyte, convenient use.
· pH range:0~14pH; Pressure  range:0.6Mpa.
· Temperature range: 0~80ºC.
· ORP rang: -1500mv ~ +1500mv.
· Conductivity rang: 0 ~ 20000us/cm.
· The external dimension of the sensor is φ25x165.
· The thread is 3/4NPT, Outer tube material:PPS plastic.
Selection of model:
· PRT2121D   pH,ORP, temperature three in one digital sensor
· PRCT2121D   pH,ORP,conductivity ,temperature four in one digital sensor
