• Model NO.：PH,ORP-600
• Accuracy：pH : +-0.1 pH , Orp: +-2mv
• Temp. Comp.：0-100c, Manual , Automatic ( PT1000 , Ntc 10K,
• Operation Temp.：0~60c(Normal) , 0~100c(Optional)
• Sensor：The Composite Electrode (Sewage, Pure Water)
• Calibration：4.00;6.86;9.18 Three Calibration
• Current Output Signal：Isolation 4~20mA
• Control Output Signal：on,off High, Low Limit Relay
• Power：AC 110,220V+-10%, 50,60Hz
• Working Environment：Ambient Temp. 0~50c, Relative Humidity,<=85%
• Overall Dimensions：48X96X100mm (H X W X D)
• Hole Dimensions：45X92mm (H X W)
• Installation Mode：Panel Mounted (Embedded)
• Transport Package：Carton
• Specification：48*96*100mm
• Trademark：JIRS
• Origin：China
• HS Code：9028901000
• Production Capacity：100sets,Week

Basic Info.

Model NO. PH/ORP-600 Accuracy pH : +-0.1 pH , Orp: +-2mv Temp. Comp. 0-100c, Manual / Automatic ( PT1000 , Ntc 10K, Operation Temp. 0~60c(Normal) , 0~100c(Optional) Sensor The Composite Electrode (Sewage, Pure Water) Calibration 4.00;6.86;9.18 Three Calibration Current Output Signal Isolation 4~20mA Control Output Signal on/off High, Low Limit Relay Power AC 110/220V+-10%, 50/60Hz Working Environment Ambient Temp. 0~50c, Relative Humidity,<=85% Overall Dimensions 48X96X100mm (H X W X D) Hole Dimensions 45X92mm (H X W) Installation Mode Panel Mounted (Embedded) Transport Package Carton Specification 48*96*100mm Trademark JIRS Origin China HS Code 9028901000 Production Capacity 100sets/Week

Product Description

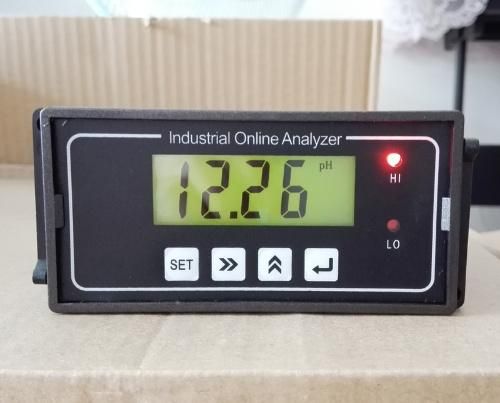

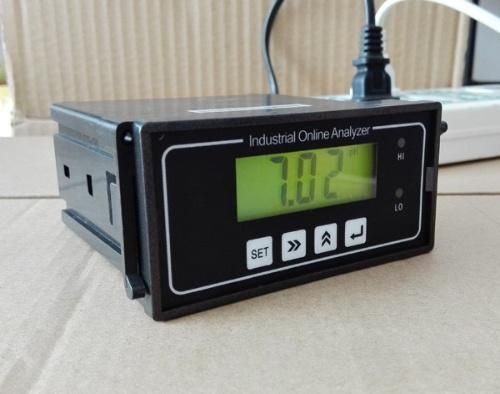

Online PH Monitoring and controlling Meter
Code: PH/ORP-600

Character & Application:
1. Industrial online PH Monitoring and controlling instrument.
2. Three-point calibration function, automatic identification of calibration liquid and the error calibration
3. High input impedance, the adaptation of various types of PH electrode
4. The upper limit and low limit alarm relay control output functions, alarm return difference setup by keyboard, to form automatic closed-loop control system is more flexible and convenient.
5. Widely used for water treatment, environmental protection, Industrial waste water, chemical process detection and control of PH value.

Main Technique Specifications:

Model                          Function	PH/ORP-600  Single channel PH or ORP Controller
Range	0.00~14.00pH, ORP:-1200~+1200 mV
Accuracy	pH : ±0.1 pH , ORP:±2mV
Temp. Comp.	0-100 ºC, manual / automatic  ( PT1000 , NTC 10k, RTD )
Operation Temp.	0~60ºC(normal) , 0~100ºC(optional)

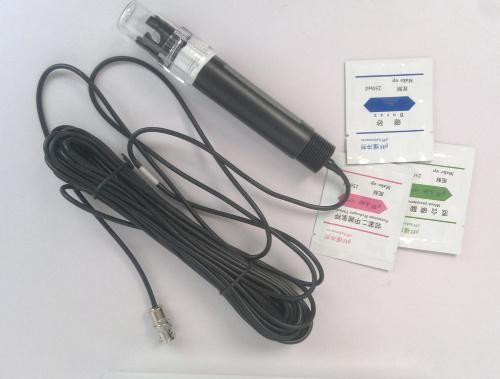

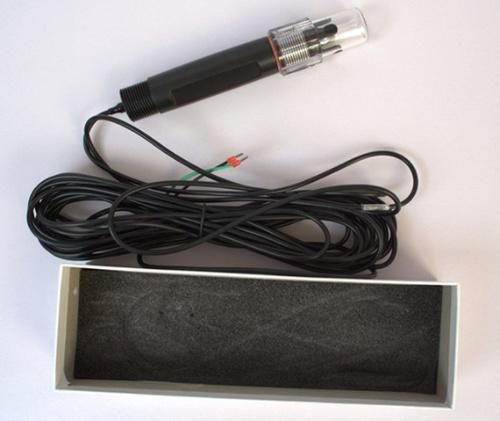

Sensor	The composite electrode (Sewage, Pure water)
Calibration	4.00;6.86;9.18 Three Calibration
Display	3½ Bit LCD
Current output signal	Isolation 4~20mA
Control output signal	ON/OFF High, low limit relay
Power	AC 110/220V±10%, 50/60Hz
Working environment	Ambient Temp. 0~50ºC, Relative Humidity ≤85%
Overall dimensions	48×96×100mm (H X W X D)
Hole dimensions	45×92mm (H X W)
Installation Mode	Panel Mounted (Embedded)

Pictures:
