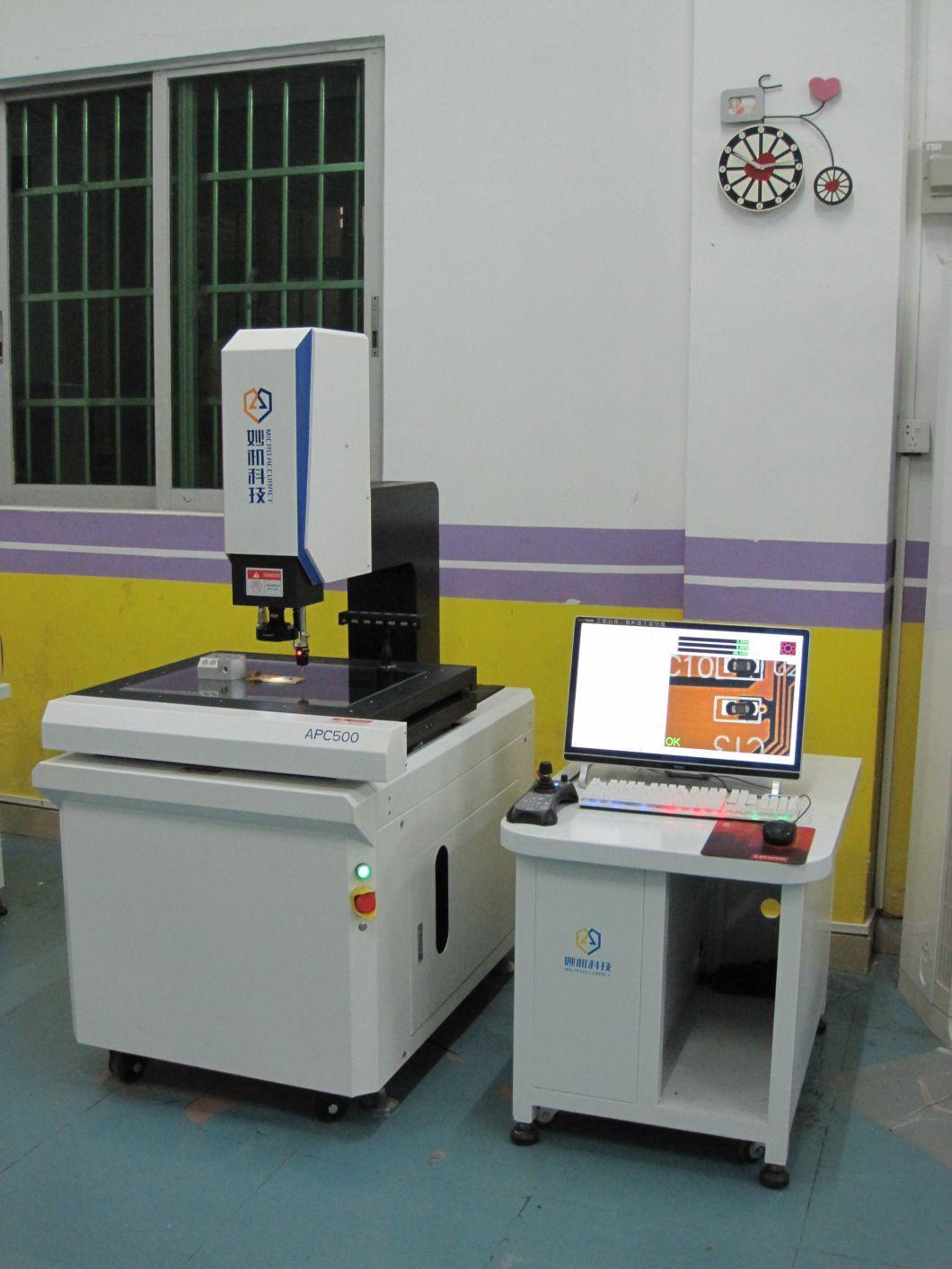

• Model NO.：APC500
• Measuring Unit：Built-in Linear Scales
• X, Y-Axis Accuracy(µ M)：(2.5 + L,200 )μm
• Repeatability：0.003mm
• Stage Glass：756*656mm
• Transport Package：Standard Exporting Package
• Specification：SGS
• Trademark：Leader
• Origin：Guangdong
• HS Code：9031809090
• Production Capacity：800 PCS,Year

ModelAPC300APC400APC500Stage Size (mm)506*356606*456756*656Glass Size (mm)330*230430*330530*430Travel (mm)X axis300400500Y axis200300400Z axis200 200 200 Driving SystemCNC(Servo Motor Control)Load(KG)152025Speed280 mm/sResolution of X/Y/Z-axis0.001 mm (1μm)Positioning Accuracy0.001 mm (3 μm)Accuracy(2.5 + L/200 )μm       L=Measuring lenght(mm)SoftwareLeaderView Automated Metrology softwaeVideo System• CCD Camera: High resolution CCD camera
• Zoom Lens: 0.7X-4.5XIlluminationCounter illumination: programmable light source     Reflective illumination: programmable LED ring lightWeight (KG)260320380Power Supply110V-120V/220V-240V AV, 50/60 Hz
Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!

5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

After-sale Service

1. Free professional operation training

2. Warranty: 18 months instead of 12 months

3. Regularly upgrade of software is available free

4. Available lifetime technical support

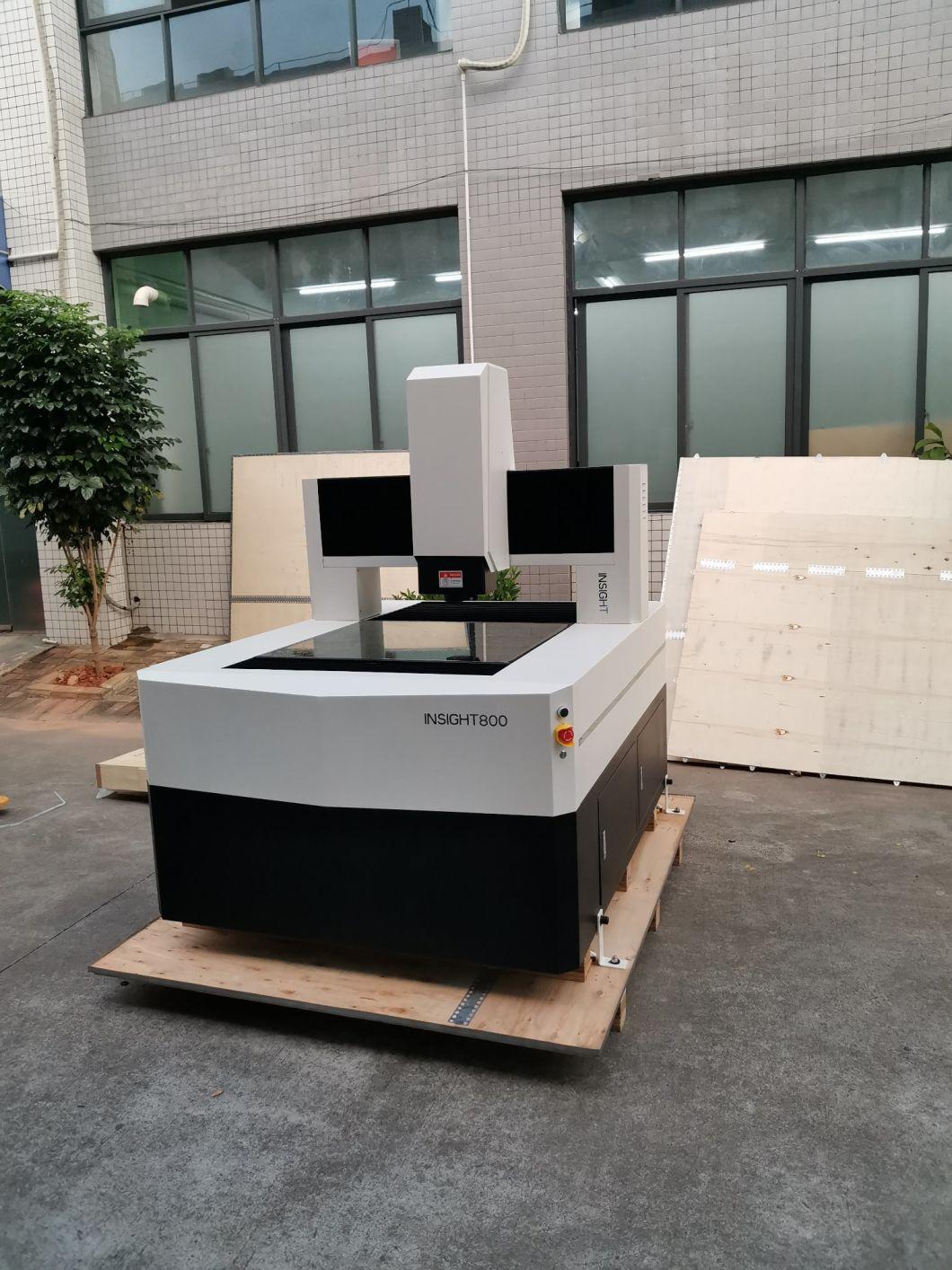

Machines are ready for dispatch

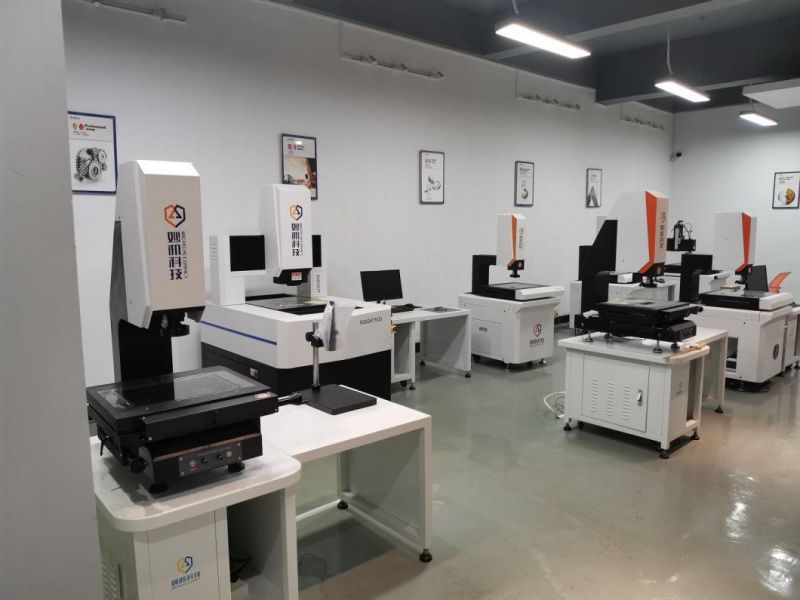

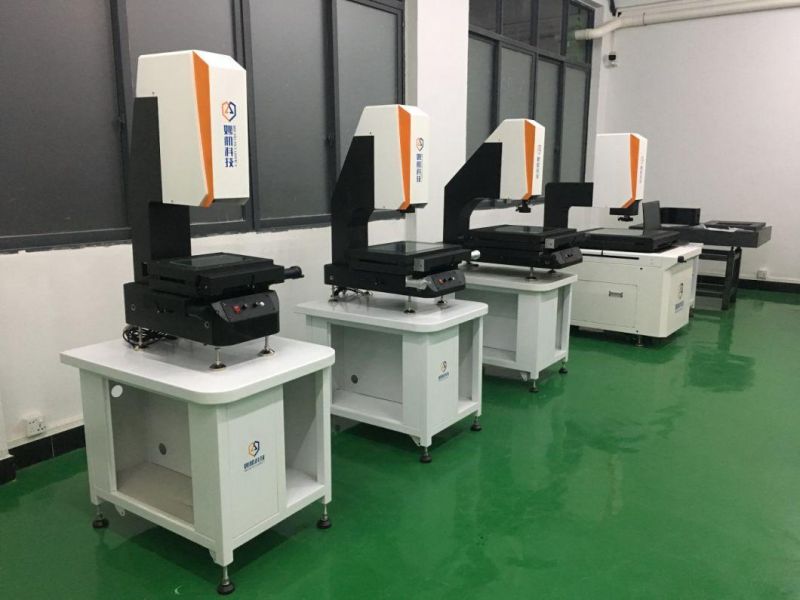

Exhibition room
