• Model NO.：HKY series
• Type：Electrochemical Gas Analyzer
• Power Supply：220V 50Hz
• Transport Package：Fumigated Wooden Box
• Specification：2.5x1.2x2.1m
• Trademark：SW
• Origin：China
• HS Code：90278899

Basic Info.

Model NO. HKY series Type Electrochemical Gas Analyzer Power Supply 220V 50Hz Transport Package Fumigated Wooden Box Specification 2.5x1.2x2.1m Trademark SW Origin China HS Code 90278899

Product Description

Specification: Capacity: 260 ml or better, Flow Range (ml/hr): 0.6 - 1500 ml/hr (0.01 ml/min to 25 ml/min) or better, Pressure Range (psi): 0 - 8,000 or better, Operating Temperature: 40 - 150° C or higher

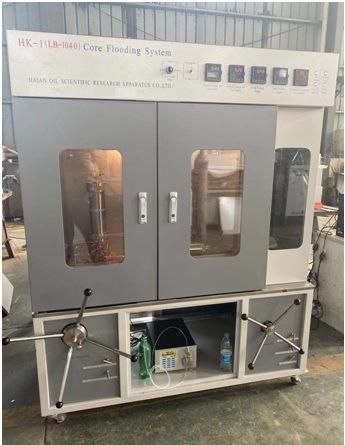

2. Core Holder: 01 in quantity. Type: Multi-Pressure Point Hydro-Static Core Holder
· Core holder stand for mounting core holder in horizontal and vertical position
· Core Holder Port multiple: 05 port along the core length (including port at inlet and outlet as shown in figure 1)
· Pressure taps: Up to 5, equally spaced along the core length (including pressure port at inlet and outlet as shown in figure 1)
· Maximum operating pressure (Overburden Pressure or confining pressure): 10000 psi
· Maximum operating Temp: 150˚C or higher
· Insert Core Dia: 1.5" core
· Insert Core Min. length = 1" inch to Core max. Length = 18" inch (45.72 cm)

3. Core Viton Sleeve for 1.5" core: 10 in quantities, length same as core holder length, up to 18", Pressure: up to 10000 psi

4. Confining pressure System: 01 in quantity. To provide confining pressure around the core sample Hydraulic Hand Pump/Hand Pressure Pump for make confining Pressure Maximum confining pressure up to 10000 psi

5. Pressure Transducer, for confining Pressure: 01 in quantity, Range: 0-10000 psi

6. Diff. Pressure transducer: 01 quantity
 Working under pressure (line pressure) = 0-5000 psi
· Measuring Diff. pressure Range = 0-500 psi

7. Floating Piston Fluid Accumulator: 03 in quantity. One for brine, one for crude oil and one for injection fluid
· Floating Piston Accumulator Max. Operating Pressure = 10000 psi
