• Model NO.：SKY3000-M4
• Gas：Co H2s O2 CH4
• Type：Elctrochemical & Catalytic
• Product Color：Black and Grey
• Outside Package：Carton
• Gross Weight：2 Kg
• Name：Multi-Gas Detector
• Transport Package：Aluminum Suitcase Packing
• Specification：365g
• Trademark：Safegas
• Origin：China
• HS Code：9027100010
• Production Capacity：1000 Pieces, Day

Basic Info.

Model NO. SKY3000-M4 Gas Co H2s O2 CH4 Type Elctrochemical & Catalytic Product Color Black and Grey Outside Package Carton Gross Weight 2 Kg Name Multi-Gas Detector Transport Package Aluminum Suitcase Packing Specification 365g Trademark Safegas Origin China HS Code 9027100010 Production Capacity 1000 Pieces/ Day

Product Description

Why choose us?A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market C Quality: international top brands sensor and IC /100% production test, make sure a good qualityD Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety and health
Product Description

Product overview

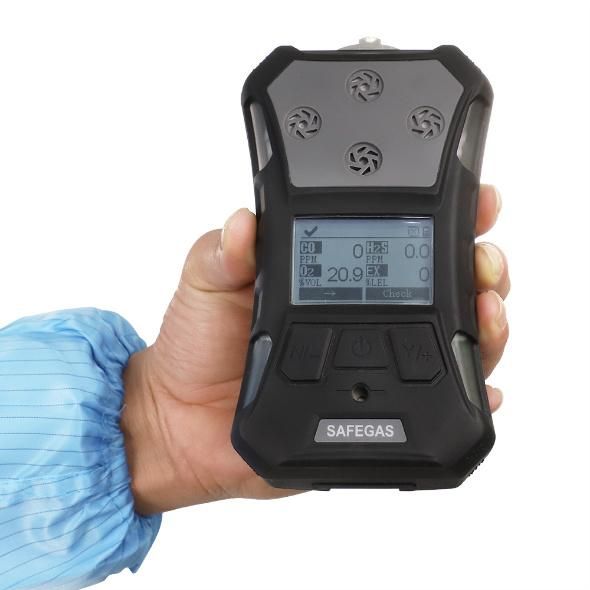

SKY3000 series is a portable gas detector which can show real-time data and send alarms when the reading reaches the set value. The device is a suction and diffusion dual purpose instrument. When the pump fails to work, it can automatically switch to the diffusion sampling mode. It is also with back clip so user can conveniently carry. It is IECEX, ATEX explosion-proof certified and its protection level reaches IP67. It is with datalog function. Which is not only able to store data on device but also transfering data to PC by USB wire.

Product advantage

1. Rugged and durable, protection level IP67, can pass three-meter drop test and EMC anti-static interference test. It's also IECEX, ATEX certified, explosion-proof level reaches Exia IICT4 Ga
2. Multiple security protection including man down alarm function, password protection function, safety reminder function, alarm function, high and low alarm latched function upgrades the safety of operators.
3. Simultaneous upto 4 gas can be monitored, multiple numerical display including real-time data, TWA, STEL, MAX, MIN multiple numerical.
4. The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
5. Built-in powerful sampling pump, fast detection speed. It can be connected to 20m sampling tube externally, which is convenient for long-distance or confined space detection.
6. Pump suction and diffusion dual use, to provide operators with more reliable protection
7. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
8. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
9. Standard storage function, one-click data export, convenient for users to analyze
10. automatic prompts for voltage and pump failure alarms makes it more user friendly.
11. Support PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system.
12. Support multiple language switch.

Specificiation

Sampling method	pump suction & diffusion dual-use type
Gas type	CO,H2S,O2,CH4
Measure range	CO:0-1000ppm,H2S:0-100ppm,O2:0-30%VOL,CH4:0-100%LEL
Resolution	CO:1ppm,H2S:0.01ppm,O2:0.01%VOL,CH4:1%LEL
Response time	≤30 seconds
Precsiion	≤±2%F.S
Language	Chinese/English
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched
Disaply	monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67
Working temperature	-20ºC~+50ºC
Humidity	0~90%RH(no condensation)
Environmental pressure	86~106Kpa
Size	157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)

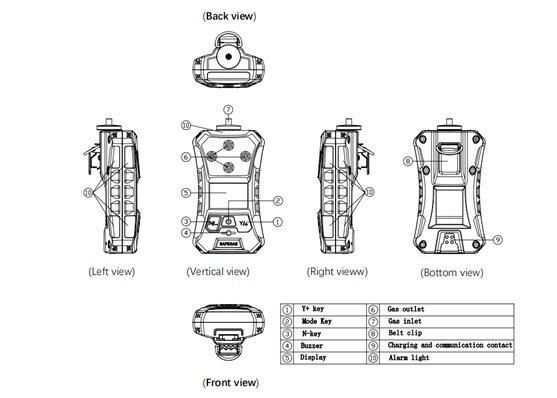

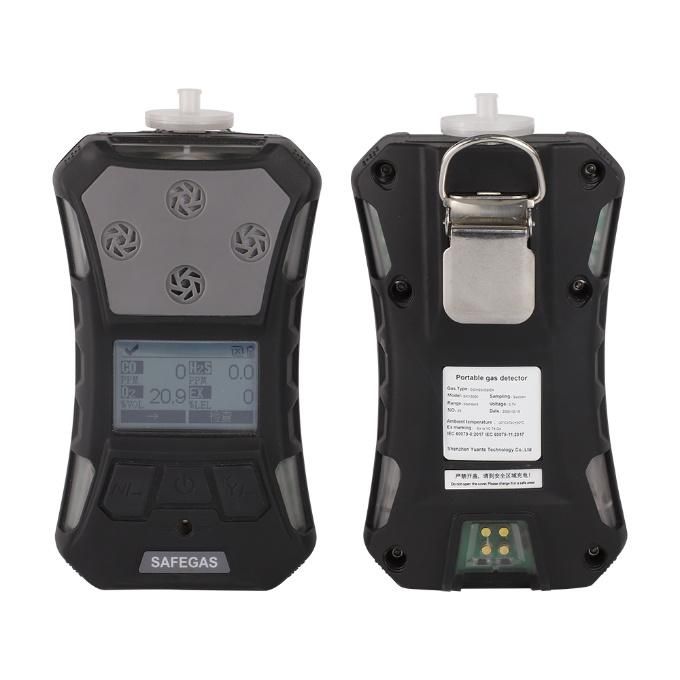

Product details

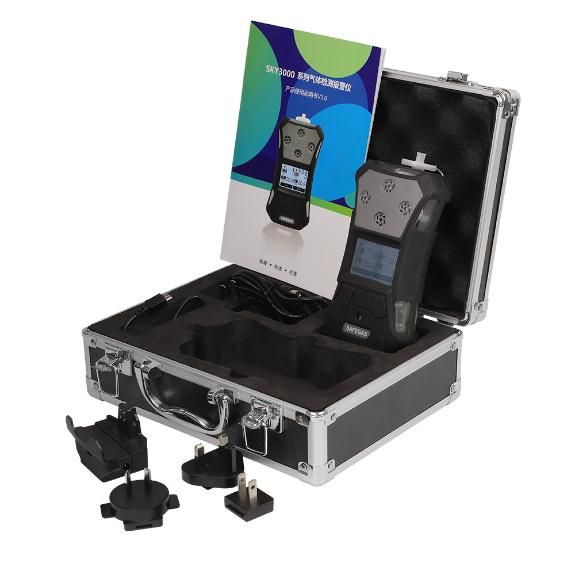

Package
