• Model NO.：ZJSJ008
• Specification：150X300X200mm
• Trademark：SUGOLD
• Origin：China
• Production Capacity：1000sets,Month

Basic Info.

Model NO. ZJSJ008 Specification 150X300X200mm Trademark SUGOLD Origin China Production Capacity 1000sets/Month

Product Description

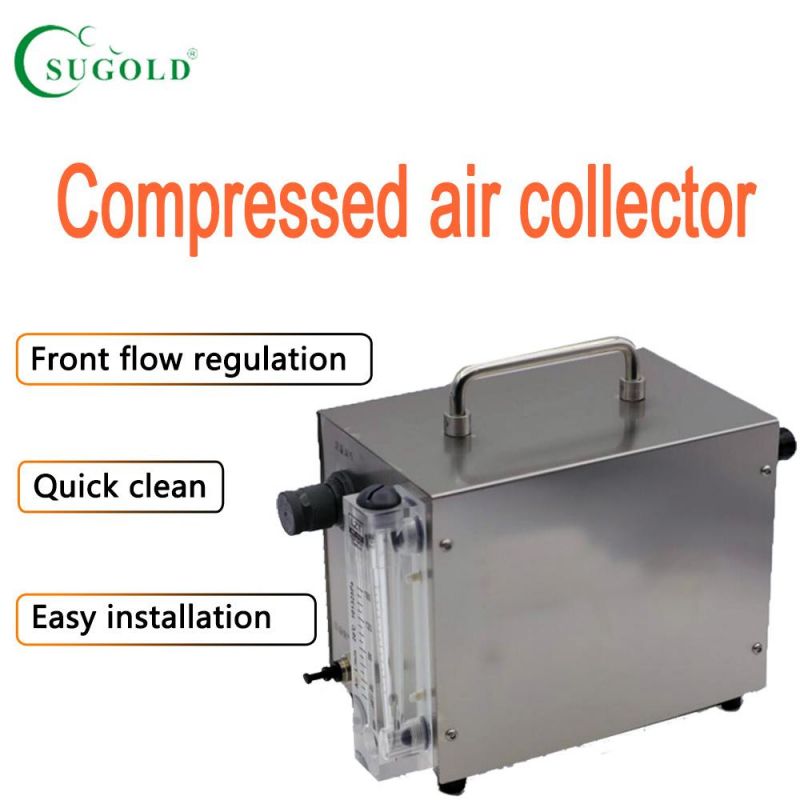

Zjsj008 High Quality Air Compressed Collector
According to the specifications of the new GMP, the cleanliness of the compressed air and the microorganism need to be determined.

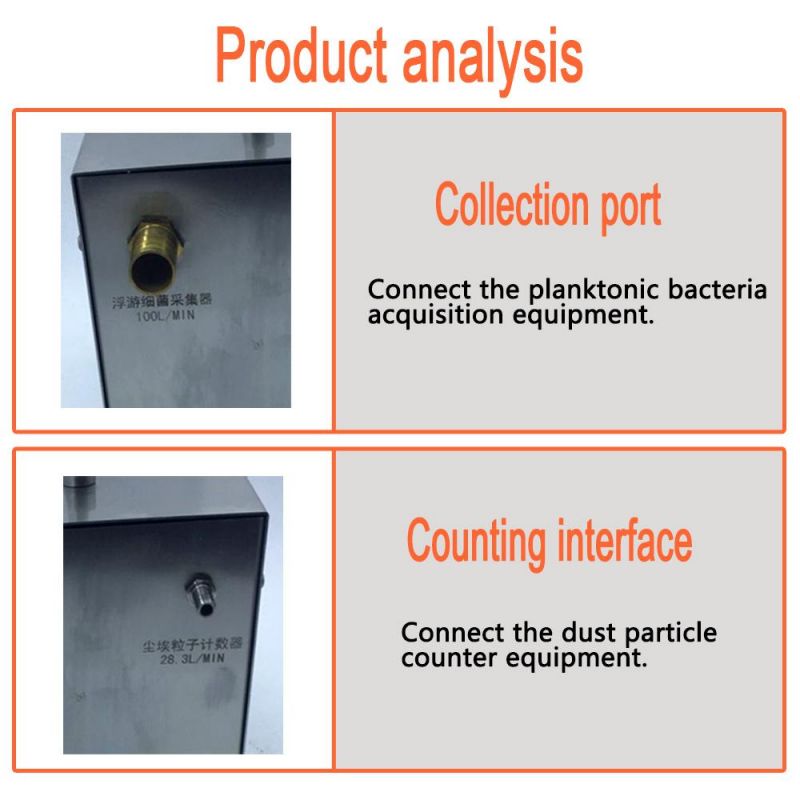

1.Cleanliness: the range of particle size: greater than 0.3 um, flow: 28.3 L/min, 50L/min, 100L/min.
2.Microbiological detection: 50L/min, 100L/min phytoplankton sampler.
In the sampling process, the input gas is not wasted, and 100% of the input gas is applied to the process sampling. The products are widely applicable and safe and reliable.The core components are imported from the original.

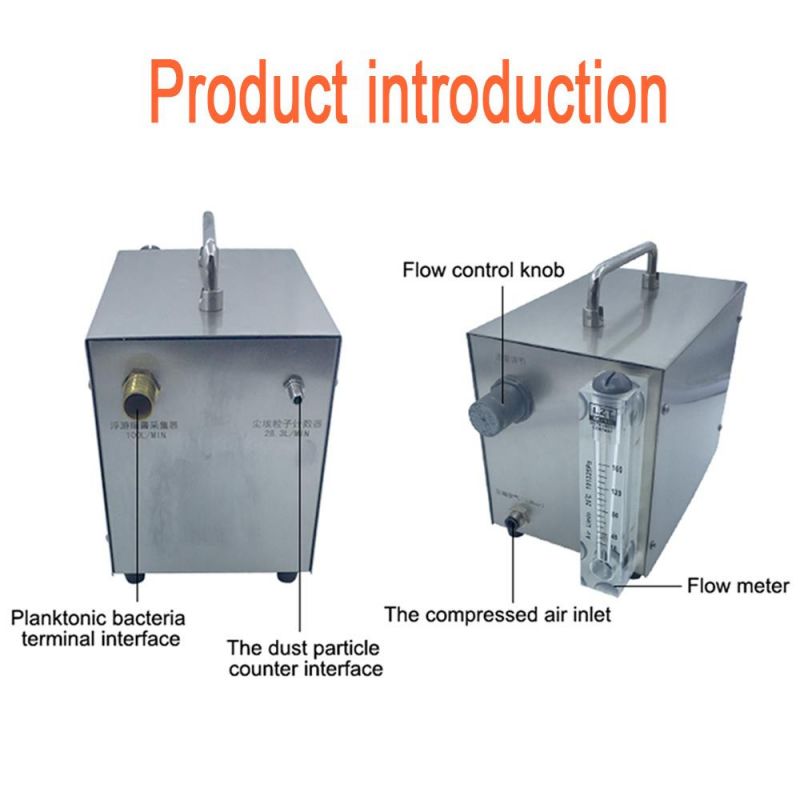

ZJSJ-008 Compressed Air Collector

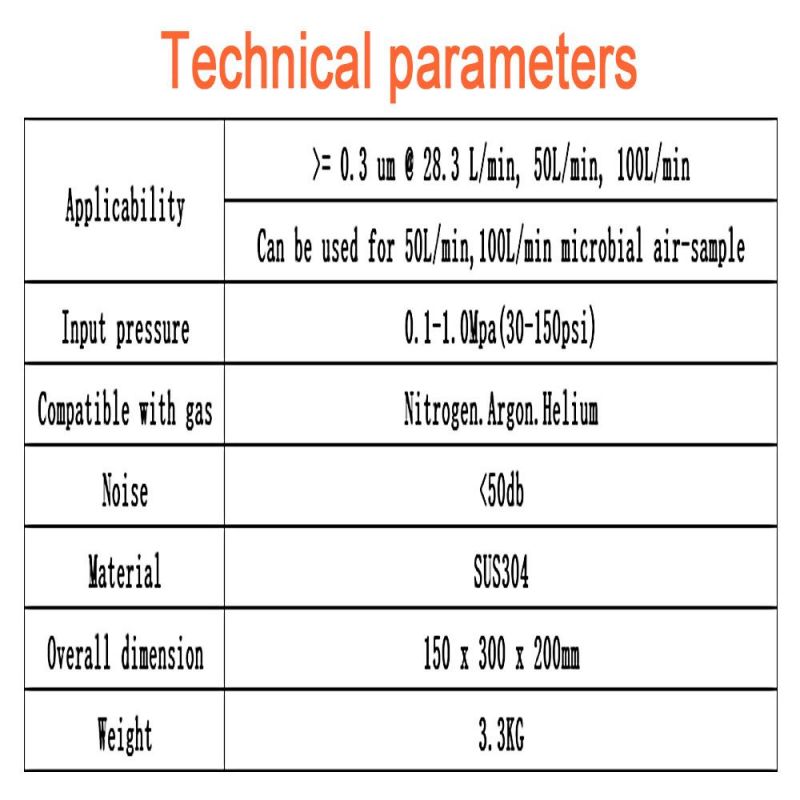

Applicability: A.greater than or equal to 0.3 um @ 28.3 L/min, 50L/min, 100L/min; B can be used for 50L/min, 100L/min plankton sampler;
Input pressure: 0.1-1.0 MPa (30-150 psi)
Compatible gas: helium argon helium gas
Noise range: less than 50 db
Shell material: SUS304
Size: 150X300X200 (mm)
Weight: 3.3 Kg
Three, compressed air collector zjsj-008 zhejiang su net relief valve characteristics

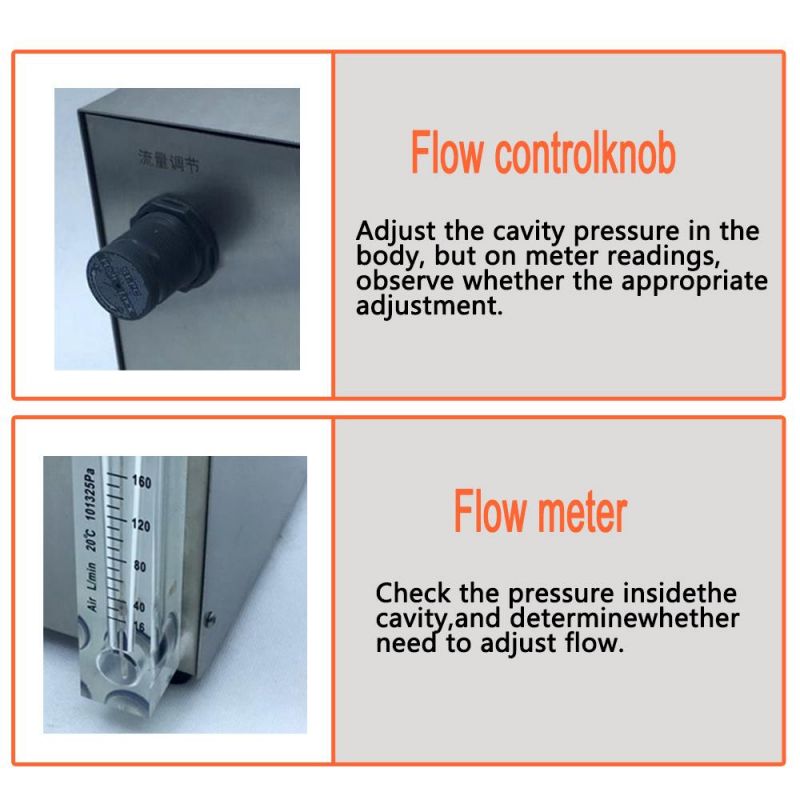

The installation is easy to initiate the preset flow control and the easy and quick cleaning of the operation.
