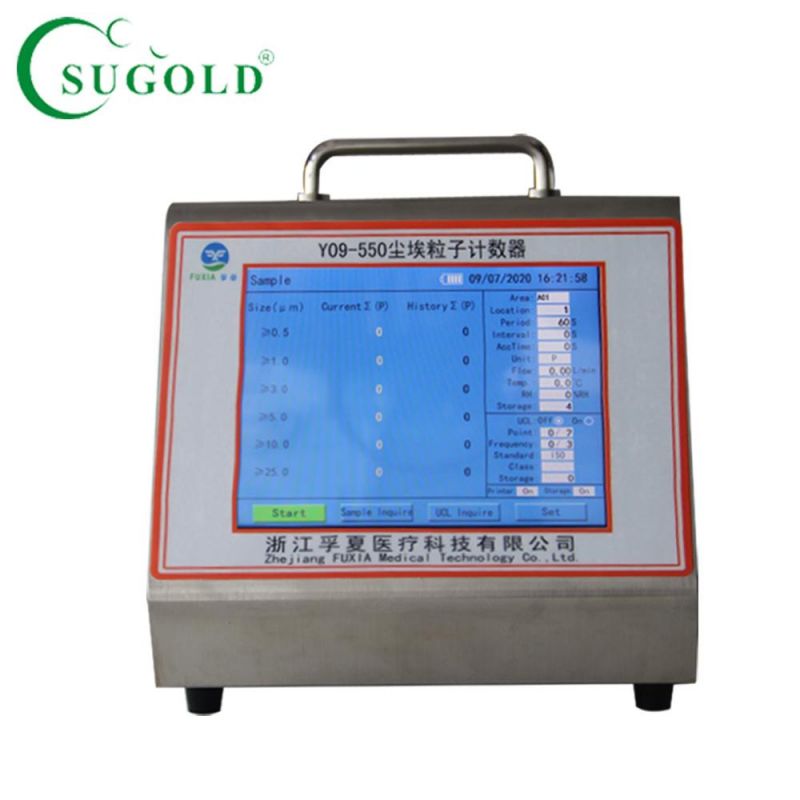

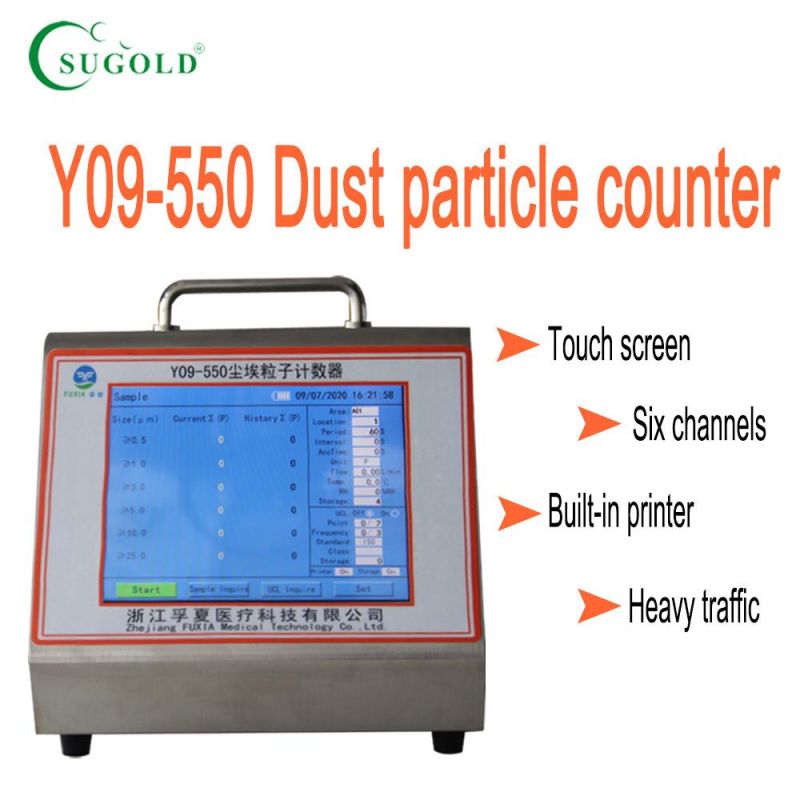

Y09-550 50L/Min Touch Screen Laser Particle Counter

Zhejiang FUXIA Medical Technology Co., Ltd.
  • Warranty：1 Year
  • Brand：Sugold

Base Info

  • Model NO.：Y09-550
  • Customized：Non-Customized
  • Portable：Portable
  • Type：Electrochemical Gas Analyzer
  • Transport Package：Carton
  • Specification：43 *40* 40
  • Trademark：SUGOLD
  • Origin：Zhejiang China
  • Production Capacity：1000PC,Year

Description

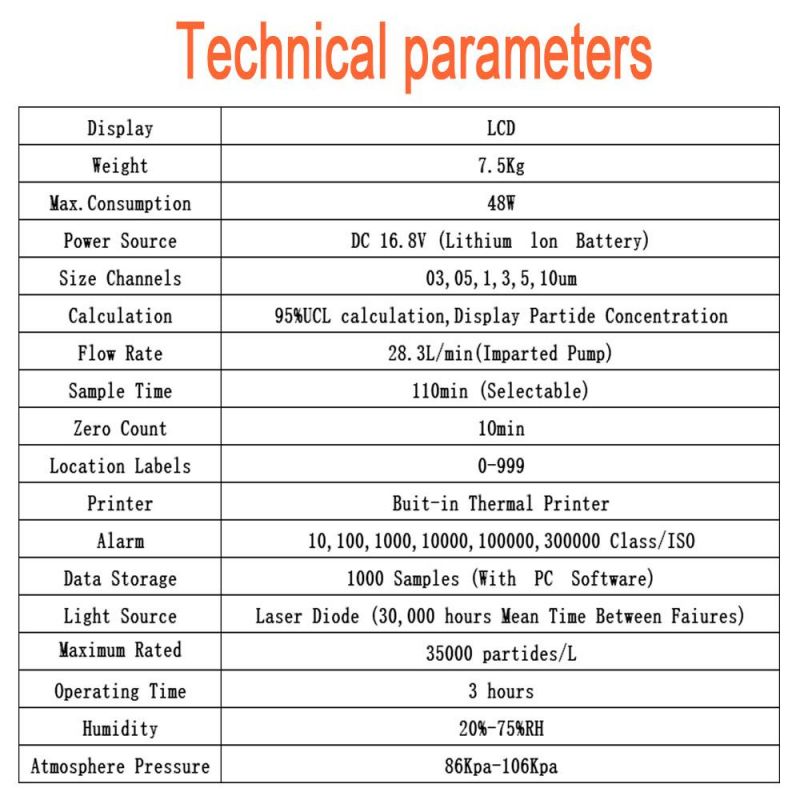

Technical parametersDisplayLCDWeight7.5KgMax.Consumption48WPower SourceDC 16.8V (Lithium lon Battery)Size Channels03,05,1,3,5,10umCalculation95%UCL calculation,Display Partide ConcentrationFlow Rate28.3L/min(Imparted Pump)Sample Time110min (Selectable)Zero Count1OminLocation Labels0-999PrinterBuit-in Thermal PrinterAlarm10,100,1000,10000,100000,300000 Class/ISOData Storage1000 Samples (With PC Software)Light SourceLaser Diode (30,000 hours Mean Time Between Faiures)Maximum Rated Partide
Concentration35000 partides/LOperating Time3 hoursHumidity20%-75%RHAtmosphere Pressure86Kpa-106Kpa
