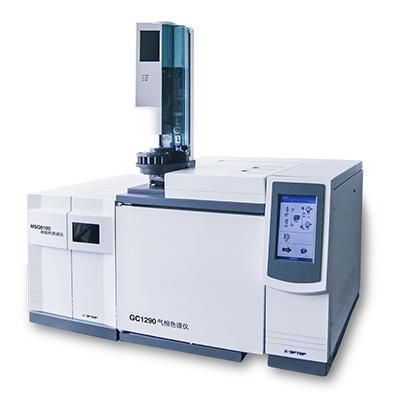

Chromatography Instrument Quadruple Mass Analyzer
Kunshan Agritop Technology Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Flow Repeatability：±0.35%
- Split Ratio：0~5000
- Flow Accuracy：±5%
- Power：Electronic
Base Info
- Model NO.：MSQ8100
- Transport Package：Carton
- Specification：458x230x380mm
- Trademark：OEM
- Origin：Zhejiang
- HS Code：9031809090
- Production Capacity：500PCS ,Month
Description
Name: Chromatography Instrument Quadruple Mass Analyzer
Model: MSQ8100
Characteristics
★Quadrupole mass analyzer
★Ion Source: EI (electron ionization) standard
★High performance GC1290 gas chromatography, with EPC (electronic pneumatic control) system and 7-inch touch screen display
★Clarity software, comply with GLP/FDA-21 CFR Part11
Technical parameter
★Maximum flow: 200ml/min (N2) 1000ml/min(He)
★Flow accuracy: ±5%
★Flow repeatability: ±0.35%
★Split ratio: 0~5000
★Injection temperature: 0ºC ~ 420ºC
★Column oven temperature: 5ºC ~ 420ºC
★Temperature setting precision: 0.1ºC
★Teperature control precision: 0.02ºC
★Program temperature rise: 20 orders
★Maximum temperature rise rate: 80ºC/min
★Filament current: 5uA ~ 300uA
★Electron energy: 10eV ~ 250eV
★Mass range: 1.5u ~ 1000u
★Scanning speed: 30000u/second
★Mass accuracy: ±0.1u
★Sensitivity: 1pg OFN
★Resolution: FWHM>1200
Model: MSQ8100
Characteristics
★Quadrupole mass analyzer
★Ion Source: EI (electron ionization) standard
★High performance GC1290 gas chromatography, with EPC (electronic pneumatic control) system and 7-inch touch screen display
★Clarity software, comply with GLP/FDA-21 CFR Part11
Technical parameter
★Maximum flow: 200ml/min (N2) 1000ml/min(He)
★Flow accuracy: ±5%
★Flow repeatability: ±0.35%
★Split ratio: 0~5000
★Injection temperature: 0ºC ~ 420ºC
★Column oven temperature: 5ºC ~ 420ºC
★Temperature setting precision: 0.1ºC
★Teperature control precision: 0.02ºC
★Program temperature rise: 20 orders
★Maximum temperature rise rate: 80ºC/min
★Filament current: 5uA ~ 300uA
★Electron energy: 10eV ~ 250eV
★Mass range: 1.5u ~ 1000u
★Scanning speed: 30000u/second
★Mass accuracy: ±0.1u
★Sensitivity: 1pg OFN
★Resolution: FWHM>1200
