Touch Screen Control Type Steam Sterilizer
Kunshan Agritop Technology Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Electric Supply：AC220V,50Hz
- Operating Pressure：≥0.2MPa
- Operating Temperature：≤135ºC
- Soaking Time：≤999min
Base Info
- Model NO.：YM series
- Temperature Control Accuracy：±0.5ºC
- Transport Package：Carton
- Trademark：OEM
- Origin：Zhejiang
- HS Code：9031809090
- Production Capacity：500PCS ,Month
Description
Performance characteristics
•Stainless steel material, radial self-expanding sealing ring;
• The lever spring cover structure, which automatically pops up when the cover is opened, and the upper cover has a high temperature and anti-scald protection structure;
• The upper touch LCD screen is convenient for operation and observation;
• Microcomputer custom program settings to meet different sterilization needs;
•The large screen visually displays the sterilization process and displays the operating status of the equipment;
•Pressure safety interlock device, the upper cover cannot be opened under pressure;
•Automatic water replenishment function when water is lacking, and heating is automatically restored after water replenishment is completed;
•With a sound and light alarm system, buzzer prompts for water shortage and end of sterilization;
•Double protection of over-temperature automatic control and safety valve over-pressure self-draining;
• Ultra-quiet design, with exhaust gas treatment system, steam internal circulation;
• Automatic discharge of cold air during the sterilization process;
•Automatic exhaust steam or manual exhaust steam is available for selection at the end of sterilization;
•Real-time printing function to record the sterilization process data, and there is a USB port, you can copy the sterilization record and save it in a U disk;
• With the function of viewing the number of times the machine has been used
• Built-in TT/PT temperature and pressure test verification interface;
•The design pressure of the sterilizer pressure vessel is 0.25Mpa, and the design temperature is 138ºC; •The temperature can be set arbitrarily in the range of 105-135ºC;
•Universal casters with brakes, easy to shift and easy to orient;

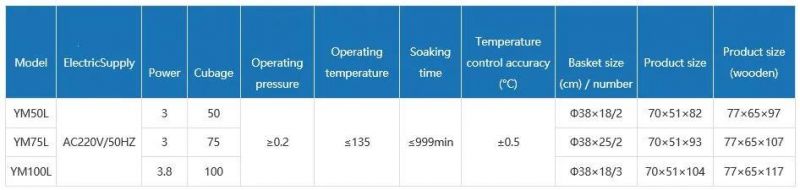

•Immersed electric heating tube with high thermal efficiency. Main Technical Data
•Stainless steel material, radial self-expanding sealing ring;
• The lever spring cover structure, which automatically pops up when the cover is opened, and the upper cover has a high temperature and anti-scald protection structure;
• The upper touch LCD screen is convenient for operation and observation;
• Microcomputer custom program settings to meet different sterilization needs;
•The large screen visually displays the sterilization process and displays the operating status of the equipment;
•Pressure safety interlock device, the upper cover cannot be opened under pressure;
•Automatic water replenishment function when water is lacking, and heating is automatically restored after water replenishment is completed;
•With a sound and light alarm system, buzzer prompts for water shortage and end of sterilization;
•Double protection of over-temperature automatic control and safety valve over-pressure self-draining;
• Ultra-quiet design, with exhaust gas treatment system, steam internal circulation;
• Automatic discharge of cold air during the sterilization process;
•Automatic exhaust steam or manual exhaust steam is available for selection at the end of sterilization;
•Real-time printing function to record the sterilization process data, and there is a USB port, you can copy the sterilization record and save it in a U disk;
• With the function of viewing the number of times the machine has been used
• Built-in TT/PT temperature and pressure test verification interface;
•The design pressure of the sterilizer pressure vessel is 0.25Mpa, and the design temperature is 138ºC; •The temperature can be set arbitrarily in the range of 105-135ºC;
•Universal casters with brakes, easy to shift and easy to orient;
•Immersed electric heating tube with high thermal efficiency. Main Technical Data
