Biometer High Quality Hot Sales Pills Pharmacy Tablet Disintegration Tester
Qingdao Jiading Analytical Instruments Co., Ltd.- After-sales Service：Online Technical Support
- Warranty：3 Years
- Time Range：Adjustable Within 10 Hours
- Default Temperature Control：37 ± 0.3 ºC
- Control Range：30 ~ 39.9 ºC
- Hanging Basket Roundtrip Frequency：30 to 32 Times
Base Info
- Model NO.：BJY-JT-BJ-1D
- Hanging Basket up-Down Distance：55 ± 0.5mm
- Power Supply：220V ± 10% 50Hz
- Ambient Temperature：5 ~ 35 ºC
- Relative Humidity：80%
- Total Power Consumption：550W
- Dimensions：430*260*480mm
- Weight：12.5kg
- Product Name：Disintegration Tester
- Key Word：Disintegration Tester
- Video Outgoing-Inspection：Provided
- MOQ：1 Piece
- Transport Package：Wooden
- Specification：430*260*480mm
- Trademark：BIOMETER
- Origin：China
- HS Code：9031809090
- Production Capacity：1000 Units,Month
Description
Basic Info.
Model NO. BJY-JT-BJ-1D Hanging Basket up-Down Distance 55 ± 0.5mm Power Supply 220V ± 10% 50Hz Ambient Temperature 5 ~ 35 ºC Relative Humidity 80% Total Power Consumption 550W Dimensions 430*260*480mm Weight 12.5kg Product Name Disintegration Tester Key Word Disintegration Tester Video Outgoing-Inspection Provided MOQ 1 Piece Transport Package Wooden Specification 430*260*480mm Trademark BIOMETER Origin China HS Code 9031809090 Production Capacity 1000 Units/MonthProduct Description
summary

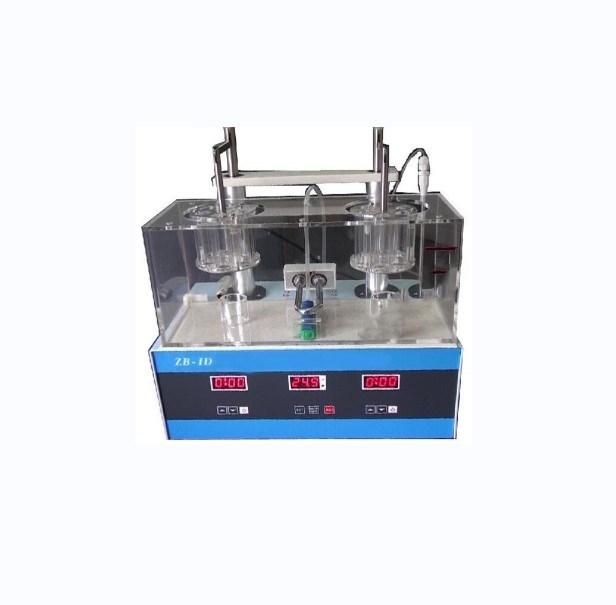

ZB-ID smart disintegration tester use a new microchip system, the operation is more convenient, more accurate precision. The instrument is developped according to the provisions of "People's Republic of China Pharmacopoeia" on tablets, pellets, etc. And its main technical parameters in line with U.S. U.SP XXII edition, British BP-1988 version of disintegration testing.
Parameters
1. time range: adjustable within 10 hours
2. default temperature control : 37 ± 0.3 ºC, control range: 30 ~ 39.9 ºC
3.hanging basket roundtrip frequency: 30 to 32 times / min
4. hanging basket up-down distance: 55 ± 0.5mm
5. the minimum distance between the net and the bottom of the cup: 25mm
6. mesh aperture: 2mm (if need 1mm or 0.425mm sieve pore please separately order) , the rests of annex are in line with the version 2000, 2010 of "People's Republic of China Pharmacopoeia" requirement.
Work condition
Power supply: 220V ± 10% 50HZ
Ambient temperature: 5 ~ 35 ºC
Relative humidity: 80%
Total power consumption: 550W (Heater power 500W)
Dimensions: 430 × 260 × 480mm Weight: 12.5Kg
