• Model NO.：AIC-1955
• Timing Accuracy：0.1s
• Flame Height：Accurate Control of Rotameter
• Sample Rack：U Type
• Burner：Imported UL Burner, Tyrrell Blowtorch
• Torch Tube Diameter：<0.1MPa
• Torch：10mm in Diameter, 38mm in Length
• Test Box：Stainless Steel
• Color：White
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. AIC-1955 Timing Accuracy 0.1s Flame Height Accurate Control of Rotameter Sample Rack U Type Burner Imported UL Burner, Tyrrell Blowtorch Torch Tube Diameter <0.1MPa Torch 10mm in Diameter, 38mm in Length Test Box Stainless Steel Color White Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 5 Sets/Month

Product Description

Main Features:
1, Stainless steel test cabinet with glass observation window;
2, Stainless steel support frame;
3, U-type sample frame;
4,1 volume of # 50 white mercerized cotton thread,
5, Import UL burner, Tirrill blowtorch,
6, Crater diameter: 0.90 ± 0.03mm,
7, Crater length: 1.60 ± 0.05mm,
8, Torch tube diameter 10mm, length 38mm,
9, Two hammer.
10, The flame height can be adjusted (rotameter adjustment)
11, A large observation window, for easy observation sample combustion state;
12, Advanced industrial appearance and control design, easy to touch the specimen and burner;
13, The imported Bunsen burner meets the criterion of ASTM D5025 standards;
14, Rotameter precise control the flame height;
15 Imported brands regulator and pressure gauge;
16, Timing accuracy 0.1s;



Test Results:
Time:Time should be started when burning off the first line, and end when burning to the second line; if It doesn't burn to second lines, turns off the time.
Test parameters (D damaged distance): Damage length calculated from burning off the first line and finish at the second line.



Design principle of Sleeping Bags Flammability Test Equipment is the flame height can be adjusted through the rotor flowmeter, during the test, started the clock when the first line begins to burn, and timing off when burning to the second line or flame is go out before burn to the second line.

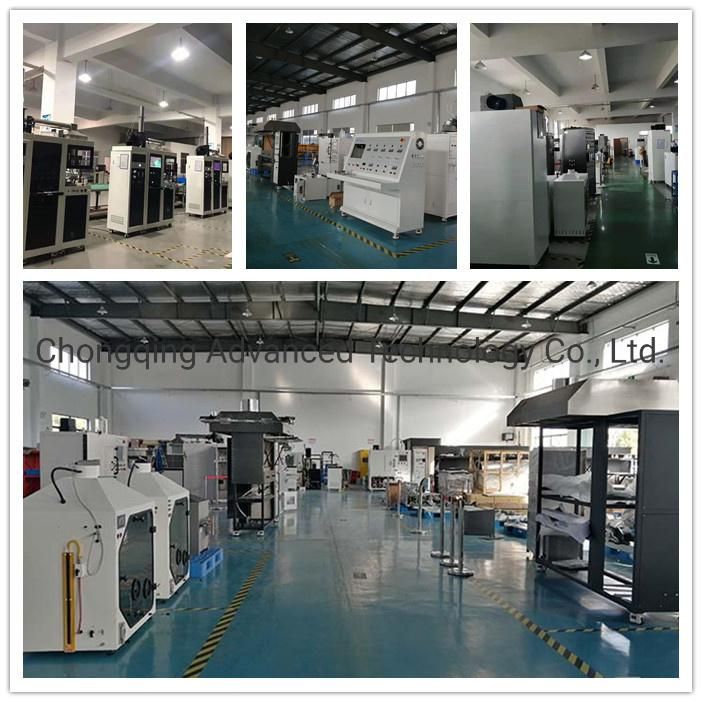

Factory overview

Customer Feedback

Germany

USA

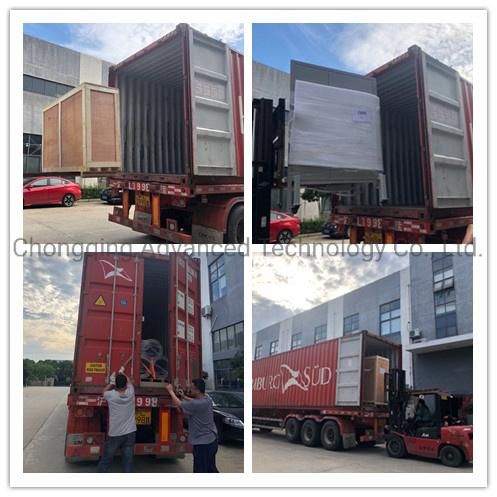

Transporation

FAQ

1.What's the delivery time?
About 6 months.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
