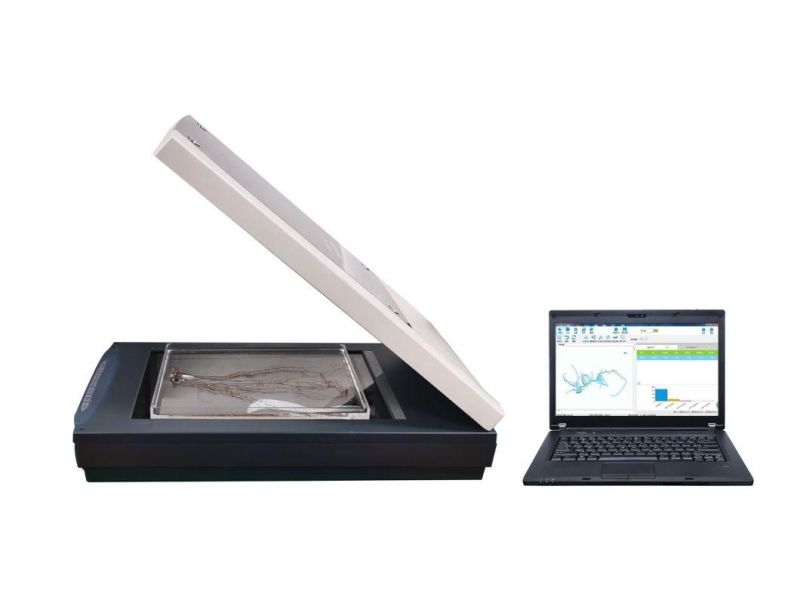

Name:  Plant Roots Morphology Phenotype Analysis System

Model :  GXY-A




Introduction

Plant Roots Phenotype Analysis System is based on image recognition technology. It is professionally used for roots analysis of plants after washing the roots in vitro. It can analyze roots length, diameter, surface area, volume, roots tip number, branch number, etc., and widely applicable to roots morphology and structure research, using non-statistical methods to measure and calculate parameters such as the length of the roots system in the overlapping part, and the analysis results are highly accurate.

It can be used to solve the problem that roots structure and geometric parameters are difficult to obtain. It has the characteristics of convenience, efficiency and high accuracy, which can improve the work efficiency of practitioners, reduce labor costs, provide rapid multi-parameter roots phenotype analysis methods, and serve plants scientific research .

Parameter

1. Clear interface design, modular function design.

2. User learning cost is lower, operation is more convenient and smoother.

3.The analysis results are more accurate


Technical parameters

1. Overall parameters:

Number of root tips: the total number of root tips, equal to the number of termination points
Range: 0-1,000
Accuracy: error <5%

Root system length: total root system length, including main root and secondary roots
Range: 0-10,000 mm
Accuracy: error <3.65%

Average diameter: the average diameter of the root system
Range: 0-20 mm
Accuracy: error <0.04%

Projected area: the projected area of the root system as a whole
Range: 0-200,000 mm²
Accuracy: error <4.02%

Surface area: the overall surface area
Range: 0-1,000,000 mm2
Accuracy: error <3.75%

Volume: overall volume
Range: 0-2,000,000,000 mm3
Accuracy: error <3.82%

2.Topological analysis parameters (requires relatively complete root system):

Quantity: the sum of the number of roots at all levels

Range: 0-1,00

Number of connections: the sum of the number of connections on the side roots at all levels

Range: 0-100

Length: the sum of the lengths of the lateral roots at all levels

Range: 0-10,000 mm

Diameter: the average diameter of each side root

Range: 0-20 mm

Surface area: the sum of the surface area of each side root

Range: 0-1,000,000 mm2

Volume: the sum of the volume of each side root

Range: 0-2,000,000,000 mm3

Projected area: the sum of the projected area of each side root

Range: 0-200,000 mm²
