• Model NO.：WDXRF1630
• Function：Storage
• Weight：0-100Kg
• Power Source：AC200V
• Customized：Non-Customized
• Working Temperature：15-30ºC
• Relative Humidity：≤90%
• Sample Type：Liquid Oil Sample
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. WDXRF1630 Function Storage Weight 0-100Kg Power Source AC200V Customized Non-Customized Working Temperature 15-30ºC Relative Humidity ≤90% Sample Type Liquid Oil Sample Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

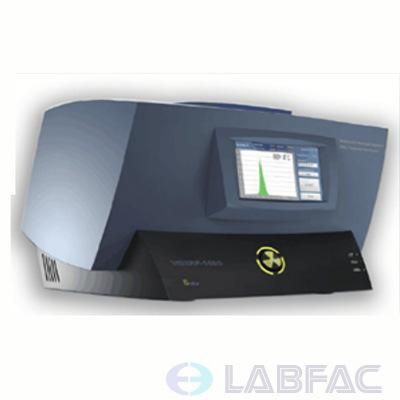

Item:  Wavelength Dispersive X-ray Fluorescence Spectrometer
Model: WDXRF1630

Working Condition
>Working temperature: 15-30ºC
>Relative humidity: ≤90%
>Power supply: AC 220±5V (Remarks: the power supply also can be 110±5V)

Technical specifications
Hardware configuration
1. X-ray Source
Micro focus spot X-ray tube
Focus spot: 175um
Target: Cr
Be Window: 100um
2. Optics: DCC Monochromatic Excitation
3. Detector: Sealed Proportional Counter
4. DMCA
Digital Multi-Channel Analyzer
5. High resolution sample camera
6. Three dimensions X-ray protection system

Software package
1. FP+EC program with Fundamental Parameter and Empirical Coefficient algorithms
calibration modes
2. Automatic qualitative analysis, spectrum process and compare, intensity correction function,
standard and standard-less calibration modes
3. Customized test report generation. Two standard report formats.
4. Self-diagnose function.

Application parameters
1. Element: Sulfur
2. Sample type: Liquid Oil Sample
3. Content Range
Sulfur: 0.2ppm-10%
4. Test time: 120-300 seconds
5. Typical Application: Sulfur in Oil complying with standards ASTM D7039, D2622 and etc.
