• Model NO.：CS4760
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Non Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Materials：Plastic
• Function：Water quality testing and analysis
• Power：12VDC
• Output：RS485 MODBUS RTU
• Measure methods：fluorescence method
• Housing material：POM+ Stainless steel
• Waterproof grade：IP68
• Measurement range：0-20mg,L
• Accuracy：+,-1%F.S
• Temperature compensation：NTC10K
• Installation thread：NPT3,4 inch
• Pressure range：0.3MPa
• Transport Package：1 PCS,Carton
• Specification：POM+ Stainless steel
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：3000PCS,Month
• Package size per unit product：25.00cm * 26.00cm * 30.00cm
• Gross weight per unit product：2.500kg
• Lead Time：15 days (1 - 50 Pieces) 30 days (51 - 200 Pieces) 60 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. CS4760 Appliance Food Analysis, Medical Research, Biochemistry Portable Non Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Materials Plastic Function Water quality testing and analysis Power 12VDC Output RS485 MODBUS RTU Measure methods fluorescence method Housing material POM+ Stainless steel Waterproof grade IP68 Measurement range 0-20mg/L Accuracy +/-1%F.S Temperature compensation NTC10K Installation thread NPT3/4 inch Pressure range 0.3MPa Transport Package 1 PCS/Carton Specification POM+ Stainless steel Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 25.00cm * 26.00cm * 30.00cm Gross weight per unit product 2.500kg Lead Time 15 days (1 - 50 Pieces)
30 days (51 - 200 Pieces)
60 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

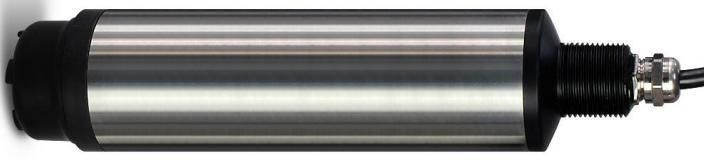

CS4760 Digital Dissolved Oxygen Sensor








Fluorescence dissolved oxygen electrode adopts optical physics principle, no chemical reaction in the measurement, no influence of bubbles, aeration/anaerobic tank installation and measurement are more stable, maintenance-free in the later period, and more convenient to use. Fluorescent oxygen electrode.

Fluorescence method dissolved oxygen sensor is based on the principle of fluorescence quenching. When the green light irradiates the fluorescent substance, the fluorescent substance will be excited and emit red light. Since oxygen molecules can take energy away, the time of the exciting red light is inversely proportional to the concentration of oxygen molecules. Without calibration and design with ultra-low energy consumption in mind, the sensor can meet all the requirements of field operations as well as long and short-term tests. Fluorescence technology can provide accurate measurement data for all measurement environments, especially those with low oxygen concentration, without consuming oxygen.

The electrode lead is made of PVC material, which is waterproof and anti-corrosion, which can cope with more complicated working conditions.
The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be plated with titanium, which also performs well under strong corrosion.

The fluorescent cap is anti-corrosion, the measurement accuracy is better, and the service life is longer. No oxygen consumption, low maintenance, and long life.




Model No.	CS4760D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measure methods	Fluorescent method
Housing material	POM+ 316 Stainless steel
Waterproof grade	IP68
Measurement range	0-20mg/L
Accuracy	±1%F.S
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Measuring/Storage Temperature	0-45ºC
Calibration	Anaerobic water calibration and air calibration
Connection methods	4 core cable
Cable length	Standard 10m cable, can be extended to 100m
Installation thread	G3/4 End thread
Application	General application, river, lake, drink water, environmental protection, etc.

After Sales Service

* The warranty period is 12 months from the commissioning acceptance date. In addition, we supply a 1-year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hours.
* We build instrument service profiles for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
The delivery date differs with product type, order quantity, special requirement, etc. Usually, our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrant the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 year after start-up of the system.

How are the technical services on the product?
You are welcome to contact us any time if you have any technical questions. We will respond promptly and answer to your satisfaction. If required and necessary, an Engineer is available to service and provide technical support for machinery overseas.



Delivery and Packing:

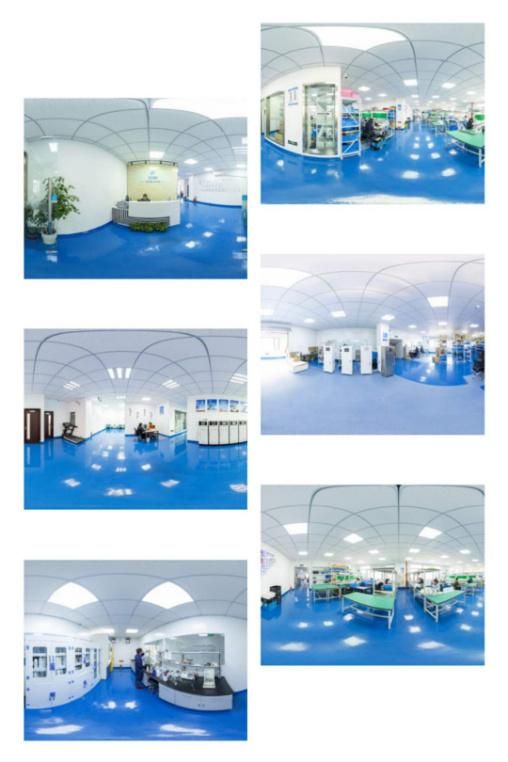

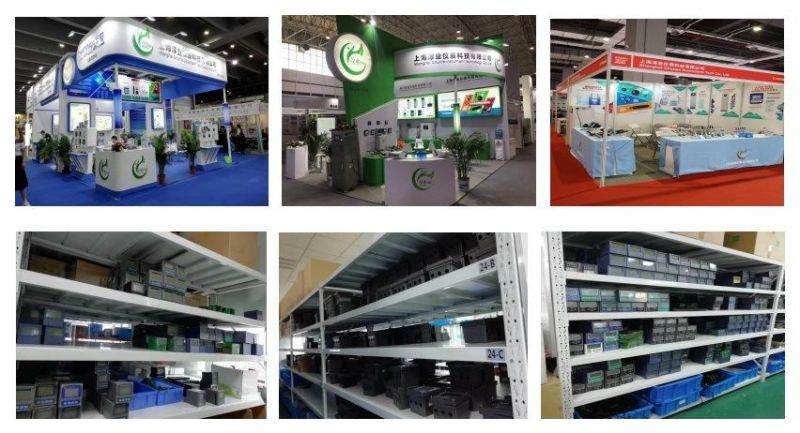

Our company:
