• Model NO.：T9040
• Type：pH,ORP,TDS,EC,Salinity,DO,FCL
• Model No.：T9050
• pH：0.01~14.00pH;+,- 0.05pH;
• Conductivity：0.01~30000 us,cm; +,-1%F.S;
• Dissolved Oxygen：0.01~20.00mg,L; +,-1%F.S;
• NH4+：0.01~1000mg,L; +,-2.5%F.S;
• Application：Aquaculture
• NO3-：0.01~1000mg,L; +,-2.5%F.S;
• Transport Package：Standard Packing
• Specification：600*450*190mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. T9040 Type pH/ORP/TDS/EC/Salinity/DO/FCL Model No. T9050 pH 0.01~14.00pH;+/- 0.05pH; Conductivity 0.01~30000 us/cm; +/-1%F.S; Dissolved Oxygen 0.01~20.00mg/L; +/-1%F.S; NH4+ 0.01~1000mg/L; +/-2.5%F.S; Application Aquaculture NO3- 0.01~1000mg/L; +/-2.5%F.S; Transport Package Standard Packing Specification 600*450*190mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 1000PCS/Month

Product Description

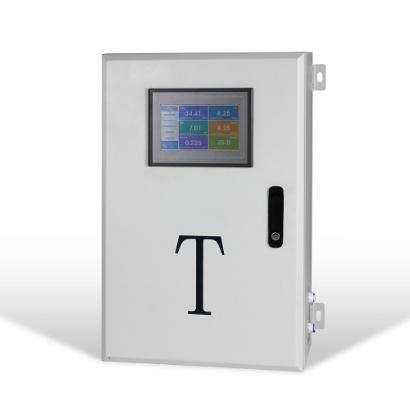

T9040 Water Quality Multi-parameter online monitoring system



Typical applications: Aquaculture.


No	Parameter	Configuration
1	pH	0.01~14.00pH;±0.05pH
2	COND	0.01~30000us/cm;±1%F.S
3	DO	0.01~20.00mg/L;±1%F.S
4	NH4+	0.01~1000mg/L;±2.5%F.S
5	NO3-	0.01~1000mg/L;±2.5%F.S
6	Temp	0.1~100.0ºC;±0.3ºC
7	Signal Output	RS485 MODBUS RTU
8	Historical Notes	Yes
9	historical curve	Yes
10	Installation	Wall Mounting
11	Water Sample Connection	3/8'' NPTF
12	Water Sample Temperature	5~40ºC
13	Water Sample  speed	200~400mL/min
14	IP Grade	IP54
15	Power Supply	100~240VAC or 9~36VDC
16	Power Rate	3W
17	Weight	30KG
18	Dimension	600*450*190mm

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
