IEC60335-1 Clause 25.14 Power Cord Flexibility Tester
Shenzhen Bonad Instrument Co., Ltd.- Warranty:1year
- Flexing Angle:0-360c;. Can Be Preset
- Flexing Speed:0~60 Rpm, Can Be Preset
- Test Times:0~999999 Times, Can Be Preset and Displayed
- Power:230V 50Hz
- Bearing:Max. 30kg
Base Info
- Model NO.:iec60335-1
- Operation:Touch Screen Intelligent Operation
- Configuration:0~4kw Transformer, Test Current Can Be Displayed
- Test Station:1 Station
- Standards:IEC 60335-1, IEC 60335-2-14, GB4706.1, GB2099
- Transport Package:Safety Wooden Box
- Specification:iec60335-1
- Trademark:bnd
- Origin:China
- Production Capacity:100PCS Per Month
Description
Basic Info.
Model NO. iec60335-1 Operation Touch Screen Intelligent Operation Configuration 0~4kw Transformer, Test Current Can Be Displayed Test Station 1 Station Standards IEC 60335-1, IEC 60335-2-14, GB4706.1, GB2099 Transport Package Safety Wooden Box Specification iec60335-1 Trademark bnd Origin China Production Capacity 100PCS Per MonthProduct Description
IEC60335-1 Clause 25.14 Power Cord Flexibility TesterProduct Introduction:

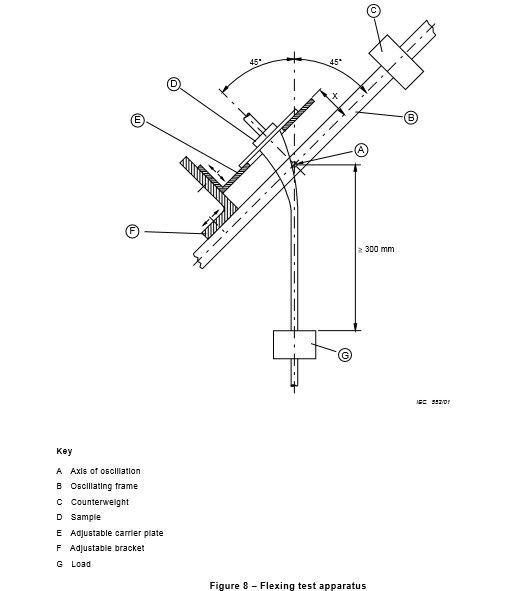

The supply cord flexibility performance tester is special designed and manufactured according to clause 23.3 and 25.14 of IEC60335-1, GB4706-1, IEC60335-2-14, GB4706-30 and etc., it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron), also applicable for power cord flexing endurance tester of plugs and sockets.
The test device adopts to PLC electrical control, 7-inch color touch screen intelligent operation system; servo motor controlling the test angle, high precision digital instrument, high performance digital frequency conversion, precise speed regulation, six number memory timer, multifunctional combined clamps, center gauge of rotation, bending angle adjustable, 4kw output power. Test times (maximum of 999999 times), test speed, and test angles can be preset; it has electric current detection function. This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.
Technical Parameters:
Power Supply | AC240V 50HZ |
Angle of bending | 45°,60°,90° adjustable |
Bending rate | 8~60rpm (frequency control) |
Test Station | 1 working station (it is customizable) |
Maximum output voltage | 240V |
Maximum output power | 3KW |
Maximum current output | 12A |
Maximum load bearing of samples | 15kg |
The load weight | 5N,10N*1 |
Counter | 0~999999 digit display,preset |
FAQ :
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
Most instruments support MOQ one set.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package?
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
Company Profile :Our Advantages :

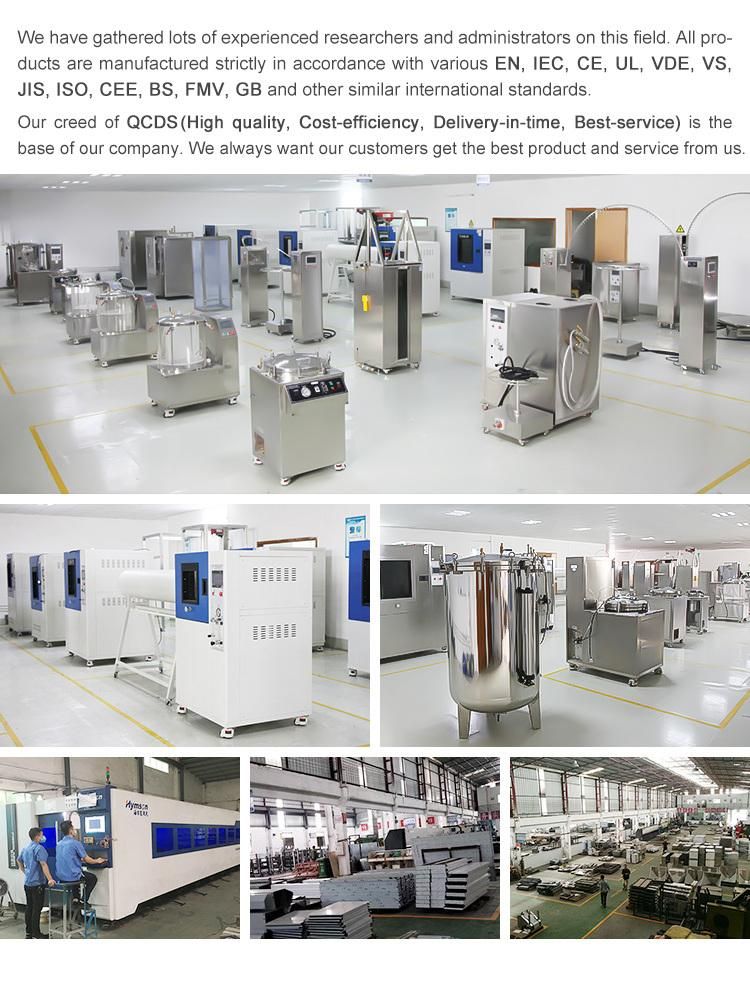

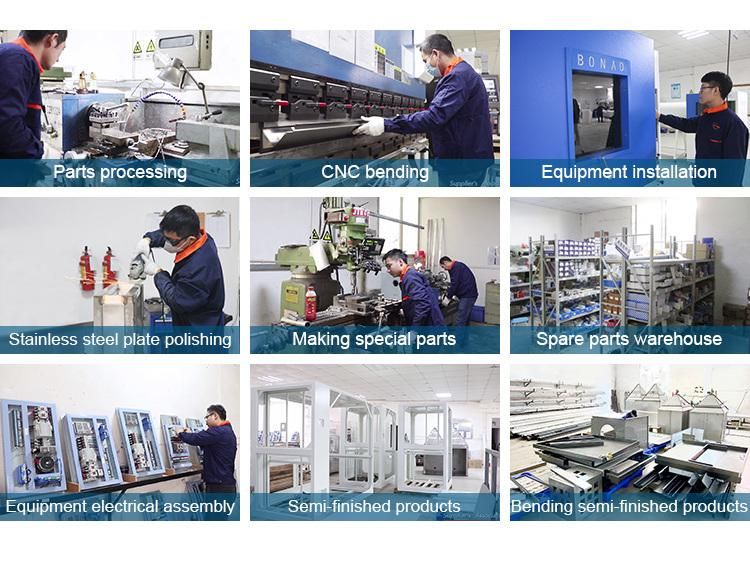

Certifications :Factory Introduction :Plant Warehouse :Cooperative Customers & Brands:

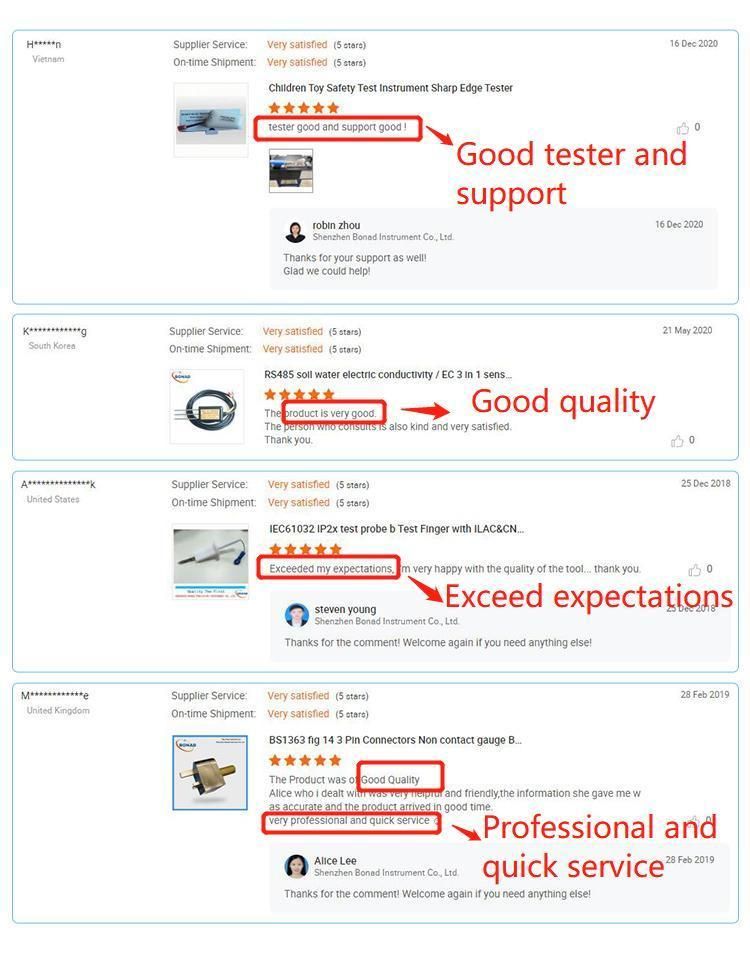

Customer Reviews :Product Packaging :
