Raw Fiber Analzyer or Coarse Fiber Analyzer
Zhejiang Top Cloud-Agri Technology Co., Ltd.- Element:Organic Elemental Analyzer
- Display:Digital
- Application:Agriculture
- Frequency:50±1HZ
- Performance:Automation
- Function:Analyzer
Base Info
- Model NO.:CXC-06
- Weight:0-100Kg
- Power Source:AC220V±22V
- Customized:Customized
- Power:AC220V,50Hz, 2800W
- Water Supply:Water Pressure>1.5MPa Water Temperature<20
- Delivery Time:in 5 Days After Payment
- Size:670*450*670mm
- Payment:Tt
- Transport Package:Wooden Box, Meet Export Standard Requirements
- Specification:ISO9001
- Trademark:TOP
- Origin:China (Mainland)
- HS Code:9031809090
- Production Capacity:20 Unit,Units Per Week
Description
Product description

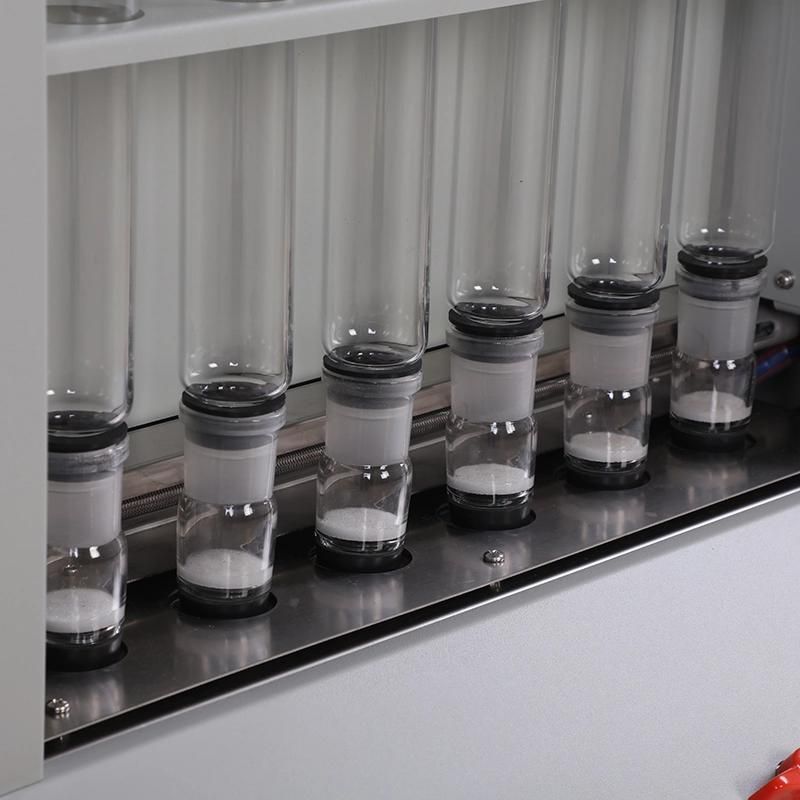

Raw /Coarse Fiber Analyzer tests raw fiber content according to acid and alkali boiling method.
It adopts accurate concentration acid and alkali to boil samples in a particular condition, then remove soluble substances by ether, deducts the number of minerals by high-temperature burning.
Technical parameter
Measuring object: raw /Coarse fiber content in various kinds of grain, feed, food, and other agriculture and sideline products
Measuring sample quantity: 6/times
Reproducibility error:
Raw fiber level < 10% absolute value erroe≤0.4%
Raw fiber level >10% absolute value error≤4%
Measuring time: about 100min (including acid 40min, alkali 40min, filter and wash 20 min)
Power: AC220V/50HZ, 2800W

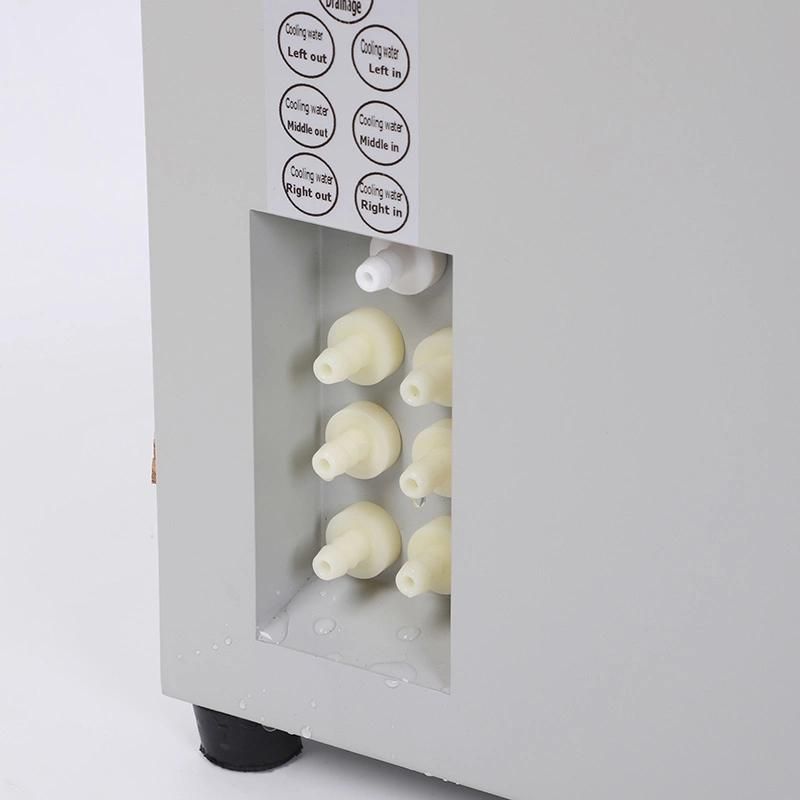

Water supply: water pressure >1.5MPa
Water temperature <20°C
Size: 670×450×670mm
Weight: 30kg
