Ny-16da Portable Pesticide Residue Analyzer
Zhejiang Top Cloud-Agri Technology Co., Ltd.- Element：Analytic Instrument for Trace Element
- Display：Digital
- Frequency：50±0.5Hz
- Performance：Automation
- Function：Analyze
- Weight：0-100Kg
Base Info
- Model NO.：NY-16DA
- Power Source：AC220V±22V
- Customized：Non-Customized
- Transmittance Accuracy：±1.5%
- Transmittance Repeatability：±0.5%
- Linear Error：±5%
- Delivery Time：30 Days
- Power Adaptor：220V to 5V,5A
- Transport Package：in Carton
- Specification：ISO9001
- Trademark：TOP
- Origin：Zhejiang, China (Mainland)
- HS Code：9031809090
- Production Capacity：1000 Set,Sets Per Month
Description
Instrument principle

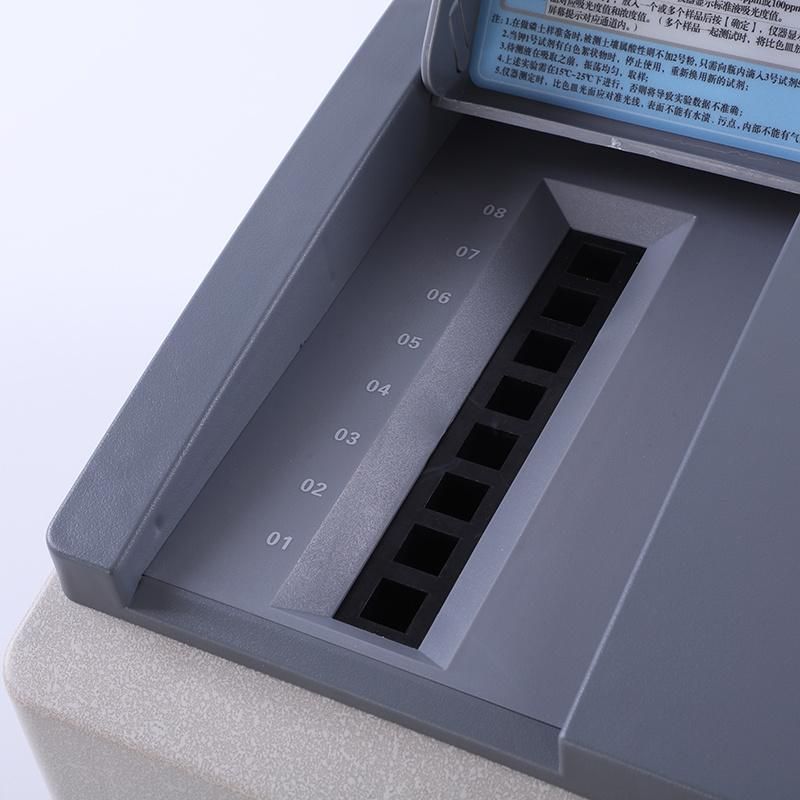

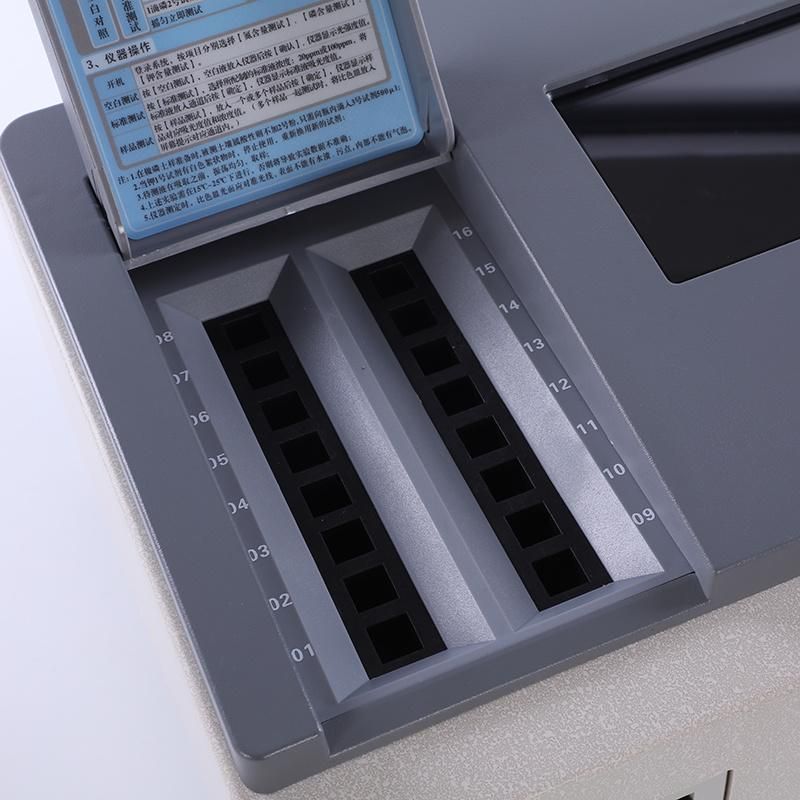

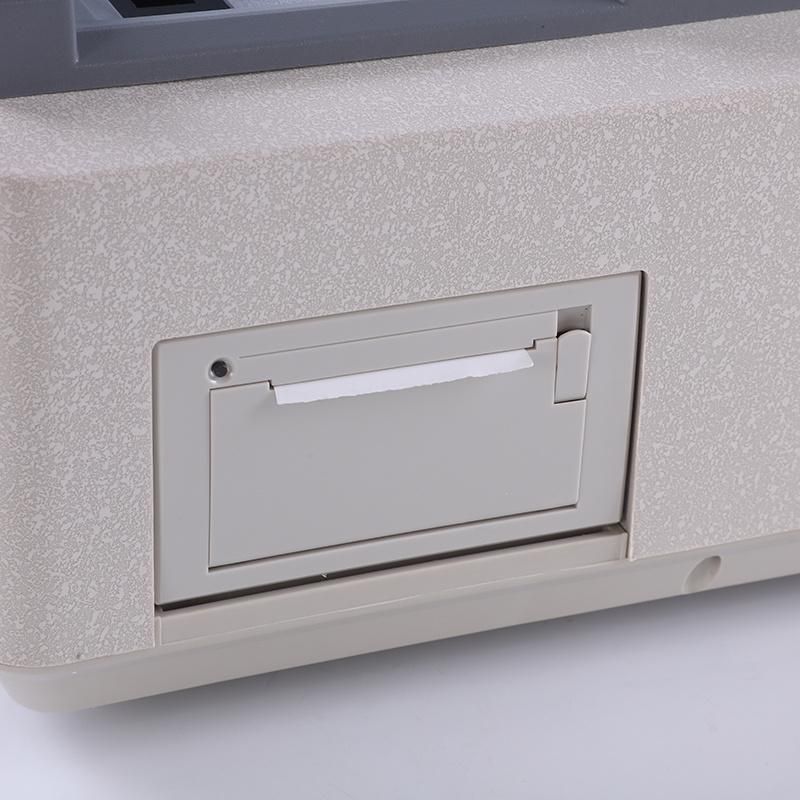

Pesticide Residue Meter is based on cholinesterase catalyzing acetylcholine, its hydrolysate impacts DTNB to form yellow AZO. Organophosphate pesticides have an effect on enzymes. Through changes of absorption, the value shows the degree of inhibition and further reflects the pesticide residue in samples. The instrument consists of LED, thermostatic color pool, integrated photoelectric sensors, ARM9 microprocessor, and miniature printer and can print directly and transit result of testing.
Characteristics
Testing pesticide residue in onion, garlic, ginger, fragrant-flowered garlic, carrot tomato, vegetables etc.
Color reaction under room temperature condition, fast testing speed
Plastic shell, streamline appearance, 6-inch color LCD displayer, easy to operate
High sensitivity to methamidophos, dichlorvos, and so on
Adopt ARM9 inserting controlling system, with the function of saving, collecting, processing, analyzing
Technical parameter
The test items, detection limit, detection range:
( inhibition ratio)
Transmittance accuracy: ≤±1.5%;
Transmittance repeatability: ≤ 0.5%
Linear error: ≤5%
Mode of display: LCD
Interface: network
Working environment: temperature: 0~40°C, humidity: 35~85%
Power adaptor: 220V to 5V/5A
Size: 38CM * 30CM* 17CM
