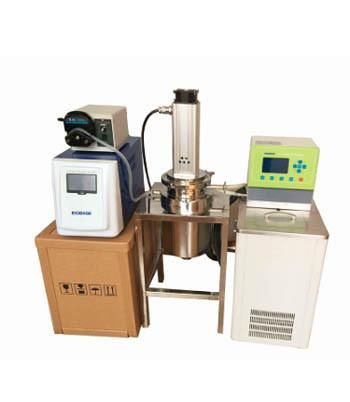

Biobase China High Quality Continuous Cell Flow Ultrasonic Cell Ultrasonic Cell Disrupter
Biobase Meihua Trading Co., Ltd.- Sample Type：Cell
- Processing Method：Disruptor
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Digital Display
- Performance：Automatic
Base Info
- Model NO.：UCD-4000W-II
- Power Supply：220V
- Weight：0-50kg
- Certification：CE, ISO
- Customized：Customized
- Name：Continuous Flow Ultrasonic Cell Disruptor
- Brand：Biobase
- Frequence(kHz)：20
- Size：400*400*560mm
- Max.Working Time：99h59min59s
- Time Set：Optional: Continuous,Pulae
- Color：White
- Gross Weight：80kg
- Packing：Wooden Case
- Transport Package：Carton
- Specification：400*400*560mm
- Trademark：BIOBASE
- Origin：China
- Production Capacity：200,Month
Description
Introduction:
It is suitable for the extraction of Chinese herbal medicine, cells, bacteria and emulsifying chemical nanometer material, suitable for small batch production or to provide accurate technical parameters for the future industrial production.
Features:
1.LCD Display
2.Automatic tracking the frequency.
3.20 groups of program data can be stored.
4.It can test and control temperature of the sample.
5.Function of automatic feeding and computer control can be optional equipped.
Technical Parameters:
Model
UCD-4000W-II
Frequency(KHz)
20
Standard Amplitude-change Pole? (mm)
40
OptionalAmplitude-changePole ? (mm)
20,25,30,38,50,60
Crushing Capacity/Once
500ml-5L
Crushing Capacity/Continuously
100L/Day
Max.Consumption(W)
4000,Adjustable
Time set
Optional:Continuous/Pulse
Max. Working Time
99h59min59sec
Safety System
Automatic diagnosis; Overload,
Over-temperature protection;
Standard Accessories
5L-316 stainless steel reactor,
Low temperature water bath,
Discharge vavle
Power Supply
AC220V/110V±10%,50/60Hz
Package Size(W*D*H)
640*350*460mm
400*400*1000mm
450*450*850mm
400*250*260mm
Gross Weight
80kg
