• Model NO.：900P
• Temperature Range：0 to 105 Degree
• Dimensions(L*W*H)：170X85X30mm
• Weight：300g
• Transport Package：Carton Box
• Specification：300g
• Trademark：HEB
• Origin：Xi′an, China
• Production Capacity：200 Sets ,Month

Basic Info.

Model NO. 900P Temperature Range 0 to 105 Degree Dimensions(L*W*H) 170X85X30mm Weight 300g Transport Package Carton Box Specification 300g Trademark HEB Origin Xi′an, China Production Capacity 200 Sets /Month

Product Description

                        Portable Multiparameter Water Quality Meter

Introduction:

High-performance multiparameter water quality meter contains the 8 measurement modes, the meter is suitable for measuring the pH, ORP, ion concentration, conductivity, TDS, salinity, resistivity and dissolved oxygen.

Features:



pH Mode:
• Portable multiparameter water quality meter is equipped with a backlit LCD display.
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.

ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.


Ion Concentration Mode:
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Selectable concentration units (ppm, mg/L, mol/L, mmol/L) and ionic valency.

Conductivity/TDS/Salinity/Resistivity Modes:
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear
  and pure water compensations, seawater and practical salinity measurement modes.

Dissolved Oxygen Mode:
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate the measurement error.


Other Features:
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the
  meter smoothly.

Technical parameters:

Model	900P
pH
Range	-2.000 to 20.000pH
Resolution	0.001, 0.01, 0.1pH, selectable
Accuracy	±0.002pH
Calibration Points	1 to 5 points
pH Buffer Options	USA, NIST, DIN, 2 custom buffers
ORP
Range	±1999.9mV
Resolution	0.1, 1mV, selectable
Accuracy	±0.2mV
Calibration Points	1 point
Measurement Modes	Relative or absolute mV
Ion Concentration
Range	0.001 to 19999 (deponding on the range of ISE)
Resolution	0.001, 0.01, 0.1, 1
Accuracy	±0.5% F.S. (monovalent), ±1% F.S. (divalent)
Calibration Points	2 to 5 points
Calibration Solutions	0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
Measurement Units	ppm, mg/L, mol/L, mmol/L
Conductivity
Range	0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Resolution	0.001, 0.01, 0.1, 1
Accuracy	±0.5% F.S.
Calibration Points	1 to 5 points
Calibration Solutions	10µS, 84µS, 1413µS, 12.88mS, 111.8mS
Temperature Coefficient	Linear (0.0 to 10.0%/°C), pure water
Reference Temperature	20/25°C
Cell Constant	K=0.1, 1, 10 or custom
TDS
Range	0.00 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt
Resolution	0.01, 0.1, 1
Accuracy	±1% F.S.
TDS Factor	0.1 to 1.0 (default 0.5)
Salinity
Range	0.00 to 80.00ppt, 0.00 to 42.00psu
Resolution	0.01
Accuracy	±1% F.S.
Resistivity
Range	0.00 to 20.00MΩ
Resolution	0.01
Accuracy	±1% F.S.
Dissolved Oxygen
DO Range	0.00 to 20.00mg/L
Resolution	0.01, 0.1mg/L, selectable
Accuracy	±0.2mg/L
% Saturation of Oxygen	0.0 to 200.0%
Resolution	0.1, 1%, selectable
Accuracy	±2.0%
Calibration Points	1 or 2 points
Pressure Correction	60.0 to 112.5kPa/450 to 850mmHg, manual
Salinity Correction	0.0 to 50.0g/L, manual
Temperature
Range	0 to 105°C/32 to 221°F
Resolution	0.1°C/0.1°F
Accuracy	±0.5°C/±0.9°F
Offset Calibration	1 point
Calibration Range	Reading ±10°C
General Specifications
Temperature Compensation	0 to 100°C/32 to 212°F, manual or automatic
Stability Criteria	Low or high
Calibration Due Alarm	1 to 31 days or off
Auto-Power Off	10, 20 or 30 minutes after last key pressed
Memory	Stores up to 500 data sets
Output	USB communication interface
Connector	BNC, 6-pin nimi-DIN, 3.5mm jack socket
Display	Custom LCD (80×60mm)
Power	3×1.5V AA batteries or DC5V power adapter
Battery Life	Approximately 150 hours (turn off the backlight)
Dimensions	170(L)×85(W)×30(H)mm
Weight	300g

Package & Delivery:

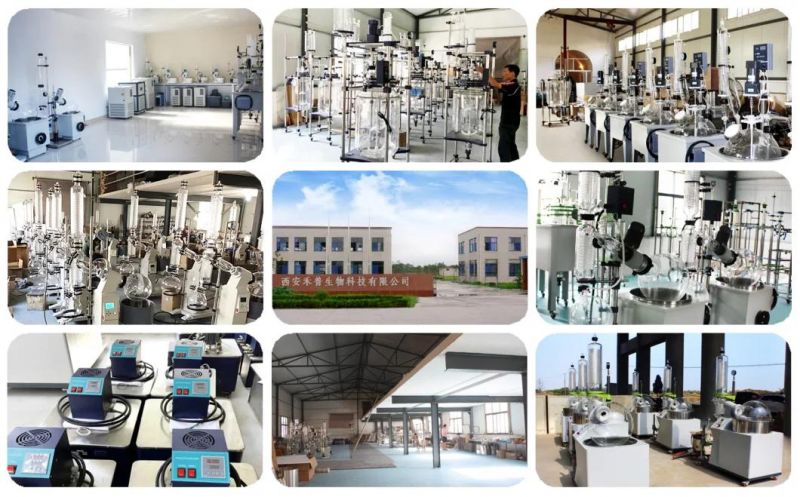

Factory:



Certification:
