• Model NO.：K800-N
• Voltage：DC 24V
• Operating Temperature：-20 Degree ~ +50 Degree
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Exd Iict6
• Certificate：Ce
• Warranty：1 Year
• Detection Range：0-30%Vol
• Low Alarm：18%Vol
• High Alarm：23%Vol
• Transport Package：Carton
• Specification：1.8kg
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：300

Basic Info.

Model NO. K800-N Voltage DC 24V Operating Temperature -20 Degree ~ +50 Degree Signal Output 4 to 20mA Explosion-Proof Grade Exd Iict6 Certificate Ce Warranty 1 Year Detection Range 0-30%Vol Low Alarm 18%Vol High Alarm 23%Vol Transport Package Carton Specification 1.8kg Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 300

Product Description

Industrial safety equipment china hydrogen sulfide detector

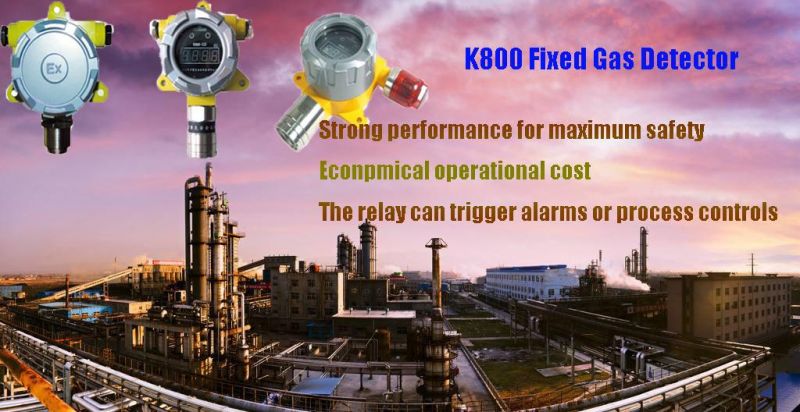

The K800 series fixed gas detector, with 2, 3 or 4 wires connection, 4-20 mA RS485 Modbus output, provides continuous detection and monitoring of gases for a wide range of industrial environments. The fixed detector with in-built alarms and fault relays is suitable for safety protection of personnel and plant from flammable, toxic and oxygen gases.

 >>>Key Features

1. Digital and analog outputs
2. LED status indicator light for alarm conditions
3. The relay can trigger alarms or process control system
4. Three models available for measuring toxic gases, VOCs, or combustible gases
5. Explosion-proof case
6. CERTIFICATIONS: CE, CMC, Ex, MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)

>>>Technical Specification:

Power supply	24VDC
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~+50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Exd IICT6
Warranty	1 year

 Package and Delivery:




                    COMMONLY USED GAS DETECTION LIST

No.	Detection gas	Range	Accuracy	90% response time	Min readout	Low/high alarm
1	PH3	0-5-2000ppm	±5%(F.S)	≤25s	0.01ppm	0.3/5ppm
2	O2	0-30%	±5%(F.S)	≤15s	0.1%vol	18.0%/23.0%
3	LPG(LEL gas)	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
4	CO	0-1000 ppm	±5%(F.S)	≤25s	1 ppm	50ppm/100ppm
5	H2S	0-100 ppm	±5%(F.S)	≤30s	1 ppm	10ppm/20ppm
6	CH4	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
7	NH3	0-100ppm	±5%(F.S)	≤50s	1 ppm	25 ppm /50 ppm
8	O3	0-20ppm	±5%(F.S)	≤60s	0.01ppm	0.2ppm/0.4ppm
9	CI2	0-20 ppm	±5%(F.S)	≤30s	0.1 ppm	1 ppm /10 ppm
10	H2	0-1000 ppm	±5%(F.S)	≤60s	1 ppm	50 ppm /100 ppm
11	SO2	0-100 ppm	±5%(F.S)	≤30s	0.1 ppm	2 ppm /10 ppm
12	NO	0-250 ppm	±5%(F.S)	≤60s	1 ppm	25ppm/50 ppm
13	NO2	0-20 ppm	±5%(F.S)	≤25s	0.1 ppm	3ppm/10ppm
14	Infrared CO2	0-5%vol	±5%(F.S)	≤60s	0.1%vol	1%vol/2%vol
15	Infrared CH4	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
16	Infrared C3H8	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol

Our Service:

1.For all our customers, our products have 1 year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hours.
3.We will provide technical support, our engineers will help to solve the problems you met.
4.We can provide OEM and ODM service.
5.Our factory is locating in Nanjing city, welcome to visit our factory.
6.All products will be well checked and well packed before shipment, and qualification certificatewill be provided.

Calibration:

Do you know how to calibrate your portable gas detectors?
Please contact us to ask for help.

Why choose KELISAIKE?

1. Mutual benefit : We are a factory, our price will be cheaper in the same quality.
2. Professional engineers: We have 3 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS). (b) Design your color box(≥200PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.


>>> FAQ
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before place an qty order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on -line, please have a detailed looking and choose the interested models in our site. Or you can send email to us.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

If you are interested in our product,please feel free to contact me
Contact:Sally
