• Model NO.：RET-C
• HS Code：90185000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. RET-C HS Code 90185000 Production Capacity 1000sets/Year

Product Description

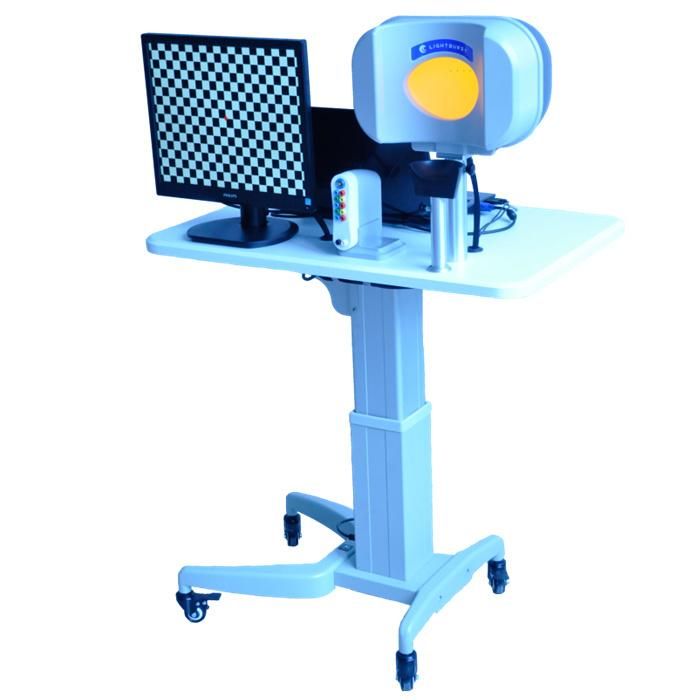

Visual electrophisiology

Model:RET-C

Main functions

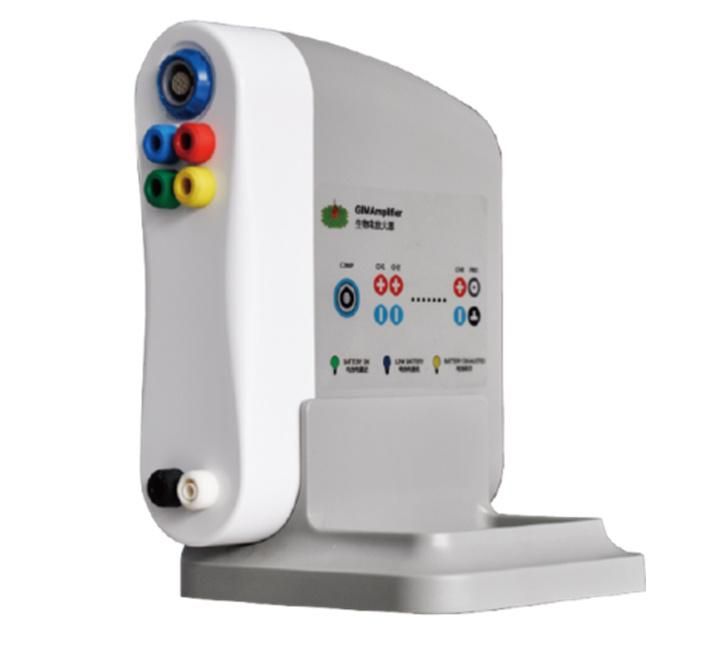

GIMAmp - DC Amplifier for Visual Electrophysiology




24bit high resolution A/D, higher than competitor's 12/14 bit;
Optical isolated USB connection, powered by li-ion battery, totally isolated from AC power system, provide excellent anti-interference performance;
Automatically switched to USB power, when low battery;
Real time full digital filter, cut frequency & order for band bass, low pass, band stop, high pass, and comb filter can be independently set for each channel through software; Provide flexibility for your clinical handing and scientific research than ever;

2 channels by default, optional: 5 / 8 channels.

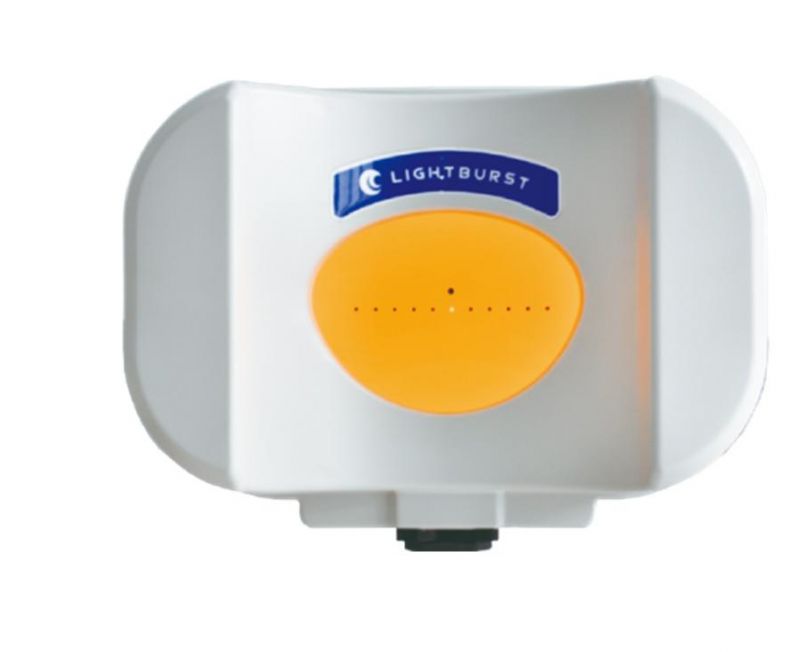

LightBurst^® - Flash Stimulator



Small size, big energy;
Less than 3 Kg, test seated patient by default; Stimulator can also be taken down to test lying patient or infants; Test for dog, monkey, pig, mouse, rat, rabbit is also been supported conveniently;
18 groups of background, stimuli light source: white, red, blue, green and yellow; Optional: infra-red and ultra-violet for research purpose;
Small size leads to more efficient use of light energy, able to provide 100 cd·s/m² white broad band stimuli in < 4ms, 10X ISCEV standard;

LCD Pattern Stimulator

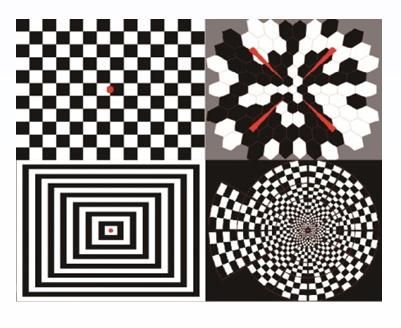

Best configurability: checkerboard, horizontal/vertical stripes, rectangle stimuli; Reversal, on/off stimuli;
Fixation target and stimuli field can be adjusted;
Low-vision fixation target is available;

Hexagon & dartboard not available for RetiMINER-C.

TECHNICAL DATA

Amplifier
Input Impedience	≥ 1000 MΩ
CMRR	≥ 115dB
Input Noise	≤ 4uVpp
Filter	Full real time digital filter, band-pass, band-stop, high-pass, low-pass, comb filter apply to every channel independently
A/D Resolution	24 bit
Port	Optical isolated USB 2.0
Power Supply	Li-ion battery, switch to USB power automatically when low battery
Flash Stimulator
Light Source Color	White, Red, Green, Blue, Yellow and any of their combination
Flash Luminance	Can produce 100cd·s/m2 broad-band white flash in < 4ms
Flash Luminance Range	0-1000 cd·s/m2
Stimuli Mode	Single, Double, String, On/Off, On duration can be adjusted
Background Illumination	0-3000 cd/m2
Stimuli Frequency	0.01-200Hz
Fixation & EOG	11 Fixation/EOG indicator, 64 adjustable intensity; -25 - +25 EOG saccade range
Monitor	Infra-red camera
Pattern Stimulator
Luminance	0-200 cd/m2
Contrast	> 98%
Pattern Shape	Checkerboard, Horizontal/vertical stripes, rectangle, adjustable element angle
Stimuli Mode	Reversal, On/Off, String
Stimuli Field	Full field, left/right/upper/lower half, up-down/left-right margin; ¼ left-top/right-top/left-bottom/right-bottom; horizontal/vertical center, 1/8 center; Center circle with any angle; Field outside center circle with any angle.

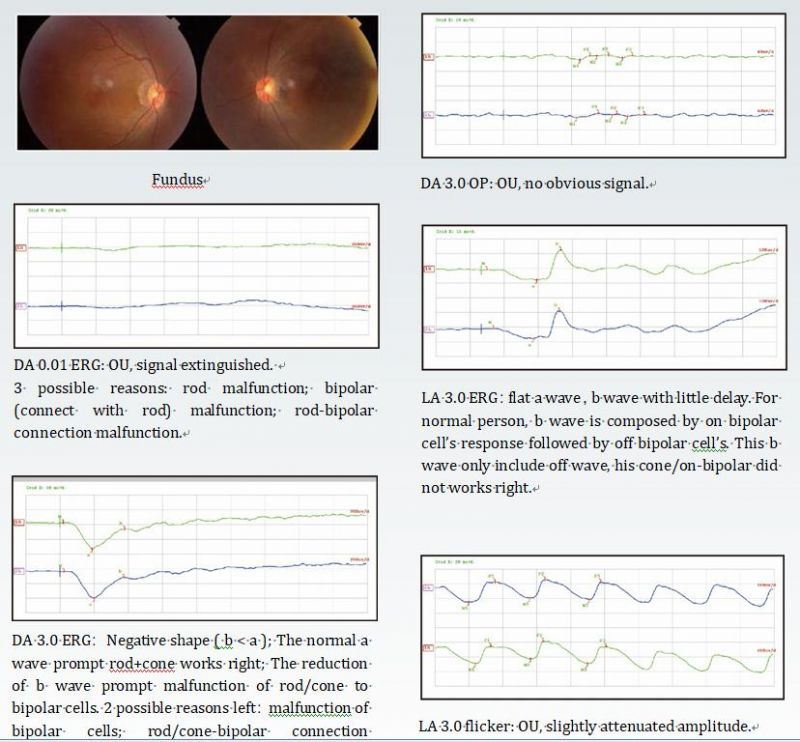

CASE EXAMPLE
VEP - depend on functional integrity of central vision at any level of the visual pathway including the eye, retina, the optic nerve, optic radiations, and occipital cortex;
ERG/FERG - mainly reflect function of rod/cone and connected bipolar cells, rod/cone system can be isolated through dark/light adaptation;
PERG - represent function of ganglion cells when photo-receptor & bipolar cells works fine;
EOG - is an electrophysiological test of function of the outer retina and retinal pigment epithelium (RPE).
