• Model NO.：DN1000
• Working Power：220VAC +10%, - 15%; 50Hz ± 5Hz
• Work Mode：Inspection
• Contact Capacity：220VAC, 10A
• Display：3.5-Inch LCD Screen
• Input Signal：RS485
• IP Rating：IP54
• Output Signal：RS-4854, RS232, TCP , IP Network Port
• Environmental Pressure：86 ~ 100kpa
• Transport Package：5.5kg
• Specification：Product size: 28cm*20cm*8.8cm
• Trademark：Korno or customized
• Origin：China
• HS Code：8531100000
• Production Capacity：10000,Month

Basic Info.

Model NO. DN1000 Working Power 220VAC +10%, - 15%; 50Hz ± 5Hz Work Mode Inspection Contact Capacity 220VAC, 10A Display 3.5-Inch LCD Screen Input Signal RS485 IP Rating IP54 Output Signal RS-4854, RS232, TCP / IP Network Port Environmental Pressure 86 ~ 100kpa Transport Package 5.5kg Specification Product size: 28cm*20cm*8.8cm Trademark Korno or customized Origin China HS Code 8531100000 Production Capacity 10000/Month

Product Description

Gas Alarm System Gas Alarm Controller 8 Channels Gas Detector Controller

Product Description:

The DN1000 series gas alarm controller can be applied to the measurement and control of various signals, such as 4-20mA signals, RS-485 signals, and TCP/IP network interface devices.
The electronic circuit adopts advanced high precision micro-controller processing technology, which makes the controller work stably with high measuring precision and strong generality.

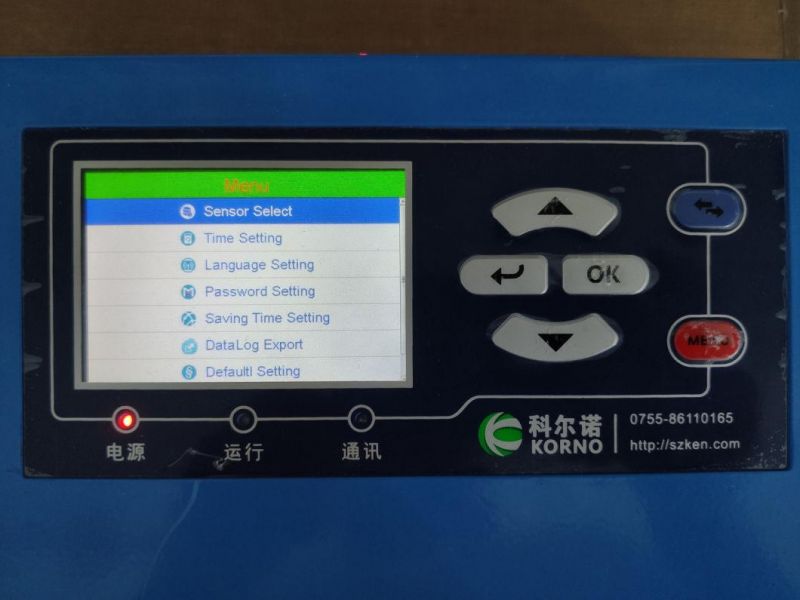

The system adopts Andriod operating system. Therefore, it has user-friendly operation interface, powerful system function. Operating the system menu through buttons, the main display screen displays gas detector concentration value, alarm information, fault information and other information.



Key Features

•  standard 4-20mA signals input, supports up to 8 detectors input
•  standard Modbus RS-485 signal input, supports up to 8 detectors input
•  standard TCP/IP network port device input
•  32G mass data storage,TF card data export, data printing
•  2 relays outputs as standard,each relay out can control one jet fan
•  RS485, multi-channel 4-20mA signal, TCP/IP network port output
•  split-screen display function, each screen display related data of 8 channel

Technical Parameters


Product name	Gas Alarm Controller
Product model	DN1000
Working power	220VAC
Standby power supply	24VDC
Work mode	inspection
Input signal	4 ~ 20mA signal (two-wire or three-wire gas detector); Modbus RS485 signal; TCP / IP network port equipment optional
Output signal	RS-4854,  TCP / IP network port output, multi-channel 4 ~ 20mA    signal output (optional)
Alarm record	with status bar information alarm prompt function, with alarm record query function
Alarm alarm set	the alarm set, the normal alarm settings: A1 alarm, A2 alarm, A3 alarm; interval alarm settings: AL alarm point, AH alarm point
Alarm output	2 group of public relays set the alarm output of each device
Contact capacity	220VAC, 10A
Communication interface	RS-485 MODBUS;  Ethernet port
Operating temperature	-20 ºC - 55 ºC
Operating humidity	0-90% relative humidity (no condensation)
Environmental pressure	86 ~ 100kPa
Display	3.5-inch  LCD screen
Measurement accuracy	≤ ± 1%
Housing material	SPCC (304 stainless steel is optical)
Dimensions	280mm (L)× 88mm (H)× 200mm(W)
Weight	4KG
Alarm mode	sound alarm, red LED alarm light, short distance wireless alarm transmission
Button operation	with muffler, lock screen, flip three key operation
Direct reading	measured value
Data records	automatically stored the data is available optional micro TF memory card
Calibration	supports 4mA, 20mA current calibration operation
Protection class	IP54
Operating mode	User mode, administrator mode are available
Implementation of the standard	GB 16808-2008
