• Model NO.：NFP-1
• Ignition Timing：0~99.99 Seconds
• Sample：Density Less Than or Equal to 700,B,M²
• Weight：About 50kg
• Display：LCD
• Color：White
• Applicating：Draperies,Curtains,Fabrics
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. NFP-1 Ignition Timing 0~99.99 Seconds Sample Density Less Than or Equal to 700/B/M² Weight About 50kg Display LCD Color White Applicating Draperies,Curtains,Fabrics Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 30 Sets/Month

Product Description

Products:
This  Ignition Resistance Tester is designed according to NFPA 701,which regulations fabrics and films flame propagation test method for fabrics, and apply to curtains and drapes, curtains, or other shelter materials windows, awning, tent, waterproof cloth and fabric structure similar construction and banners.


Standards:
National Fire Protection Association (NFPA) NFPA 701: 2004 & 2009 Edition Test Method 1


Main Features:
1, Box of  Ignition Resistance Tester is painted,and it has transparent viewing window for easy inspection;
2, Combustion chamber dimensions: length 940mm x width 505mm x height 705mm;
3, Electronic automatic ignition, import Meker Burner;
4 Burner automatic timing; automatic timing reminder;
5, Ignition timing 0~99.99 seconds set arbitrarily, continued burning time and flame time are automatically recorded, digital display;
6, The flame height can be adjusted freely, flame temperature measuring device can be configured;
7, "Push-pull" rack fixture is provided with Ignition Resistance Tester;
8, The burner is fixed to the sliding track, easy to operate, the needle can adjust the flame height;
9 , Meter range: 0~1800cc/min;
10, Power supply: 220V, 50Hz, 30W.


Test Method 1 vs Test Method 2... What's the difference?

Test Method 1 applies to materials with a density less than or equal to 700/b/m². Items that fall within this category would be draperies/curtains or other fabrics used as window treatments. They are single layer fabrics. It is usually single-layer fabrics.  The exception to this is when more than one layer is fastened together by sewing or other mechanical means.



Test Method 2 applies to plastic films, vinyl-coated fabric such as blackout linings, or lined curtains that have a vinyl coating.  Decorative materials other than fabrics fall within this category.  fabrics with or without reinforcement or a backing that is used as decoration inside a building must also pass Test 2. This also includes permanent enclosures for building under construction. Of course awnings, plastic tarps, tents, banners or membrane structures must meet the Test 2 requirements. These items cannot be tested to Test 1, only Test 2.  If you aren't sure, please contact the NFPA or visit their website.  The information is quite extensive and detailed.  The purpose of this article was to give the reader a look into the fire certifications that apply to fire retardant/ flame retardancy of plastic sheeting.

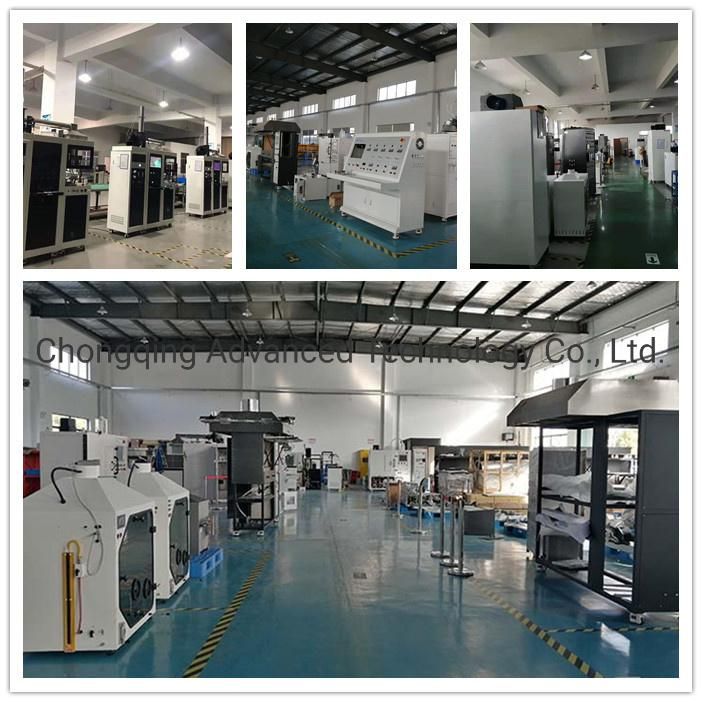

Factory Show

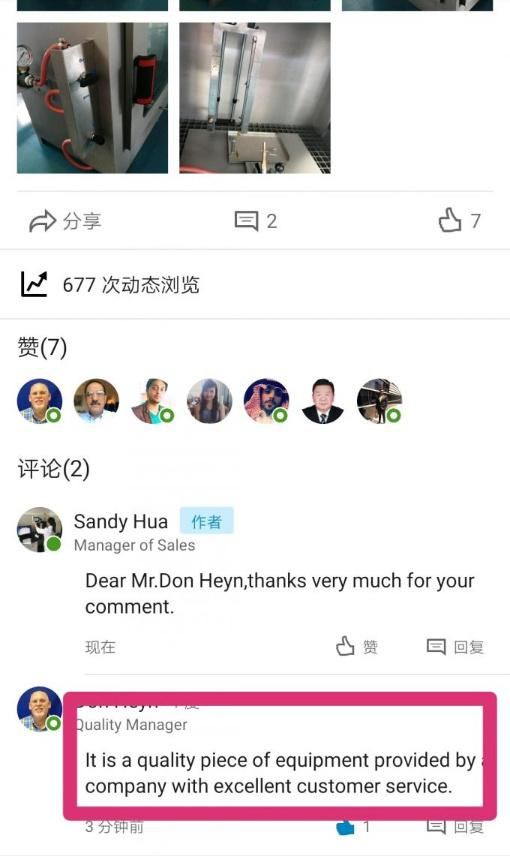

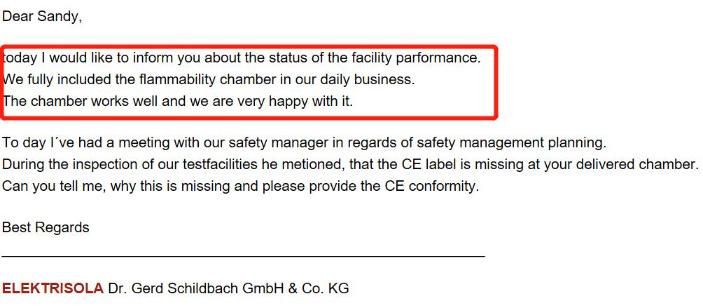

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 30 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
