ASTM D5230 Automatic Carbon Black Rubber Automated Individual Pellet Hardness Particle Crush Strength Processability Tester

Chongqing TOP Oil Purifier Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：1 Year Warranty
  • Application：Carbon Black, Rubber, Fertilizer, Medicine, Fruit
  • Function：Test Automated Individual Pellet Hardness
  • Measurement Range：0~100, 0~200, 0~300, 0~500n (Factory Setting)
  • Display Resolution：1,10000

Base Info

  • Model NO.：HAD-4
  • Particle Diameter：<30mm
  • Relative Humidity：<85%
  • Dimensions：270mm (L) * 190mm (W) * 350mm (H)
  • Transport Package：Standard Export Box
  • Specification：ASTM D5230
  • Trademark：TOP OIL TESTER
  • Origin：Chongqing, China
  • Production Capacity：100 Sets,Month

Description

Basic Info.

Model NO. HAD-4 Particle Diameter <30mm Relative Humidity <85% Dimensions 270mm (L) * 190mm (W) * 350mm (H) Transport Package Standard Export Box Specification ASTM D5230 Trademark TOP OIL TESTER Origin Chongqing, China Production Capacity 100 Sets/Month

Product Description

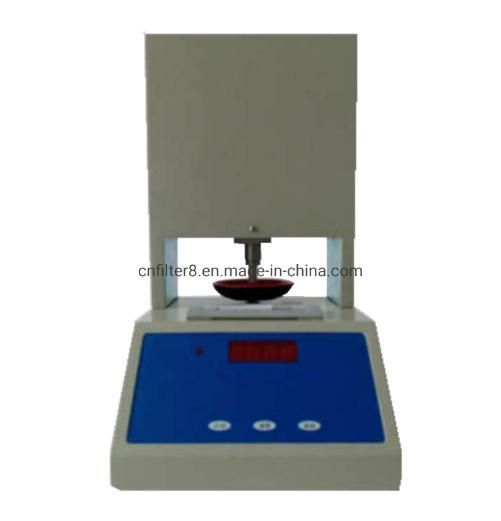

ASTM D5230 Carbon Black Automated Individual Pellet Hardness Tester HAD-4ASTM D5230 Automatic Carbon Black Rubber Automated Individual Pellet Hardness Particle Crush Strength Processability TesterProduct description:
      The instrument adopts advanced microcomputer control to automatically complete the operations of hardness, measurement, display, maximum intensity value locking and resetting. It has automatic zero adjustment, automatically judges the pressure value when the sample is broken, and directly displays the particle strength of each sample to be measured value.
     It is used to measure the polumerization strength of chemical fertilizers, medicines and fruits, also the crush strength of carbon black pellets.
     Applicable standard: ASTM D5230 Standard Tester Method for Carbon Black-Automated Individual Pellet Hardness
 Technical Parameters:
 1. Measurement range: 0~100, 0~200, 0~300, 0~500N (factory setting); 2. Display range: -1999~9999 decimal point position can be set; 3. Display resolution: 1/10000, Measurement resolution: 1/60000; 4. Basic error: <0.2% FS ± 1N; 5. Display: The instrument display design is 0.00N; 6. Particle diameter: <30mm; 7. Relative humidity: <85%; 8. Power supply voltage: 220V AC ± 10%; 9. Dimensions: 270mm (L) * 190mm (W) * 350mm (H)
