• Model NO.：UP-14
• Temperature Range：0~99.9ºC
• Output：4~20 Ma
• Communication：RS-485
• Accuracy：Chlorine:±0.01mg,L,Temp: ±0.5ºC
• Minimum Detection Limit：0.01mg,L
• Meter Size：96mm X96mm X130mm
• N.W：0.5kg
• Transport Package：Professional Export Packaging
• Origin：China
• HS Code：9024800000
• Production Capacity：1000,Year

Basic Info.

Model NO. UP-14 Temperature Range 0~99.9ºC Output 4~20 Ma Communication RS-485 Accuracy Chlorine:±0.01mg/L,Temp: ±0.5ºC Minimum Detection Limit 0.01mg/L Meter Size 96mm X96mm X130mm N.W 0.5kg Transport Package Professional Export Packaging Origin China HS Code 9024800000 Production Capacity 1000/Year

Product Description

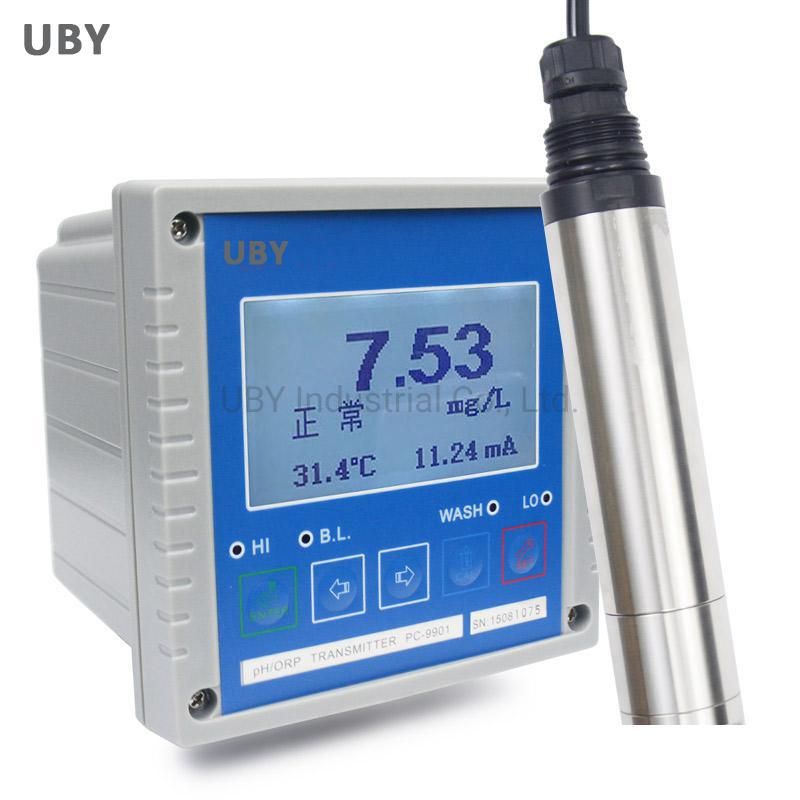

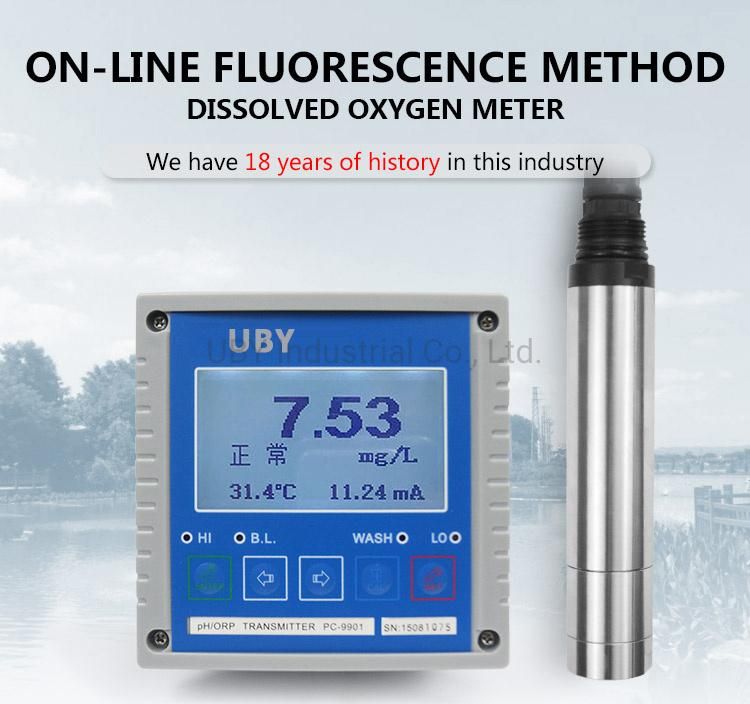

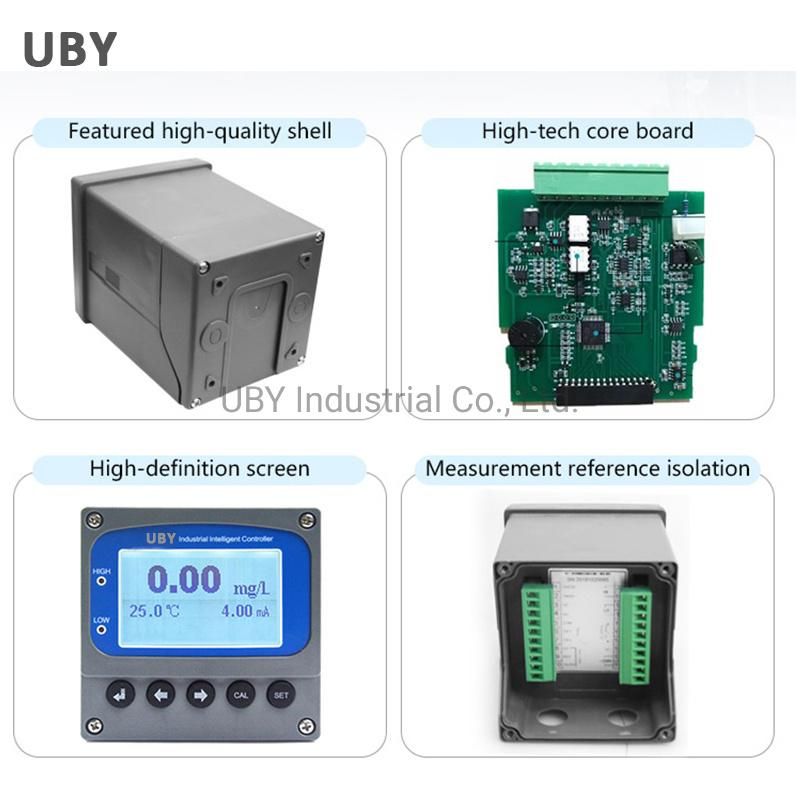

Digital Aquaculture DO Analyzer Online Fluorescence Method Dissolved Oxygen Meter
Product Description
Applications:

It is widely used in continuous monitoring of dissolved oxygen, saturation, oxygen partial pressure and temperature in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water solutions.

Feaures:

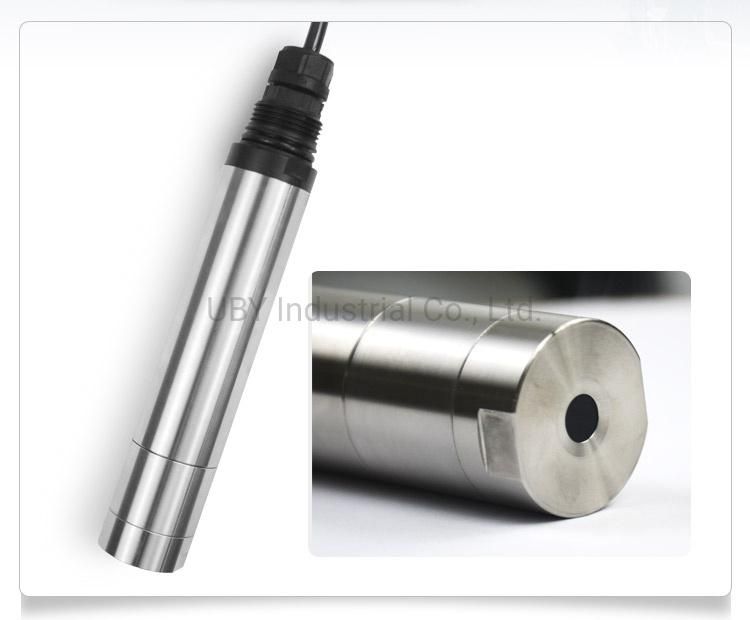

1. Using photoelectric technology, low maintenance rate and high stability;
2. No oxygen consumption, no flow rate requirements, can be measured by purified water;
3. Good compatibility, the sensor provides standard 4~20mA signal, which can be interchanged with E+H sensor;
4. Strong anti-interference ability, full digital processing technology and full stainless steel shell shielding;
5. Automatic temperature compensation.

Specifications:

Product Name:	Dissolved Oxygen Controller
Measuring principle:	Fluorescence method
Screen size:	2.8 inch(128*64)
Measuring range:	Oxygen content:0~20mg/L; Saturation:0~200%
Accuracy:	±1%FS
Resolution:	Oxygen content:0.01mg/L; Saturation:0.1%
Repeatability:	±0.5%FS
Temperature range:	-10~+60ºC
Resolution(temperature):	0.1ºC
IP grade	IP68
Correction accuracy (temperature):	±0.5ºC
Temperature measurement type:	Manual/Auto(NTC10K / PT1000)
Power supply:	AC220V±10%,50Hz/60Hz
Relay alarm:	250VAC/3A
Communication:	RS485(compatible with MODBUS RTU)
Transmitting function:	Isolated transmission 4-20mA output, maximum loop 750Ω, 0.1% FS

Related Products:Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products is confirmed shipping time and inform the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
     Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
      Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
 2. What about the delivery term?
 For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
 If there is no stock, normally, the delivery time is 15-20 working days after payment received;
 If you are in urgent need, we will make a special arrangement for you.
 3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on site.
