• Model NO.：EC-6801
• Accuracy：±1%Fs
• Medium Temperature：5~100ºC
• Power Input：100~240VAC 50,60Hz
• Temperature Compensation Element：Ntc 10K
• Meter Size：96mm X96mm X130mm
• Usage：Analysis Ec, TDS
• Customized Support：OEM, ODM, Obm
• Transport Package：Professional Export Packaging
• Origin：China
• HS Code：9024800000
• Production Capacity：1000,Year

Basic Info.

Model NO. EC-6801 Accuracy ±1%Fs Medium Temperature 5~100ºC Power Input 100~240VAC 50/60Hz Temperature Compensation Element Ntc 10K Meter Size 96mm X96mm X130mm Usage Analysis Ec, TDS Customized Support OEM, ODM, Obm Transport Package Professional Export Packaging Origin China HS Code 9024800000 Production Capacity 1000/Year

Product Description

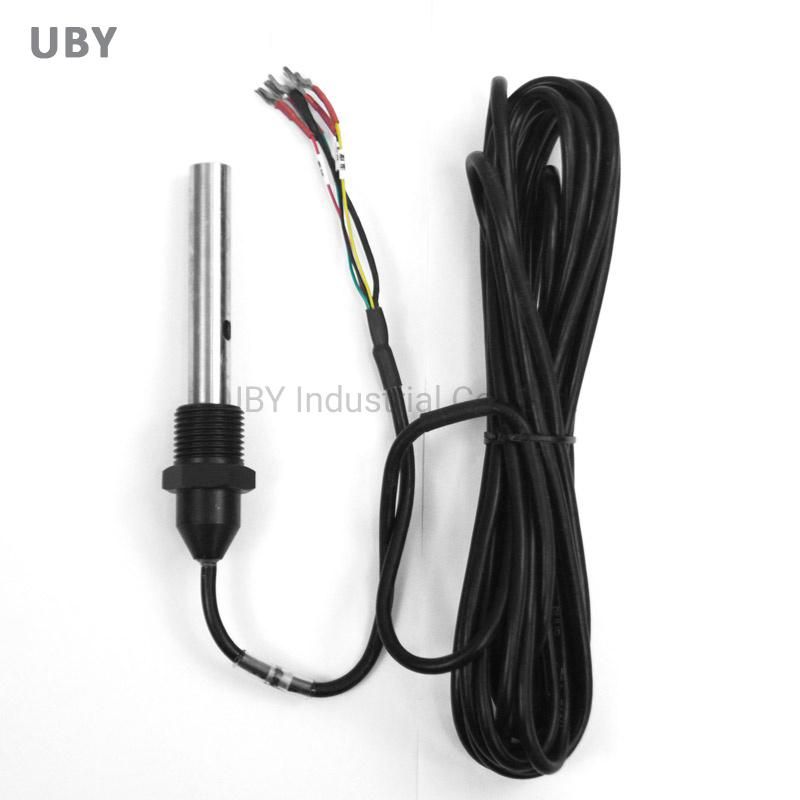

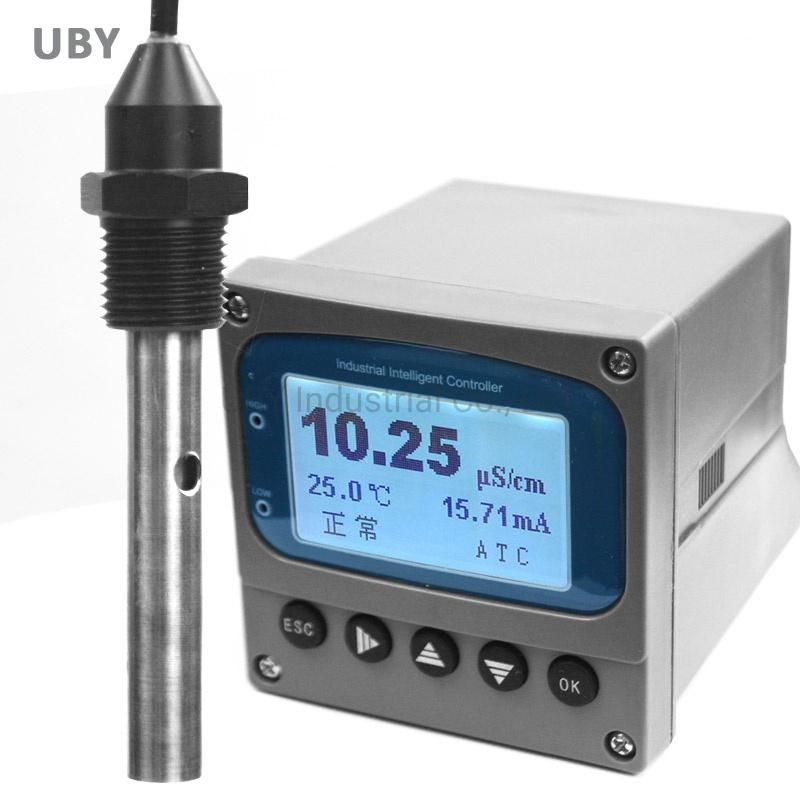

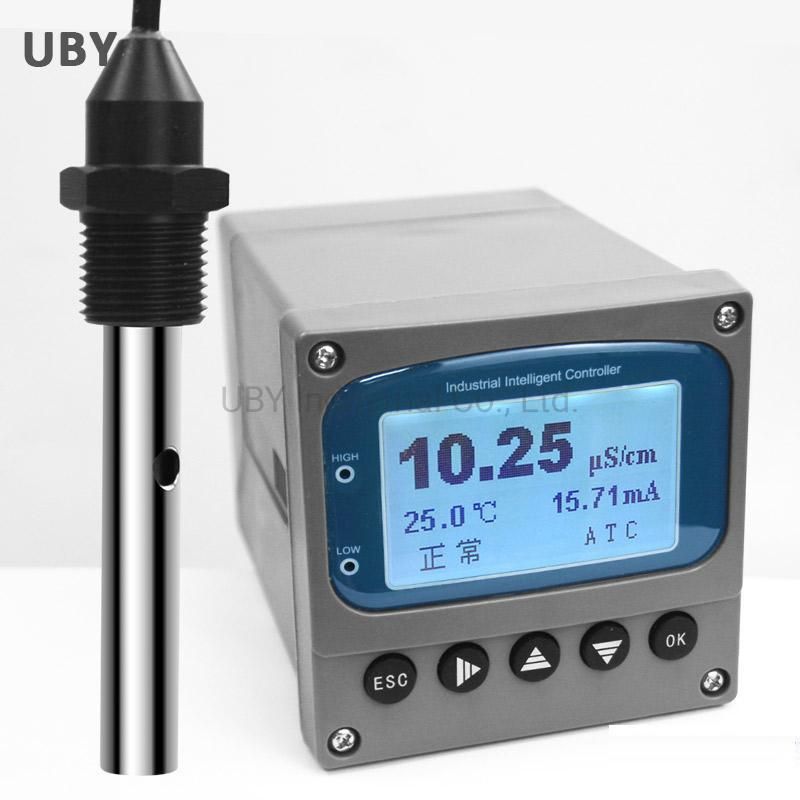

4-20mA Industrial Online Monitoring TDS Conductivity Sensor Conductivity Electrode Transmitter
Product Description

1. 96x96 online microcomputer intelligent conductivity transmitter;
2. Outdoor waterproof design, suitable for wall installation, panel installation, round tube installation;

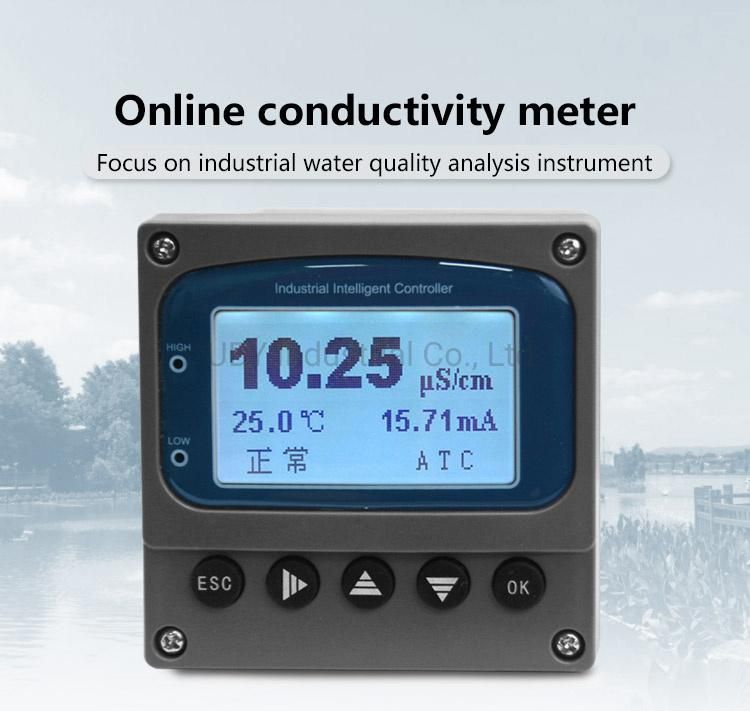

3. Large screen dot matrix LCD display, Chinese menu operation;
4. Conductivity and temperature compensation coefficient and TDS conversion coefficient can be carried out;
5. Two-way relay, which can control the conductivity and temperature separately, and the amount of hysteresis can be adjusted freely;
6. The audible alarm can be switched on and off, set on or off through the interface options;
7. The LCD backlight can choose energy-saving mode and turn off automatically at regular time;
8. Password management function to prevent misuse of non-professionals.

Specifications:

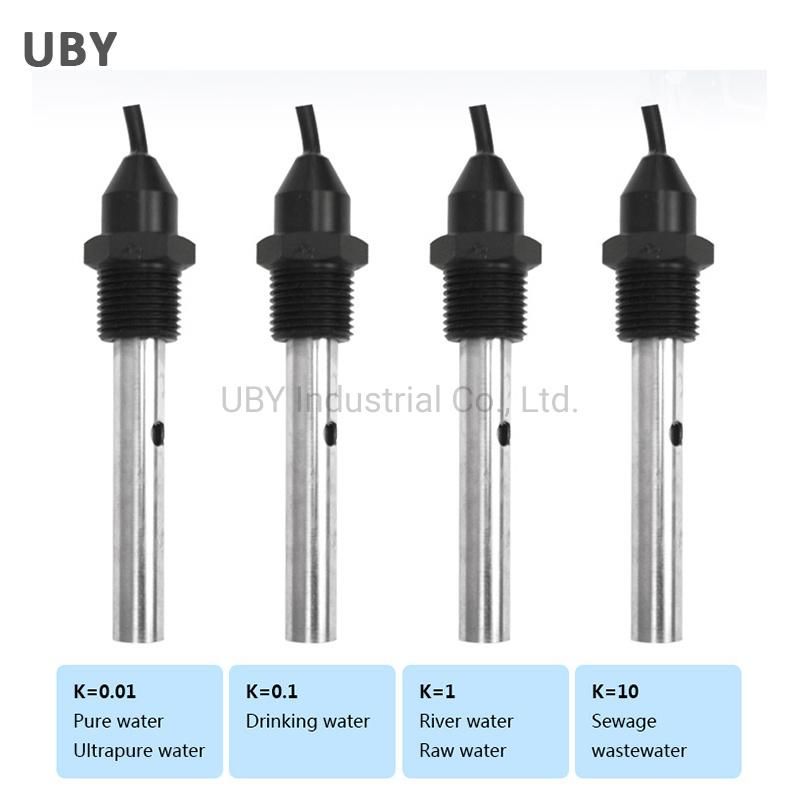

Measuring range	0.02~20uS/cm(with K=0.01 electrode) 0.2~200uS/cm(with K=0.1 electrode) 2.0~2000uS/cm(with K=1.0 electrode) 20~20000uS/cm(with K=10 electrode)
Measuring range	0.01~10ppm(with K=0.01 electrode) 0.1~100ppm(with K=0.1 electrode) 1.0~1000ppm(with K=1.0 electrode) 10~10000ppm(with K=10 electrode)
Accuracy	±1%FS
Resolution	0.01uS/cm(ppm)
Stability(24H)	±1%FS
Temperature range	-10~+130ºC
Resolution ( temperature )	0.1ºC
Accuracy ( temperature )	±0.5ºC
Power supply	AC220V±10%,50Hz
Relay alarm	250VAC/3A

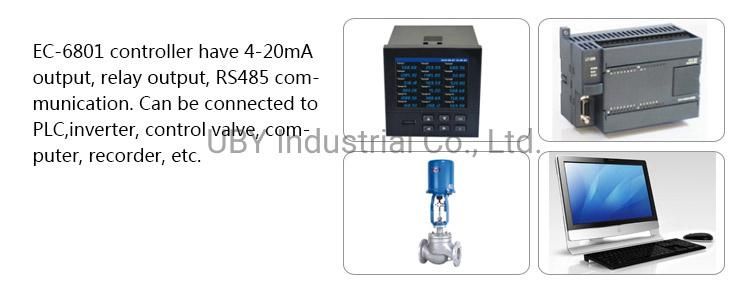

Communication	RS485 (compatible with MODBUS RTU)
Transmitting function	Isolated transmission 4-20mA output, maximum loop 750 Ω, ≤±1% FS
Dimensions (mm)	96*96*110
Opening size (mm)	92.5*92.5
cable length	Standard 5m



Related Products:Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products is confirmed shipping time and inform the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
     Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
      Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
 2. What about the delivery term?
 For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
 If there is no stock, normally, the delivery time is 15-20 working days after payment received;
 If you are in urgent need, we will make a special arrangement for you.
 3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on site.
