• Model NO.：TP-6A
• Operating Mode：Touch Screen
• Heating Mode：Standard Heating
• Off Mode：Automatic
• Condition：New
• Color：Gray
• Model：Tp-6A
• Method of Testing：Karl Fischer Coulometric Method
• Moisture Content Range：0.0001%(1ppm )---100%
• Self-Checking：Breakdown Self-Checking Button
• Testing Range：1ugh2o---100mgh2o
• Method of Displa：Highlight Six-Digit Nixie Tube Display
• Power Consumption：<40W
• Transport Package：Standard Export Wooden Case
• Specification：ISO,CE
• Trademark：TOP Oil Purifier
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Mouth

Basic Info.

Model NO. TP-6A Operating Mode Touch Screen Heating Mode Standard Heating Off Mode Automatic Condition New Color Gray Model Tp-6A Method of Testing Karl Fischer Coulometric Method Moisture Content Range 0.0001%(1ppm )---100% Self-Checking Breakdown Self-Checking Button Testing Range 1ugh2o---100mgh2o Method of Displa Highlight Six-Digit Nixie Tube Display Power Consumption <40W Transport Package Standard Export Wooden Case Specification ISO/CE Trademark TOP Oil Purifier Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Mouth

Product Description

Application:

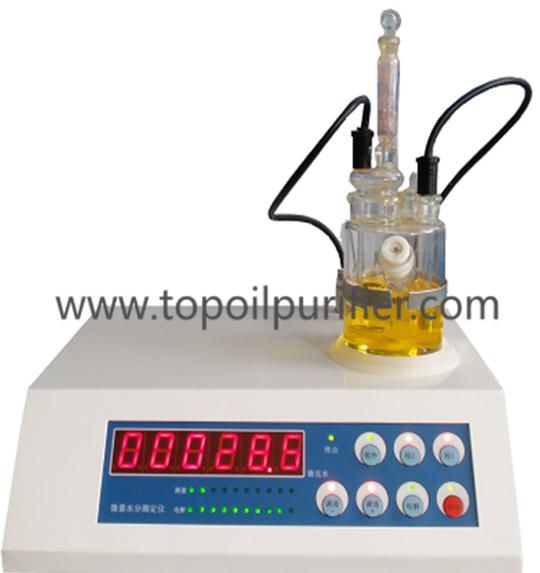

This TP-6A water content tester adopts the global recognized classical moisture testing method - Karl Fischer Coulometric Method which is the most accurate method with low cost. With the universal standard and analyzing method, it can quickly analyze the moisture content in liquid, solid and gas and directly display testing results, with testing range from 0.0001%(1ppm) to 100%. Therefore, this testing method has been widely used in institutions and enterprises of petroleum, chemical industry, power, pharmaceuticals, pesticide, railways, research, etc.
The whole testing process is automatically controlled by this tester itself. Its auto-stirring and analyzing would be finished within 60seconds, and results would be displayed directly. Totally closed titration system avoids damage to operator from reagent. Equipped with 500ml Karl Fischer Reagent, which could test about 1000 times sample continuously, completely avoiding big deviations of other moisture testing method and thus improving quality index of products.  Conform to Standards as follow
GB6283-86 Chemical Products-Determination of Water Karl Fischer Method(General Method)
GB/T606-2003 Chemical Reagent-General Method of Determination of Water(Karl Fischer Method)
GB/T11133-1989 Liquid Petroleum Products-Determination of Water(Karl Fischer Method)
SH/T0246 Light-fuel Petroleum Products-Determination of Water(Coulmetric Titration Method)
GB/T7380-1998 Surface Active Agent-Determination of Water(Karl Fischer Method)
GB/10670-1989 Industrial Fluomethane-Determination of Trace Water(Karl Fischer Method)
GB/T3776.1-1983 Pesticide Emulsifier-Determination of Water
GB/T6023-1999 Industrial Butadiene-Determination of Trace Water(Karl Fischer Coulometric Method)
GB/T1600, GB7600, B/T 18619.1, SH/T 0255 etc.

Application Area:

Liquid	Chemical Industry:alcohols, ethers, esters, alkenes, benzenes, amines, organic solvents, phenols and other organic products applicable to Karl Fischer Method for determination Petroleum and Power Industry:Insulation Oil, Transformer Oil, Turbine Oil, etc. Pharmaceutical Industry :medicine materials Pesticide Field:emulsifier Other Industry:electrolyte of lithium battery
Solid	Various mineral salt, citric acid, explosives, paraffin and other solids with good solubility
Gas	Natural gas, liquefied gas, Freon, butadiene, chloromethane, etc.

Test Parameters:

Method	Karl Fischer Coulometric method (Cartesian)
Display	Six highlighted LED digital display
Test range	3 μg -100 μg H2O (3ppm ~ 100% water content)
Over iodine shows	Over iodine indicator
End point indication	Sound warning / light indication
Result display	µgH2O
Electrolytic current	0-300mA automatic control
Resolution	0.1µgH2O(0.1ppm)
Accuracy	water content is 3μg_1μg water,Error is less ±0.3% Water content is above 1μg, Error is less ±0.5%(Not include the input oil sample error)
Self-checking	automatic self fault checking
Drift C ompensation	micro computer automatic control
Mixture Speed	adjustable
Power Supply	AC 220V ±10% , 50Hz
Ambien t Temperature	5 °C -40 °C
Ambient humidity	< 80%
Dimension	320x260x90mm

Our Service
Pre -sale Service:
1. Reply promptly in 24 hours with fluent English and professional knowledge
2. Provide best necessary spare parts at low price (some for free)
3. If there is something wrong with the equipment,we will give a response and provide the solutions in 24h
4. Provide long term technical support and innovation upgrade guidance
5. OEM is available for TOP Products
6. Protect sales area, ideas of design and all your private information

After-sale Service:
1.The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
2. We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
3. We build instrument service profile for our clients to record the product service and maintenance conditions.
4. After instruments start service, we will pay follow-ups to collect the service conditions.

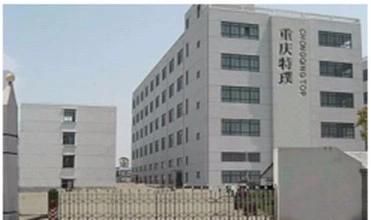

Our Company:
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various testers for petrochemical products and power equipment.

TOP Oil Purifiers provide you with reliable insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine oil reconditioner,dielectric fluid regeneration system, circuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers,transformer substation electrical testing equipment and circuit detecting equipment. Main products are trace water content testers, fully auto surface/interfacial tension testers, open/closed cup flash point testers, kinematic viscosity testers, oil acidity testers, air release value testers, multifunctional degassing oscillation instruments, dielectric loss testers, insulation oil dielectric strength testers, transformer characteristics comprehensive testers, relay protection testers, cable testers, high voltage testing equipment etc.




Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

Main products

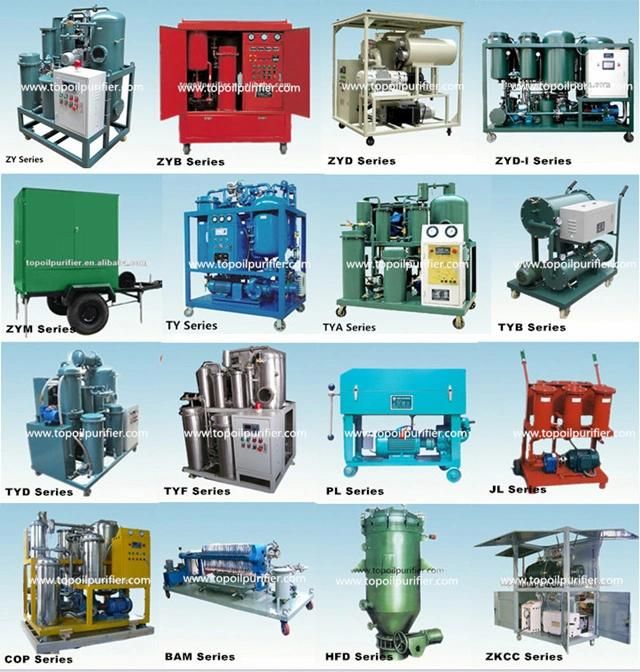

Our oil filtration machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine

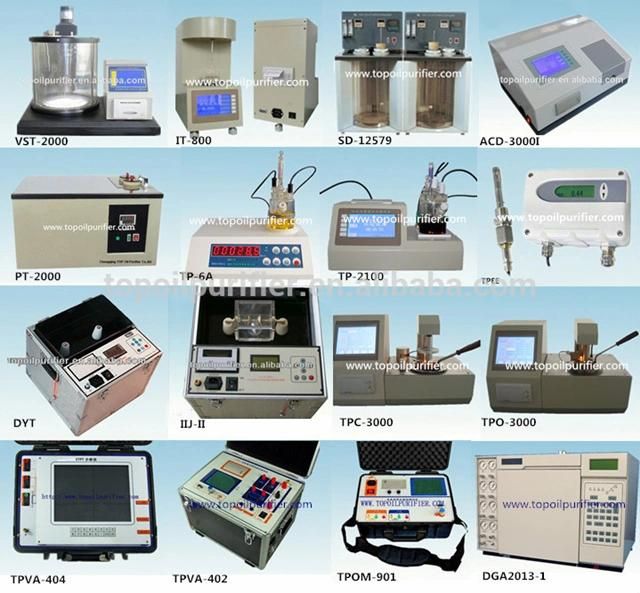

Petroleum Products General Testers:
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Digital Karl Fischer Water Content Tester TP-6A
3.Kinematic Viscosity Tester VST-2000
4.Kinematic Viscosity Tester TPV-8
5.Kinematic Viscosity Tester VST-3000
6.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.Fully Automatic Surface/Interface Tension Tester IT-800
8.Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.Fully Automatic Open Cup Flash Point Tester TPO-3000
10.Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.Digital Open Cup Flash Point Tester TPO-100
12.Digital Closed Cup Flash Point Tester TPC-100
13.Cloud Point & Pour Point Tester PT-2000
14.Multi-functional Vibration Tester VBT-2000
15.Automatic Potentiometric Titrator TP668
16.Petroleum Products Density Tester DST-3000
17.Petroleum Products Density Tester TP-109A
18.Karl Fischer Volumetric Water Content Titrator TPD
19.Distillation Range Tester DIL-201
20.Online Oil Quality Tester PTT-002
21.Liquid Phase Corrosion Tester TPS-05
22.Copper Corrosion Tester TP-113
23.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
24.Dew Point Tester DPME-P
25.Portable Chilled Mirror Dew Point Tester TP-1500
