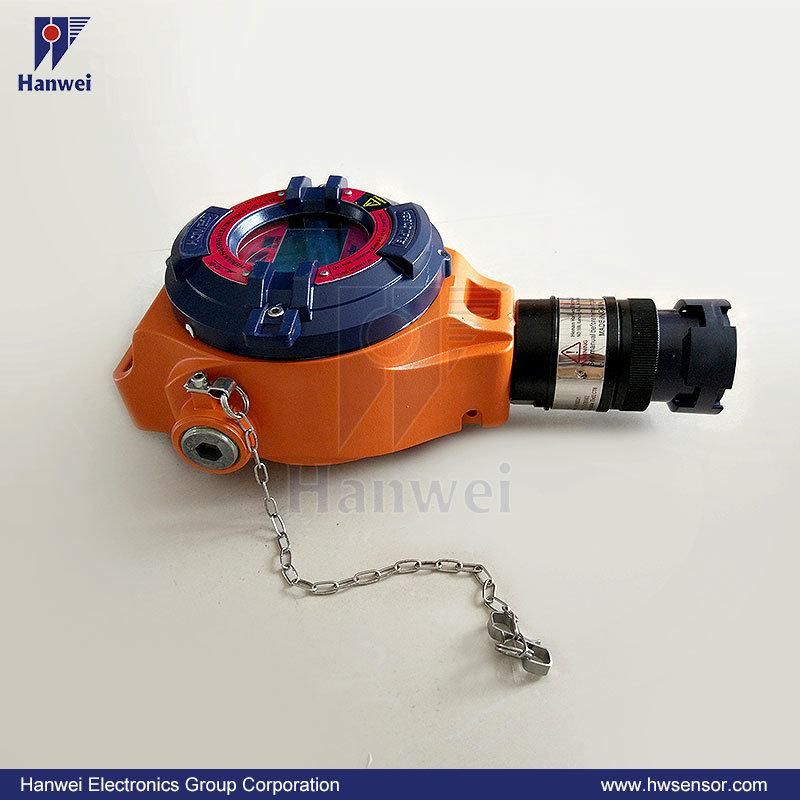

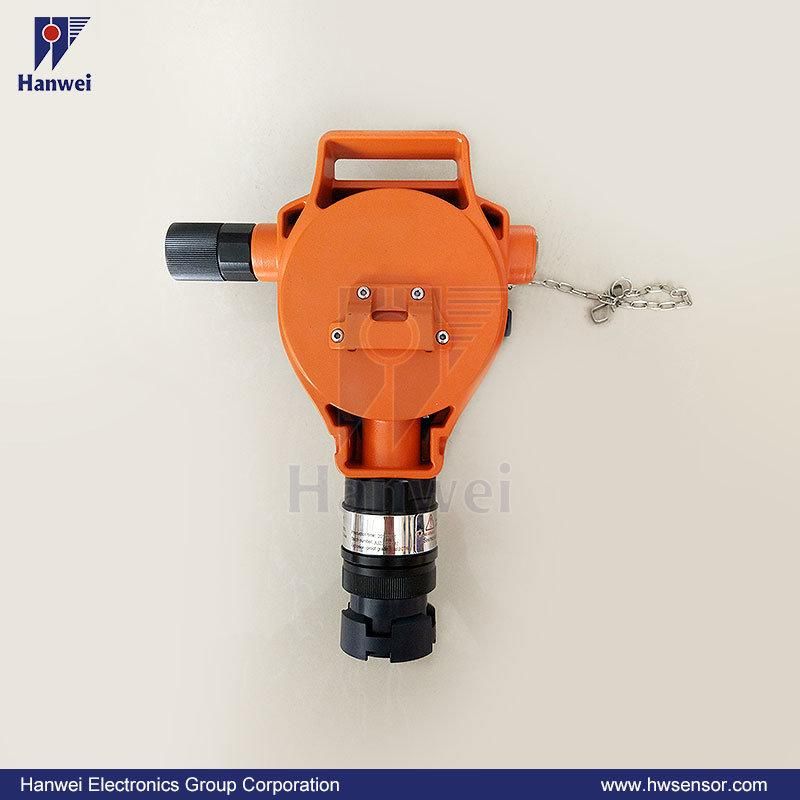

4-20mA LCD Displayed 0-1000ppm Co Fixed Gas Detector for Steel Industries
HANWEI ELECTRONICS GROUP CORPORATION- Brand:Hanwei Electronics
- Customized:Customized
- Portable:Non Portable
- Certification:RoHS
- Gas:CO
- Type:Fixed Gas Detector
Base Info
- Model NO.:WD6200
- Sensor Type:Catalytic or Electrochemical or Infrared
- Consumption:≤5W
- Protection Grade:IP65
- Sampling Method:Natural Diffusion
- Transport Package:Carton
- Origin:China Mainland
Description
Basic Info.
Model NO. WD6200 Sensor Type Catalytic or Electrochemical or Infrared Consumption ≤5W Protection Grade IP65 Sampling Method Natural Diffusion Transport Package Carton Origin China MainlandProduct Description
DescriptionWD6200 is an advanced 4-20mA LCD Displayed Fixed Gas Detector for the detection of combustible gases, toxic gases and oxygen levels. Provides advanced technology, easy operation, reliable and cost-effective gas monitoring.
Applications
WD6200 4-20mA LCD Displayed Fixed Gas Detector is widely used in the fields of oil processing plants, chemical factories, metallurgy, power plants etc.
Features
Explosionproof design
Smart sensor module
SIL2 certificate
LCM screen display

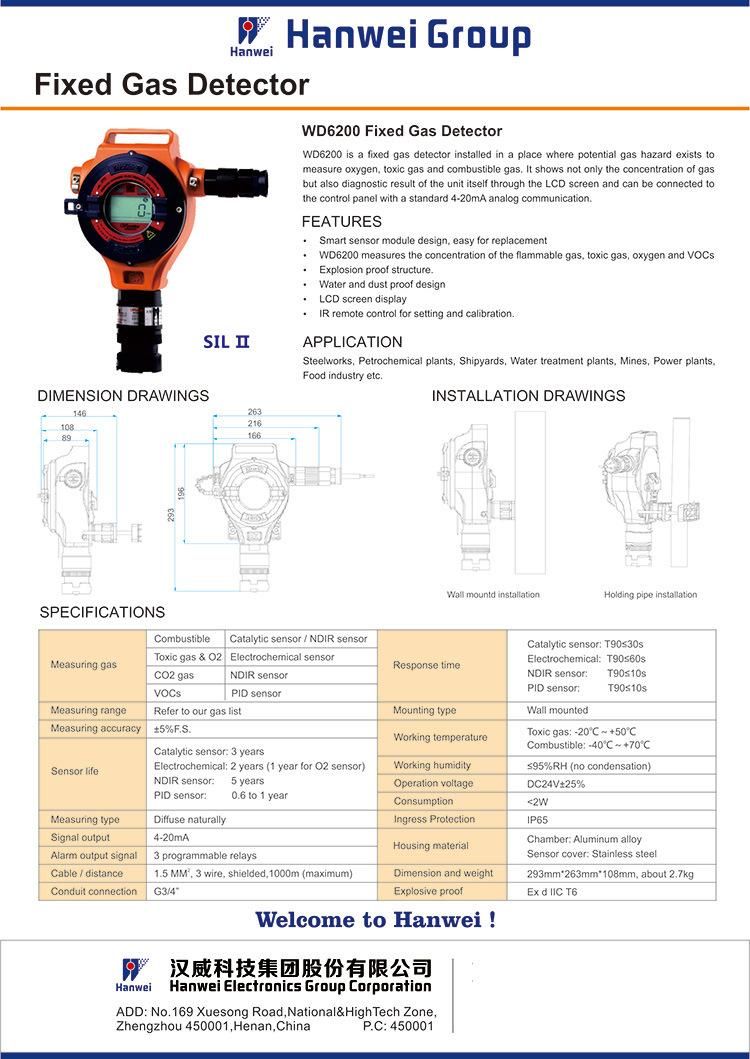

Technical Data
Sensor Type: Catalytic or electrochemical or infrared
Working Method: Natural diffusion
Working Voltage: DC24V±25%
Consumption: ≤5W
Accuracy: ≤±5%FS
Indication: LCM screen
Response Time (t90): ≤30s (LEL)/ ≤60s (Toxic gas / O2)
Temperature: -40ºC~70ºC (LEL) / -20ºC~50ºC (toxic gas / O2)
Humidity: ≤95%RH
Protection Grade: IP65
Signal Output: 4-20mA
Cable required:
≥1.5mm2 × 3 core cable (420mA type)
≥1.5mm2 × 4 core cable (RS485 type)
Distance to the panel: ≤1000m
Sensor life:
Catalytic: 3 years, Electrochemical: 2 years, Infrared: ≥ 5 years
Dimensions and Weight: 293mm×263mm×108mm, about 2.7kg
