• Model NO.：PT-CS-8820
• Function：Cleared
• Weight：0-100Kg
• Power Source：AC220V±5%
• Customized：Non-Customized
• Indoor Temperature：10ºC-30ºC
• Relative Humidity：<75%
• Oxygen Purity：≥99.5%
• Input Pressure：0.18MPa±5%
• Host Size：540mm(L)*600mm(W)*800(H)
• Analysis Precision：C:≤rsd0.5%. S:Rsd≤1.0%
• Sensibility(Min. Reading)：0.1ppm
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. PT-CS-8820 Function Cleared Weight 0-100Kg Power Source AC220V±5% Customized Non-Customized Indoor Temperature 10ºC-30ºC Relative Humidity <75% Oxygen Purity ≥99.5% Input Pressure 0.18MPa±5% Host Size 540mm(L)*600mm(W)*800(H) Analysis Precision C:≤rsd0.5%. S:Rsd≤1.0% Sensibility(Min. Reading) 0.1ppm Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

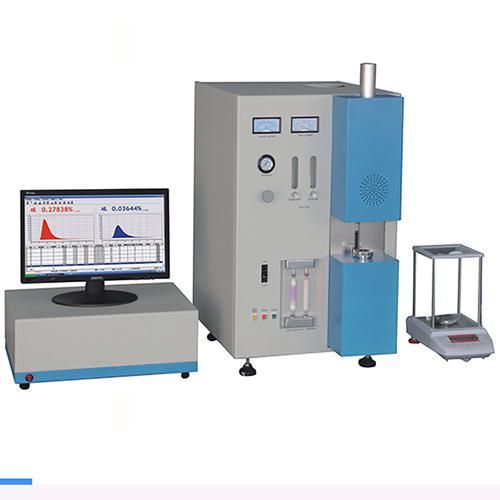

Item: High-precision high-frequency infrared carbon and sulfur analyzer carbon sulphur analyzer
Model: PT-CS-8820


Specification
Carbon: 0.0001%-10.0000% (can be expanded to 99.9999%)
Sulfur: 0.0001%-3.5000% (can be expanded to 99.9999%)
Convenient, practical, reliable Automatic burner cleaning device It adopts multi-level hidden circuit
Spectral characteristics of high efficiency Automatic detection of solenoid valve Simplify design, smaller size

Summary
CS-8820 is suitable for multi field and all around. Carbon and sulfur analyzer combines with high-frequency induction burner, it is a high-tech product the which based on light, machine, electricity, computer, analytical skills, it has characteristics of wide measuring range and the results of analysis is accuracy and reliable. Because of adopting computer technology, intelligent equipment, screen display, text and data collection, deal with problems and so on have reached the advanced the world level, more industries detect carbon and sulfur elements in this analysis equipment. The key components adopt high quality elements to ensure the instrument stability and high quality.

Applications

CS-8800C High-Frequency Infrared Carbon & Sulfur Analyzer is used to measure mass fraction of carbon and sulfur in steel, iron, alloy, casting core sand, nonferrous metals, cement, ore, coke, catalyst, magnetic materials, ceramics, inorganic matter, graphite, refractory materials, battery materials, plants and other materials. And mainly used in new energy, metallurgy, mechanical, mine, inspection, nuclear industry, coal, automobile, shipping, aviation, food, aerospace, building materials, university, geology, petrochemical and so on.

Features
Infrared Carbon & Sulfur Analyzer
1.Circuit: The entire device adopts double-CPU design, with high-integration electronic circuits to achieve stability and reliability. Meanwhile, it adopts multi-level concealed separation circuit using optical fiber transmission to thoroughly solve the problem of high-frequency interference. 2.Power: Industrial integrated linear modular power provides stable power output with no malfunction.
3.Light Source: Special new platinum infrared light source generates continuing heat and has high spectral efficiency.
4.Analysis Pool: Gilded carbon and sulfur analysis pool and high-precision pyroelectric infrared detectors.

High-Frequency Combustion Furnace
1.High-Frequency Circuit: High-power high-frequency circuit design and ceramic vacuum capacitor can help system do vacuum combustion without samples so that the system reduces load of high-frequency combustion system and improves service lifespan.
2.Control Circuit: Automatic detection of electromagnetic valves, lifting cylinders and high-frequency working conditions.
3.Safety System: Automated overtime and overflow alarm ensures high-frequency furnace under normal condition.
4.Gas Path Structure: Inlet Gas Path System (electromagnetic valves, pipe joints and lifting cylinders) can automatically check leakage.
5.Dust Removal System: Furnace end auto-cleaning device and patent technology of ash discharge system. The dust removal system adopts to achieve good airtightness and purification as well as convenient replacement. It can reduce impact from dust on analysis results.
6.Furnace Body Structure: Low-pressure heating and furnace end constant temperature improves conversion rate of sulfur and makes the analytical results of sulfur stable.

Random Software
1.Analysis Passage: The software provides the function of passage management so that passages of carbon and sulfur can automatically add, delete and edit without limitations in number.
2.Sample Management: It is available to edit names and marks of samples, and add and delete sample names.
3.Display Function: A curve box for carbon and sulfur each. The system monitors real-time data and release curves of carbon and sulfur during the process of analysis.
4.Data Processing Function: The analysis results are stored by ACCESS database. It is available to store all data and curves from every analysis of carbon and sulfur.
5.Search Function: Users can search in terms of time, operators, sample names and marks. 6.Software Function: The system provides multiple functions such as curve/data storage,void removal, parametric settings, passage selection, mathematical statistics, result correction and curve comparison.
7.Printing Function: Printing modes diversify. The system provides two printing modes, i.e., testing laboratory and detection station, and users can voluntarily design printing formats.
8.Self-Diagnostic Function: The software can realize airtightness of furnace end and gas chamber.

Configuration of Computer and Printer
1.Microcomputer: Brand commercial microcomputers.(Mainstream standard configuration, can be selected according to user requirements)
2.Printer: Laser printer (A4 paper) (Mainstream standard configuration, can be selected according to user requirements).
Electronic Scales

Technical parameters

Item	Index
Analysis theory	High-frequency furnace burn infrared absorptive detection.
Range of measurement	Carbon: 0.0001%-10.0000% (can be expanded to 99.9999%) Sulfur: 0.0001%-3.5000% (can be expanded to 99.9999%)
Analytical error	Up to standard of GB/T20123-2006/ISO15350: 2000
Analysis precision	C:≤RSD0.5%. S:RSD≤1.0%
Sensibility(Min. reading)	0.1ppm
Detection point	C:C Pond(can add low C pond) S:S Pond(can add high S pond)
Time of analysis	20-60s can setting(usually 35s)
High-frequency furnace	Power≥2.5KVA-7.5KVA oscillation frequency:18MHz
Electronic balance	Weight the sample in variable amount Accuracy o reading:0.0001g
Working environment	Indoor temperature: 10ºC~30ºC Relative humidity:<75% Voltage:AC220V±5% Frequency 50H±2%
Oxygen	Purity≥99.5%, Input Pressure: 0.18MPa±5%
Weight	80kg
Host size	540mm(L)*600MM(W)*800(H)
