• Model NO.：EA-CS-8620
• Function：Storage
• Weight：0-100Kg
• Power Source：AC220V ± 5%
• Customized：Non-Customized
• Name：Arc Infrared Carbon and Sulfur Analyzer
• Warranty：1 Year
• Reading Accuracy：0.001g
• Work Environment：Room Temperature :10-30 ºC
• Relative Humidity：Less Than 75%
• Voltage：AC220V ± 5%
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. EA-CS-8620 Function Storage Weight 0-100Kg Power Source AC220V ± 5% Customized Non-Customized Name Arc Infrared Carbon and Sulfur Analyzer Warranty 1 Year Reading Accuracy 0.001g Work Environment Room Temperature :10-30 ºC Relative Humidity Less Than 75% Voltage AC220V ± 5% Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

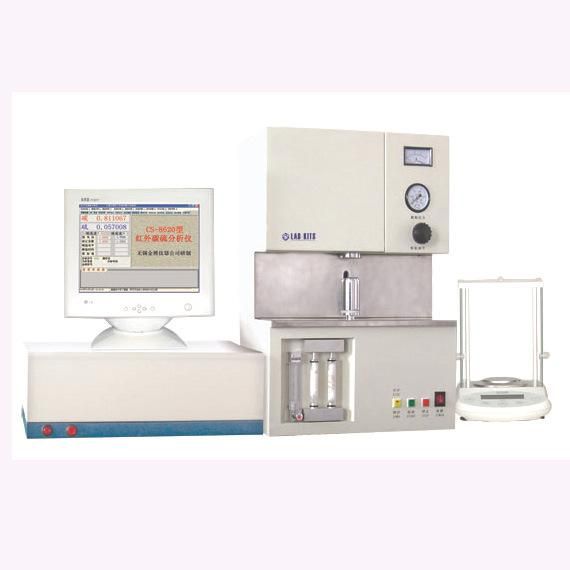

Item: Arc Infrared Carbon and Sulfur Analyzer
Model: EA-CS-8620

Infrared Carbon and Sulfur Analyzer is used in combination with WI-H85 Stainless Steel High-temperature Tubular Combustion Furnace. It can rapidly and accurately conduct content determination of carbon and sulfur in materials like steel, iron, alloy, nonferrous metals, cement, minerals and catalysts, etc. This is a high-tech product that integrates light, electrical, computer, and analysis technology into one. It has the advantages of wide measuring range, strong anti-interference ability, complete function, simple operation, accurate and reliable analysis and so on, thus an ideal analysis equipment in determining carbon and sulfur in lots of industries.

Main Features

1. Adopting infrared detector with low noise, high sensitivity and high stability;
2. Modular design of the whole machine, which improves the reliability of the instrument;
3. Automatic linking with electronic balance;
4. English operation interface, easy to operate and master;
5. Complete software that can perform more than forty functions like documentation assistance, system monitoring, channel selection, statistics, results correction, breakpoint correction and system diagnosis, etc.
6. Dynamic display of the data, and carbon and sulfur release curves during the analysis process;
7. Wide measuring linear range that can also be extended;
8. Imported electromagnetic valve to improve the reliability of the air system;
9. Stainless steel high-pressure tubular furnace with its temperature digital displayed;
10. Highly-efficient aluminum alloy dust collector.

Main Technical Parameters:

• Measuring range: Carbon ω (C) 0.001% -6.0000% (can be extended to 99.999%); Sulfur ω (S) 0.0005% -0.3500% (can be extended to 99.999%)
• Analysis error: Carbon: better than GB/T223.69-1997 standard
• Sulfur: better than GB/T223.68-1997 standard
• Analysis time: 25-60 seconds Adjustable, generally about 35 seconds
• Electronic Balance: Weighing range :0-300g
• Reading Accuracy: 0.001g
• Work environment: Room temperature :10-30 ºC
• Relative Humidity: less than 75%
• Power: good grounding
• Voltage: AC220V ± 5%
• Frequency: 50Hz ± 2%

Configuration:

Item Name	Model	Qty	Unit
Carbon & Sulfur Analyzer	EA-CS-8620	1	PC
High-speed Auto Ignition furnace	WI-H86B	1	PC
Analyzer Balance	Sartorius 0.001g	1	PC
Controlled Computer	Dual-core processor / 120G hard drive processor / internal / 19 inch LCD Monitor	1	Set
Printer	HP	1	PC
Accessories	/	1	Set
