• Model NO.：IRCD4
• OEM：Gas, Function, Program, Case
• Transport Package：Neutral
• Specification：0.5kg per product
• Trademark：Shiantech
• Origin：Beijing China
• Production Capacity：10000000PCS Per Month

Basic Info.

Model NO. IRCD4 OEM Gas, Function, Program, Case Transport Package Neutral Specification 0.5kg per product Trademark Shiantech Origin Beijing China Production Capacity 10000000PCS Per Month

Product Description

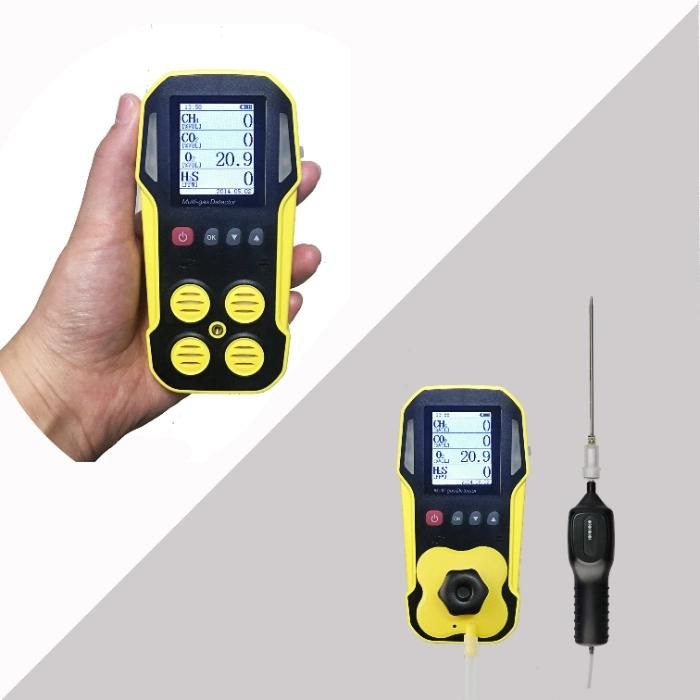

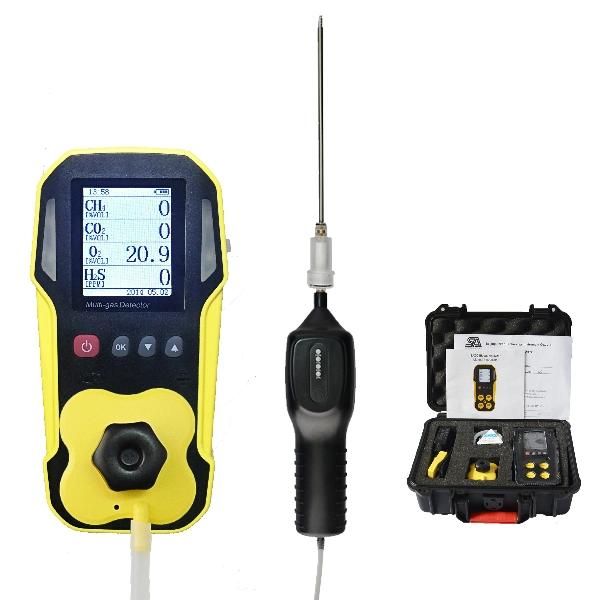

IRCD4 Biogas analyzer from portable biogas detector manufacturer with gas sampling pump






1.  Application
CH4, CO2, H2S, O2 Portable Biogas Gas Analyzer is extensively used in petroleum, petrochemistry, chemical industry, gas, coal, metallurgy and power system;safety detection in municipal administration, communication and traffic tunnel construction; electronics and semiconductor industry, animal husbandry, biogas plant & biogas digester and other places where toxic and harmful gases exist.



IRCD4 biogas detector can be also used in food & beverage industry, agriculture, medical industry, lab, etc for related gas analysis.

2. Specification

Gases detected	CH4, CO2, H2S, O2
Measuring range	CH4: (0-100)%vol CO2: (0-100)%vol H2S: (0~1000) ppm O2: (0~30.0)%vol
Resolution ratio	CH4: 0.01%vol, CO2: 0.01%vol,  H2S: 1ppm, O2: 0.1%vol
Sensor	Infrared sensor and electrochemical sensor
Sensor lifetime	≥5years( CH4, CO2)  ≥2years( H2S, O2)
Response time	CH4: ≤45S ( T90 ) CO2: ≤45s (T90) H2S: ≤45s (T90) O2: ≤35s (T90)
Alarms	Audible--buzzer with ≥80dB audible Visible--flashing red LED, ≥20m visible
Alarm point	Fully adjustable
Data logging (optional)	Continuous Data logging (1900 events at configurable 0.1-10 minutes intervals)
Continuous working time	≥13hours
Display	Liquid Crystal Display(LCD)
Battery model	PL123450, 3.7V/1500mA
Charging time	4-5 hours
Dust and water resistance	IP65
Size & Weight	130*66*30mm, 250g
Ex sign	Exibd I



3. Product Features:

1. Handheld, industry use, high sensitivity and accuracy

2. Intrinsically safe, Ex sign is ExibdI

3. Rugged ABS+PC case, heavy duty, crash resistant

4. High-capacity chip, 4 layers PCB board

5. Visual & audible alarm

6. High & low alarm point, fully adjustable

7. Low battery alarm

8. Rechargeable battery

9. LCD large screen display with Real time clock and status of battery

10. With Stainless Steel belt clip

11. Support data logging function

12. External air sampling pump is available for gas leak detection.

13. Multi gas detector can be made for any 2-5 gases in any combination.



Standard accessory:

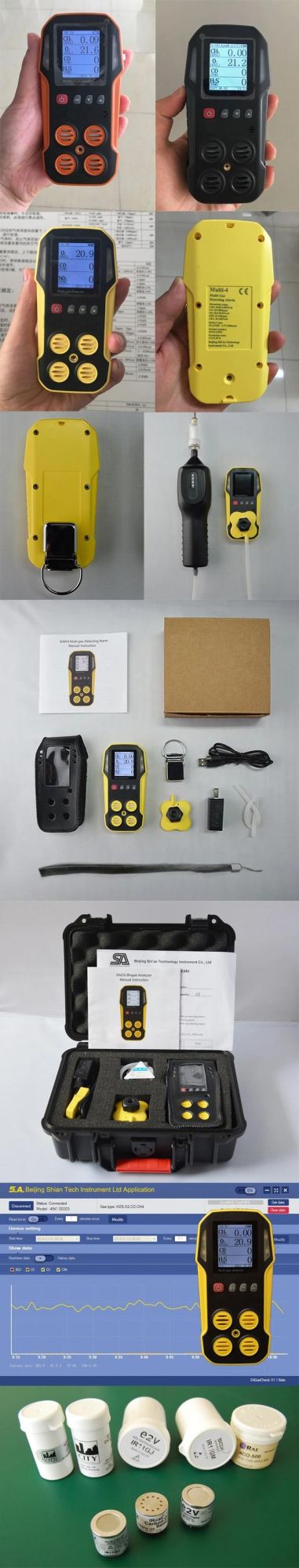

USB extension cord, charging adapter, calibration cap, calibration hose, stainless steel alligator clip, hanging cord, leather case, manual

Optional accessory:

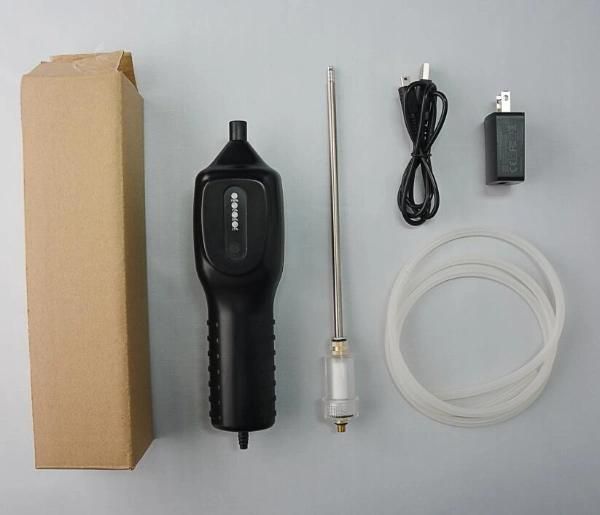

External gas sampling pump, professional suitcase, data logging function





Beijing Sh'an Technology Instrument Co., Ltd is a manufacturer in Beijing, China. It focuses on gas detection products from designing, engineering, programming, molding to assembly, testing, calibration and maintenance.



Shiantech is ISO9001 approved and SGS audited and we have Ex certificate, safety certificate and CE certificate for our portable gas detection products.



ODM and OEM are always welcomed and tailored products and solutions are the essential and ultimate goal we are ready to deliver to our esteemed customers.
