• Model NO.：ZDYG-2088Y
• Trademark：BOQU
• Origin：Shanghai, China
• HS Code：9027809900
• Production Capacity：50, 000 Set,Month

Basic Info.

Model NO. ZDYG-2088Y Trademark BOQU Origin Shanghai, China HS Code 9027809900 Production Capacity 50, 000 Set/Month

Product Description

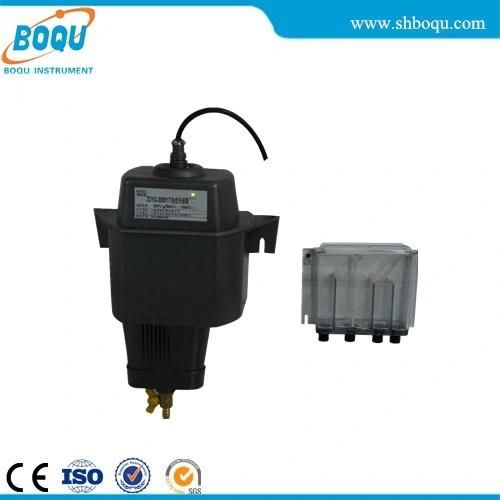

ZDYG-2088y Industrial Online Turbidity Electrode

1. Measuring range: 0-3000NTU
2. Power supply: DC12V±10%
3. Current draw: At regular operation:30mA(Max),           At cleaning operation:240mA(Max) (excluding analog signal output)
4. Output: Analog(4-20mA) signal output: resistance load of 300Ω(Max)
         4mA: 0 FTU
        20mA: 100 FTU(100NTU),500FTU(500NTU),3000FTU(3000NTU)
        Self-checking output: open collector(12VDC 20mA Max.)
5. Input: calibration signal input
6. Cleaning system: both sided swing wiper cleaning system
7. Time interval for cleaning: clean once immediately after power-on, and subsequently clean once every 30 minutes; clean once immediately after power-on, and subsequently clean once every 10 minutes
8. Operating Temperature: 0-40ºC(unfrozen)
9. Major Material: SUS 316L, sapphire glass, fluorocarbon rubbed, EPDM, POM
10. Dimensions: Φ 32 x163mm(exchange hanging attachment)
11. Weight: approx 930g
12. Degree of Protection: IP68, maximam depth of meters(underwater type)
13. Detector cable length: 10m
