• Model NO.：NL-5
• Wind Direction Range：0-359°
• Rainfall Range：0-4mm,Min
• Light Intensity Range：0-200000lux
• Wind Speed Range：0-45m,S
• Transport Package：Satandard Export Package
• Specification：Weather Station
• Trademark：WEST TUNE
• Origin：China
• HS Code：9015800090
• Production Capacity：100set,Month

Basic Info.

Model NO. NL-5 Wind Direction Range 0-359° Rainfall Range 0-4mm/Min Light Intensity Range 0-200000lux Wind Speed Range 0-45m/S Transport Package Satandard Export Package Specification Weather Station Trademark WEST TUNE Origin China HS Code 9015800090 Production Capacity 100set/Month

Product Description

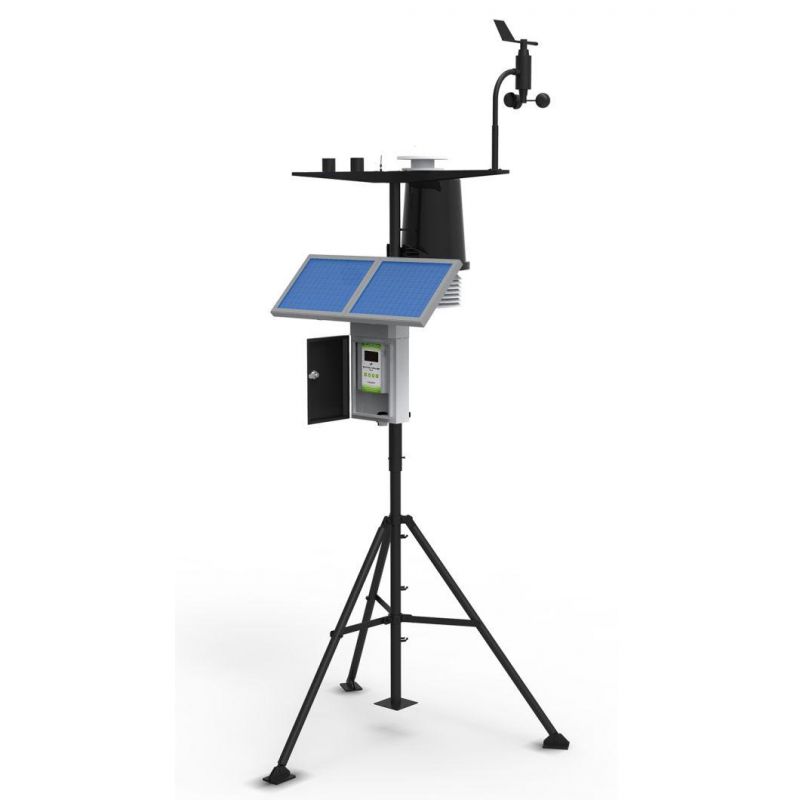

NL-5  Weather Monitoring Station

Standard Sensors equipped are:

• Air temperature and humidity;
• Light intensity;
• Rainfall;
• Wind speed and Direction;

Characteristics:

• Real-time display sampling date and time, temperature, humidity, Wind direction and speed, rainfall etc.
• Data collected automatically.
• PC software available, data can be printed.
• Data visualization on Chart or Excel.
• GPS function

Technical Parameters of the controller:

• Solar power supply: 10WP
• Standby power: DC-9V/ 1A
• Watt: ≤ 1.5W
• Capacity: 1M (local storage) + 4G (SD CARD)
• Waterproof rate: IP54

Technical parameters:

Temperature	range:-40°C-120°C accuracy:±0.4°C resolution:0.1°C	Rainfall	range:0-4mm/min accuracy:±0.1mm resolution:0.1mm
Humidity	range:0-100%RH accuracy:±3%RH resolution: 0.1%RH	Light intensity	range: 0-200000LUX accuracy:±2% (0-200000lux) resolution: 1LUX
Wind Direction	range:0-359° accuracy:±3°	Wind Speed	range:0-45m/s accuracy:±(0.3+0.03v)m/s

We are a specialized agricultural equipment supplier in China with 20+years experience.
Our main instruments: Fruit hardness tester, Seed divider, Eating oil test machine, Pesticide residue detector, Kjeldahl apparatus, Grain moisture analyzer, Artificial climate chember and so on.
